Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Service and Repair >> AR91.60-P-0693M Remove/Install Window Airbag

AR91.60-P-0693M Remove/Install Window Airbag



AR91.60-P-0693M Remove/Install Window Airbag


Illustrated On Model 220:

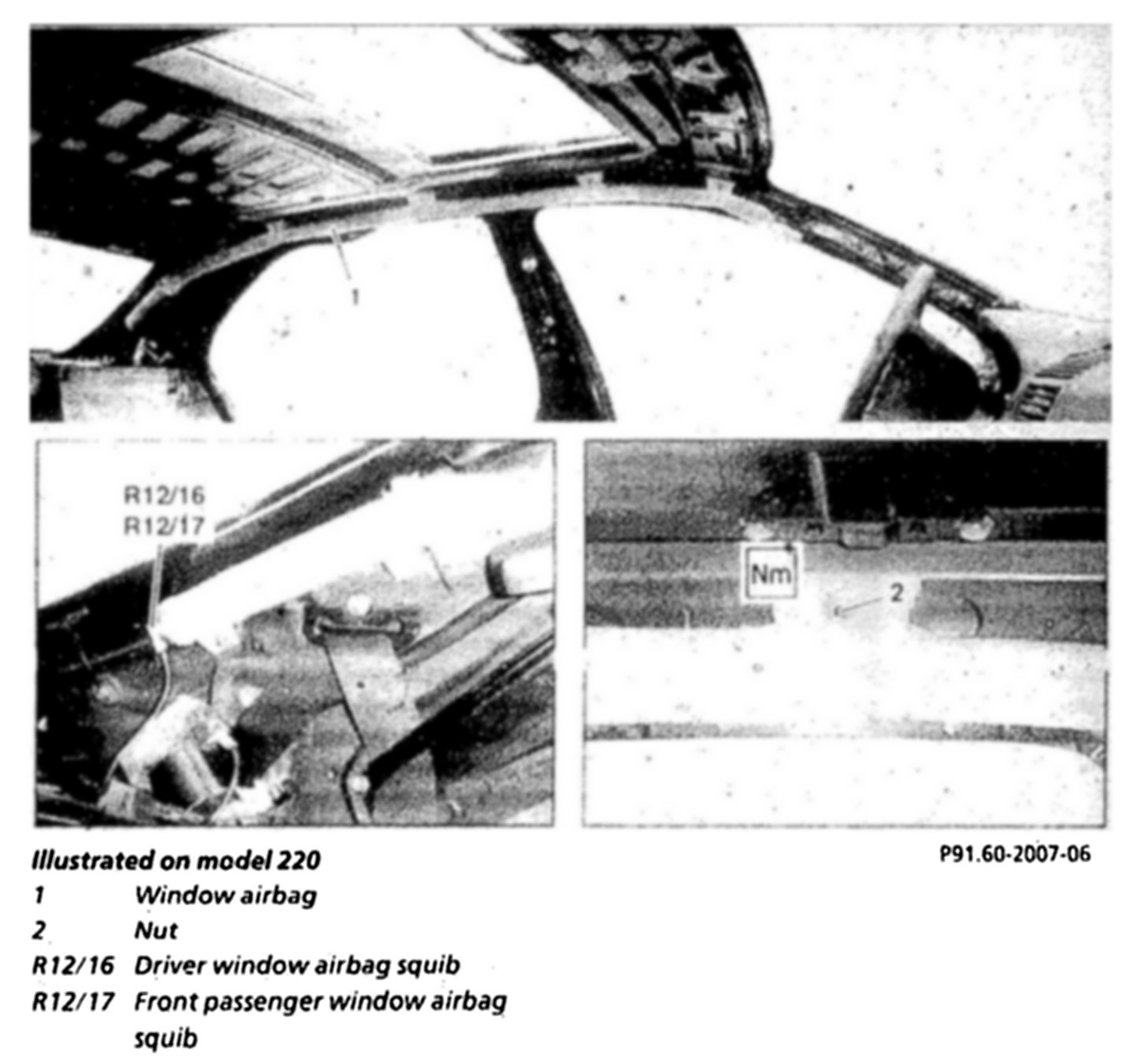

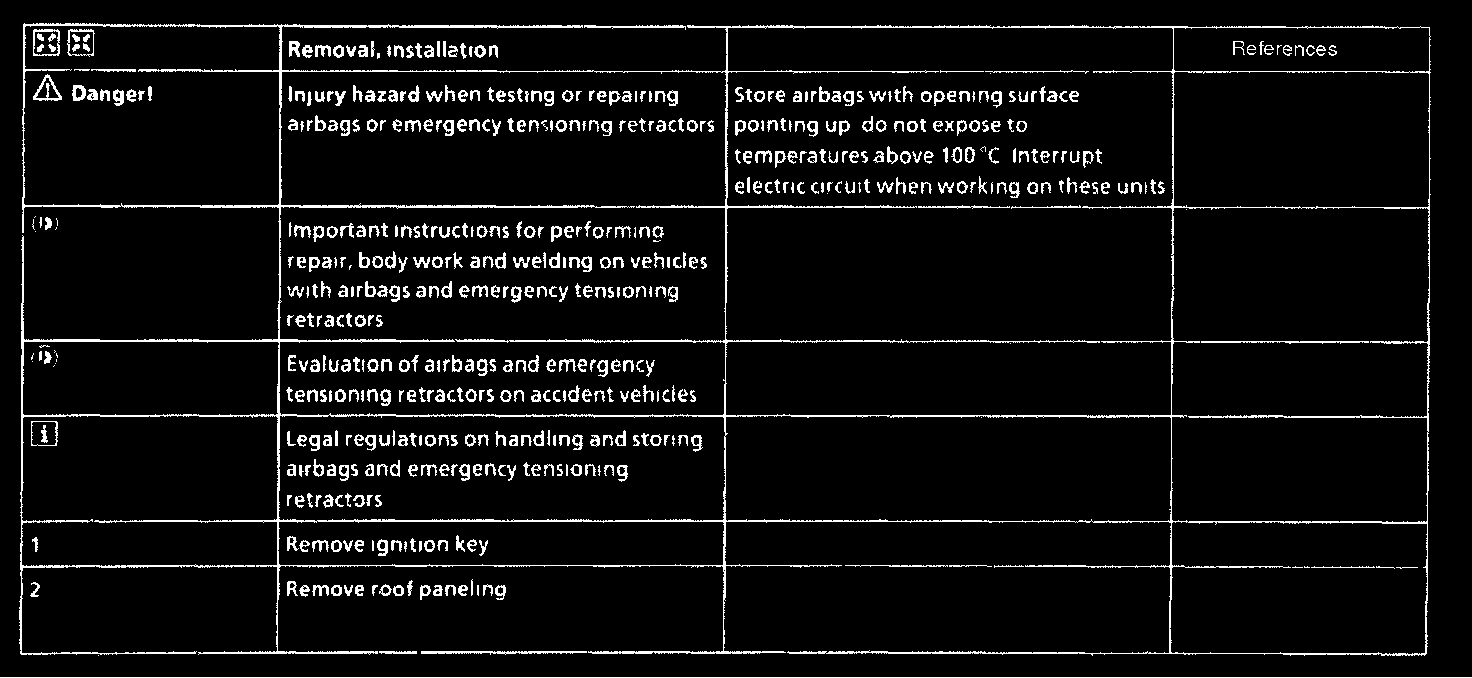

Removal/Installation, Steps 1 - 2:

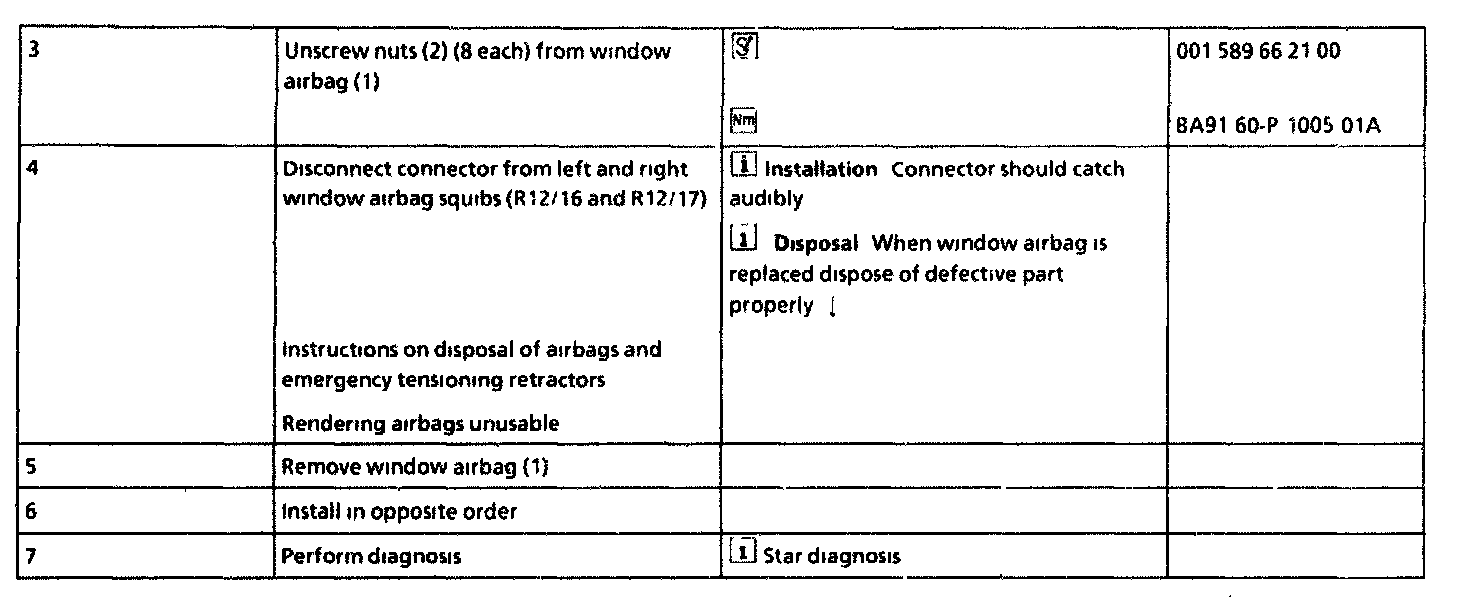

Removal/Installation, Steps 3 - 7:






References (BA), Airbag:

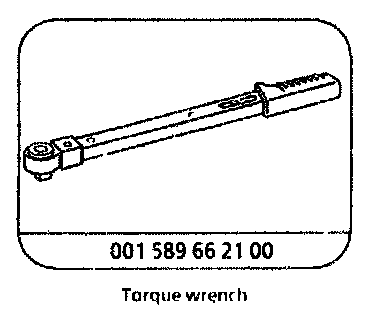

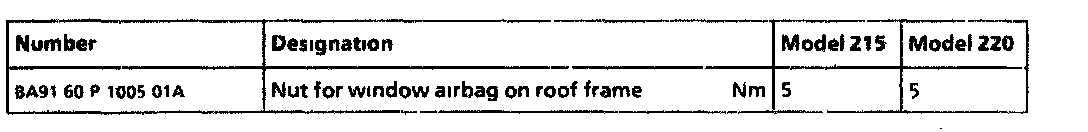

References, Special Tools:
