FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2002
>>
S 500 (220.175) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Air Bag
>>
Service and Repair
>>

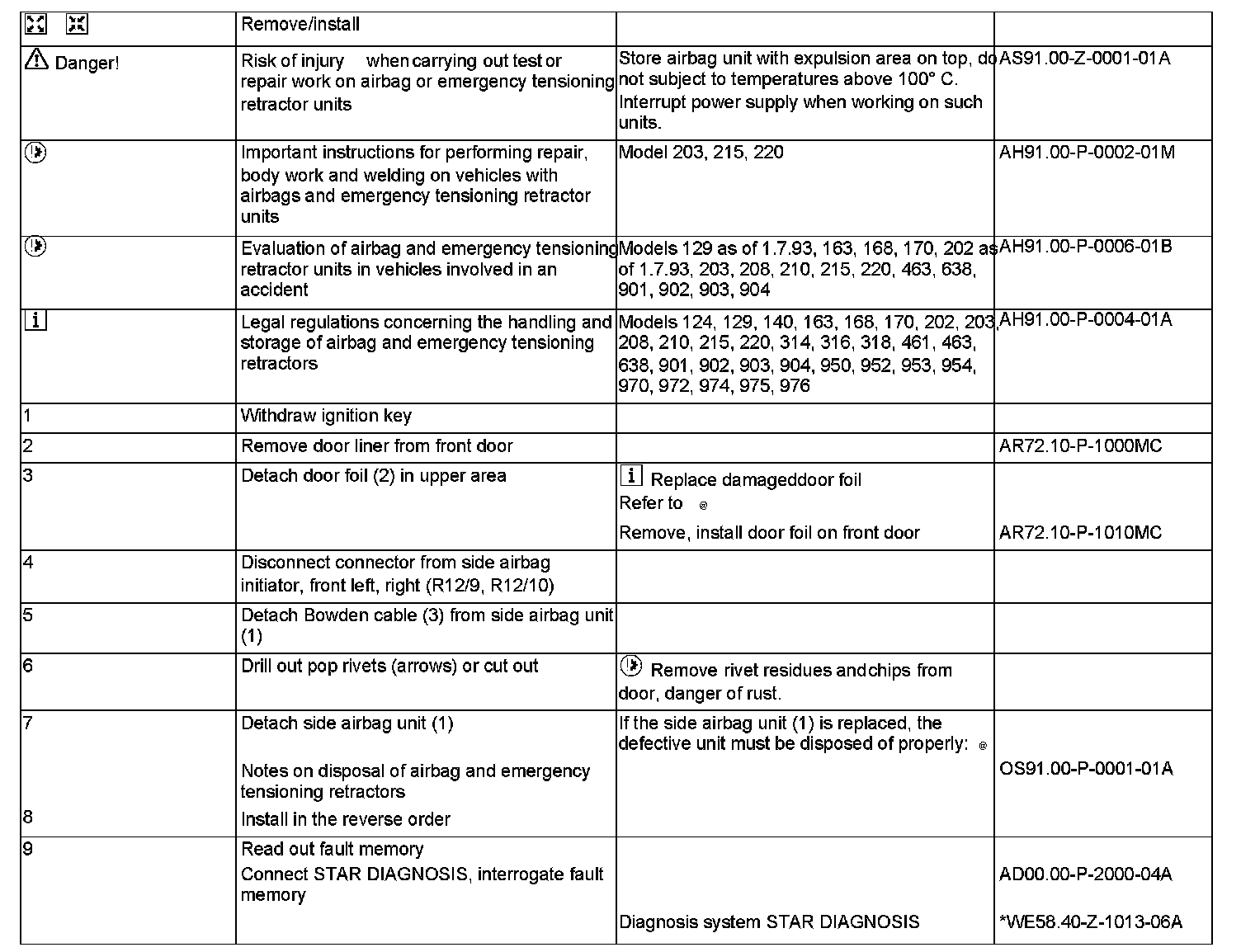

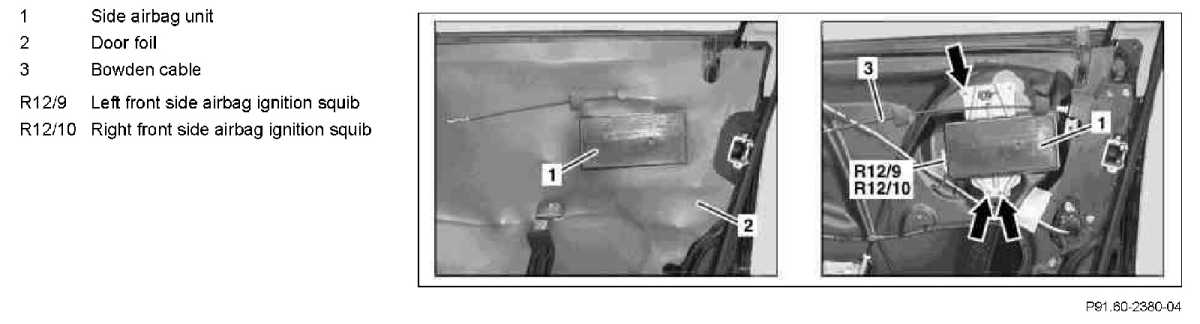

AR91.60-P-0690MC Remove/Install Front Door Side Airbag Unit
AR91.60-P-0690MC Remove/Install Front Door Side Airbag Unit
AR91.60-P-0690MC Remove/Install Front Door Side Airbag Unit
- with CODE (Z04) Light armoring
