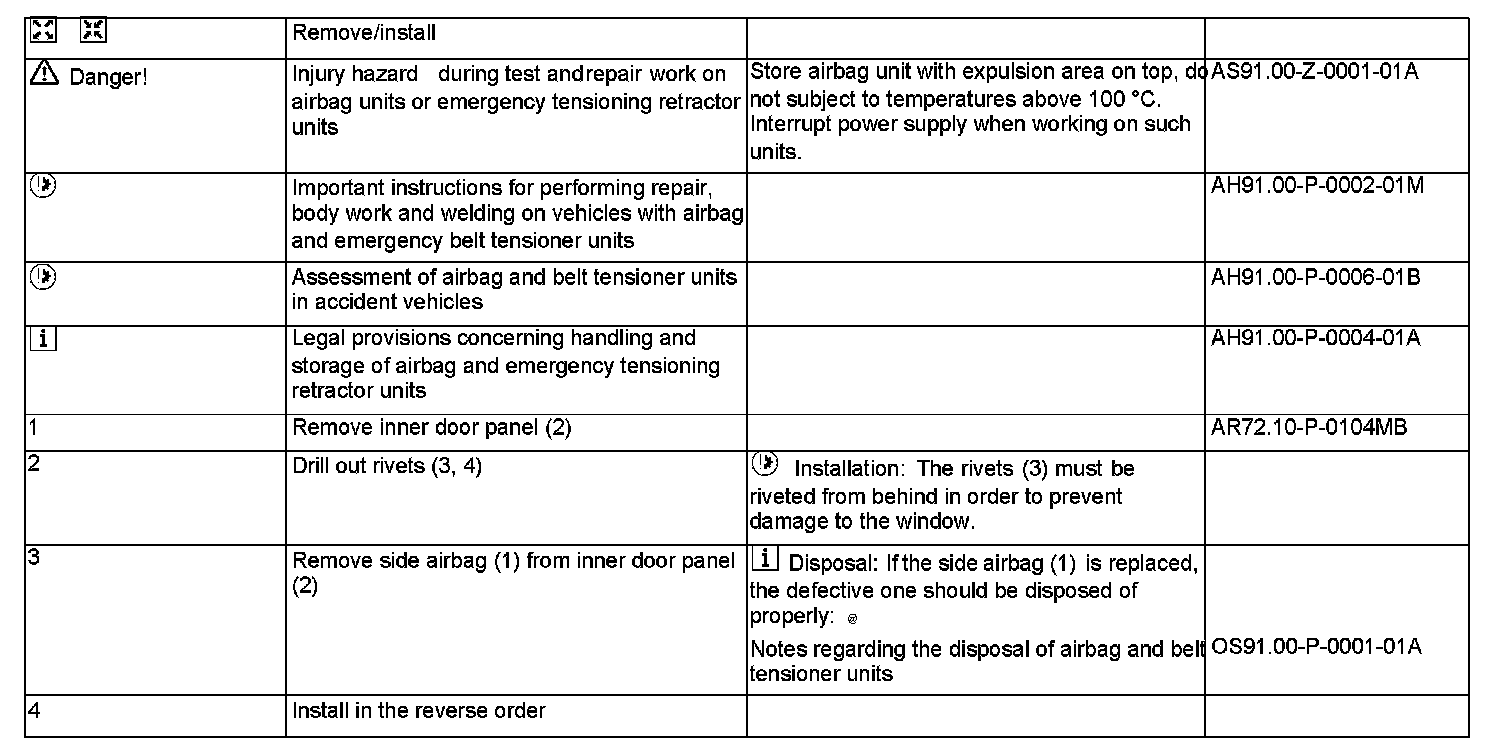

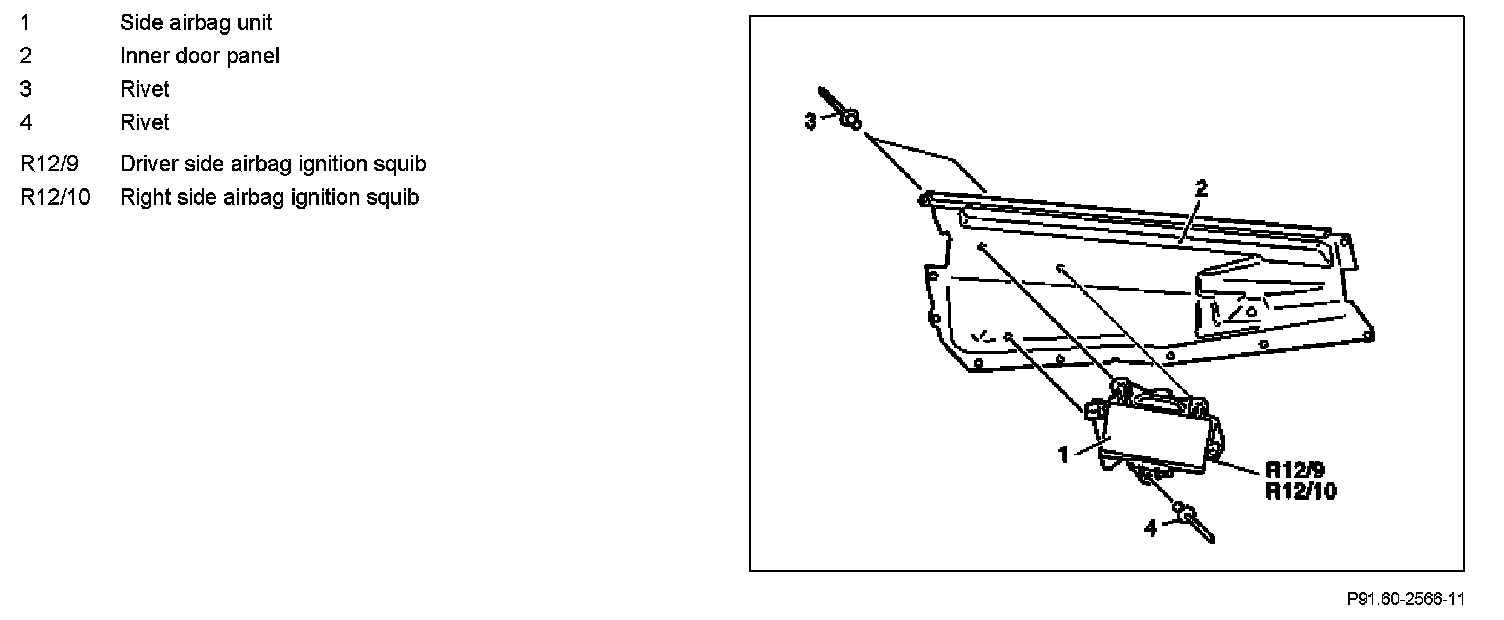

AR91.60-P-0690MB Remove/Install Front Door Side Airbag Unit
AR91.60-P-0690MB Remove/Install Front Door Side Airbag Unit
AR91.60-P-0690MB Remove/Install Front Door Side Airbag Unit
- with CODE (Z07) Top protection
