AR91.60-P-0690M Remove/Install Front Door Side Airbag



AR91.60-P-0690M Remove/Install Front Door Side Airbag

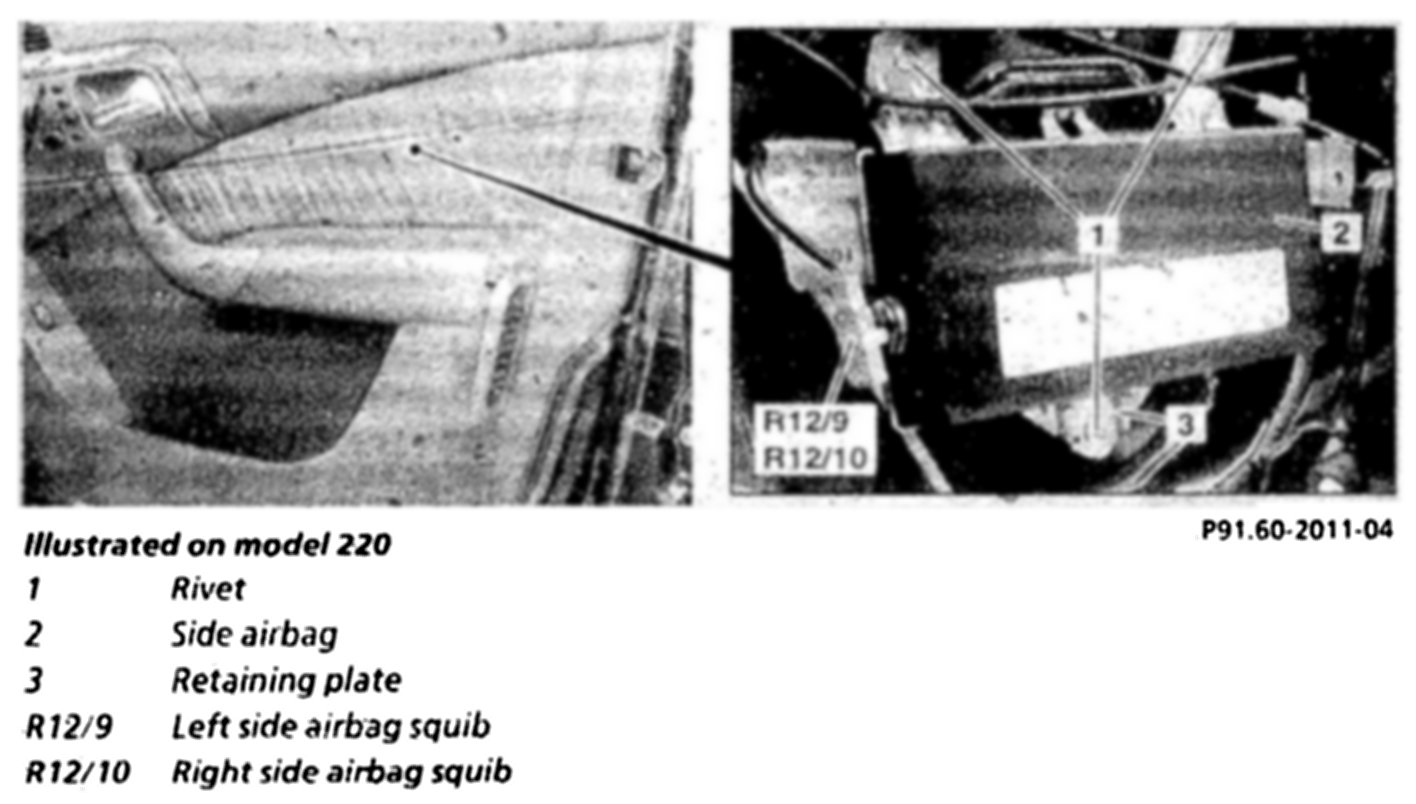

Illustrated On Model 220:

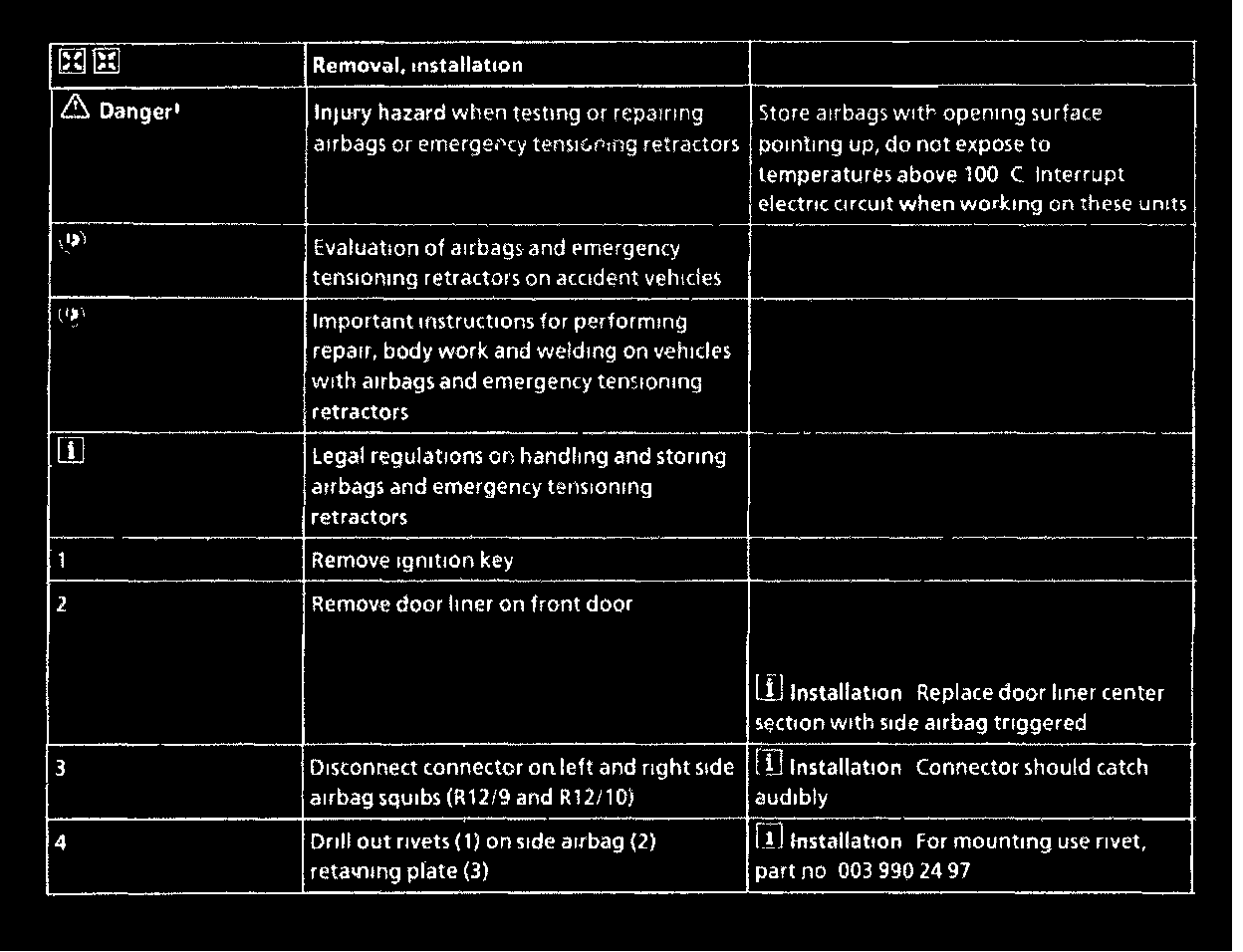

Removal/Installation, Steps 1 - 4:

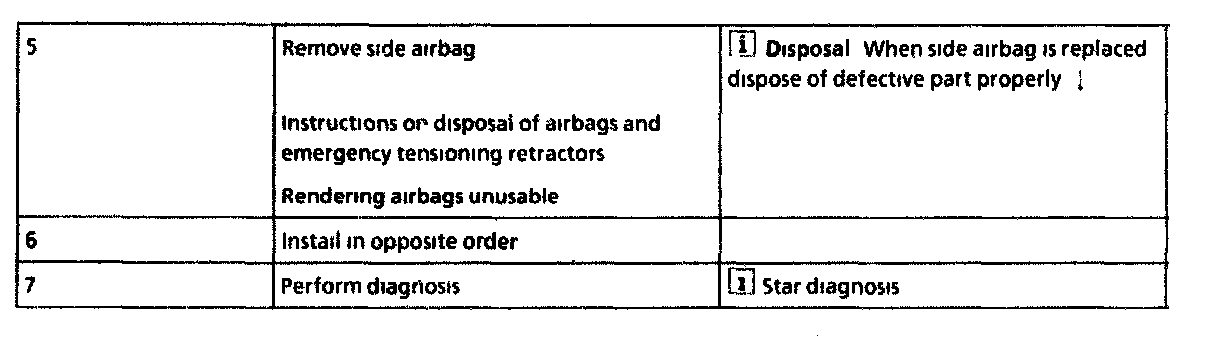

Removal/Installation, Steps 5 - 7:
