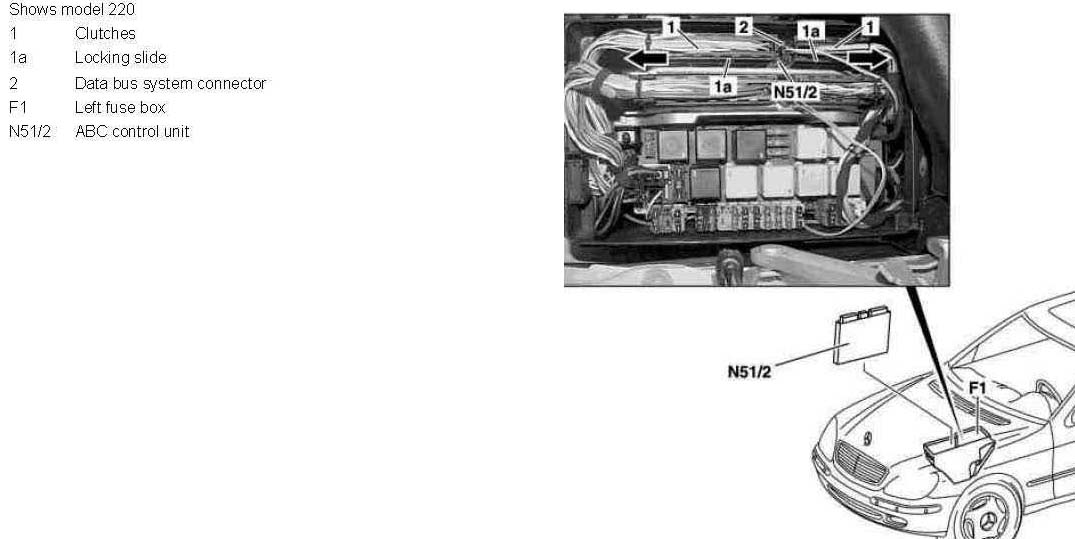

AR32.50-P-0023I Remove/Install Control Unit (ABC) Active Body Control
AR32.50-P-0023I Remove/Install Control Unit (ABC) Active Body Control
AR32.50-P-0023I Remove/install control unit (ABC) Active Body Control

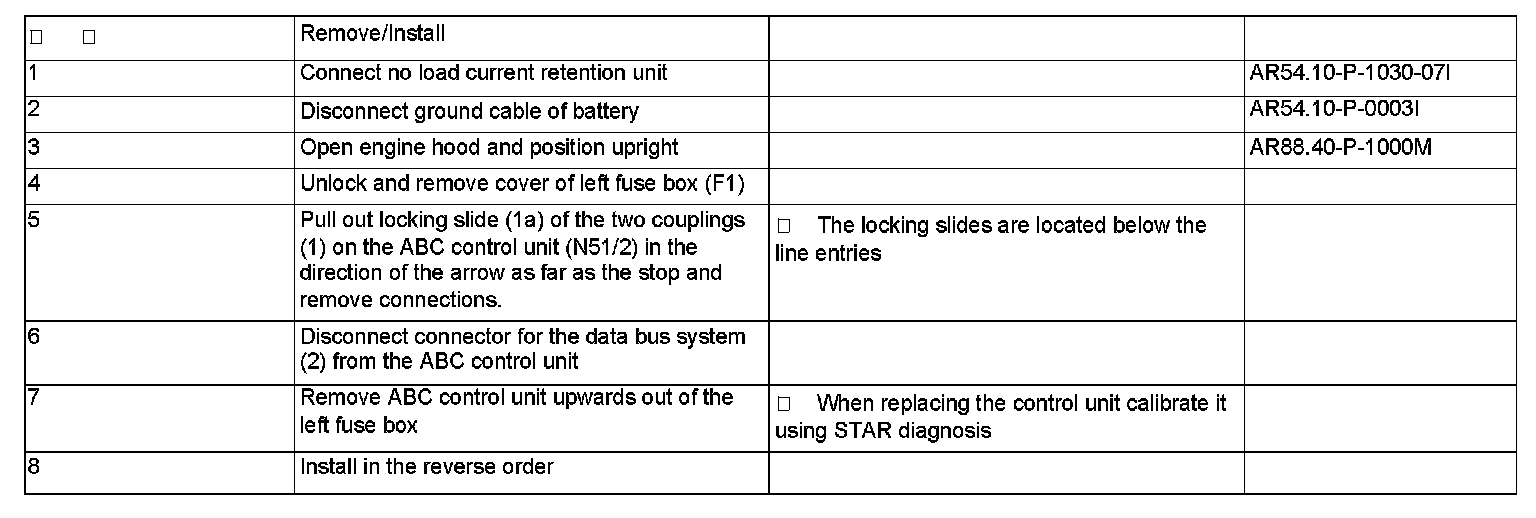

Steps 1-8:
