Steering Column Control Module: Service and Repair
AR54.25-P-2802I Remove/Install Steering Column Module

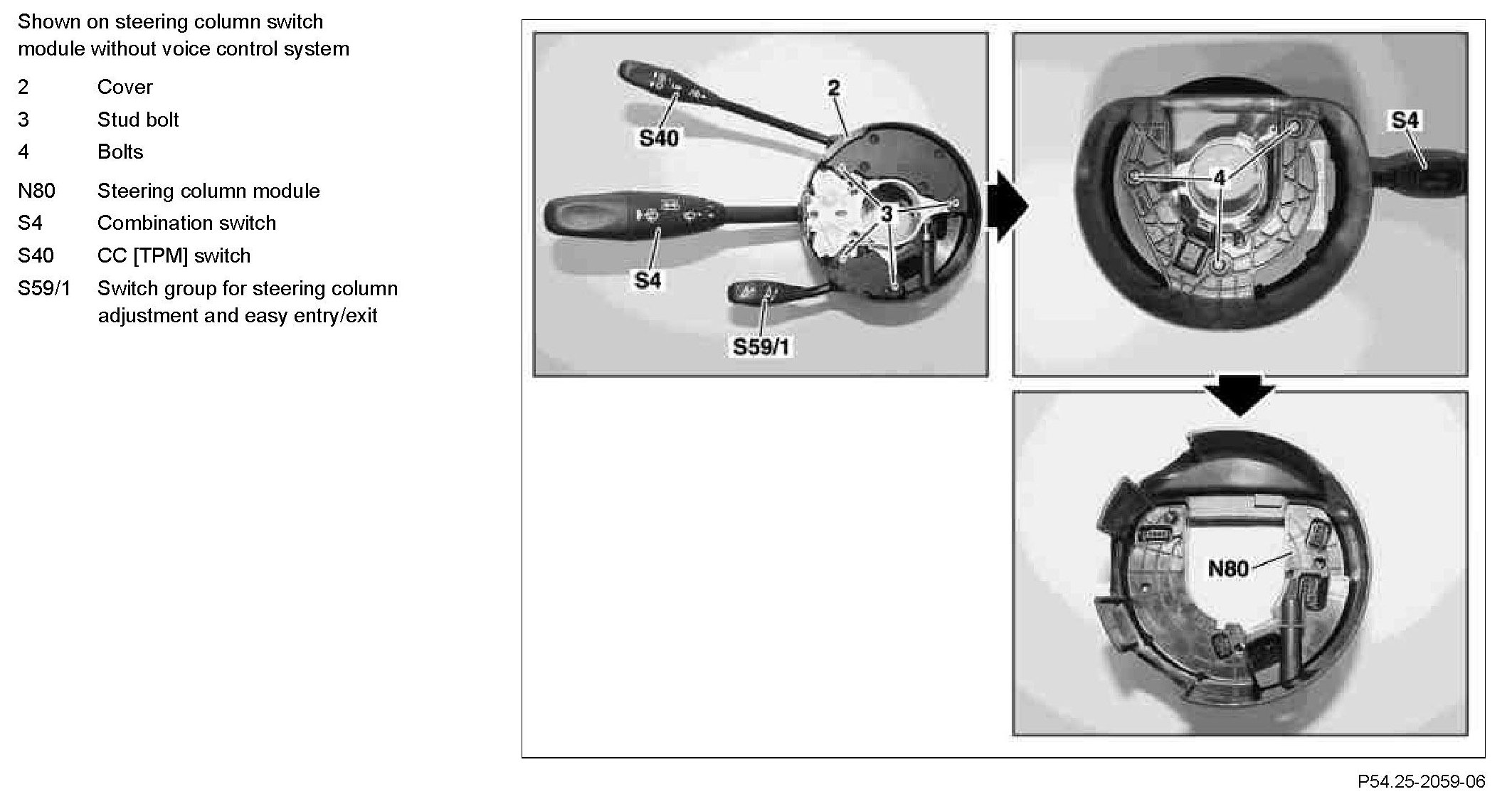

Component Identification:

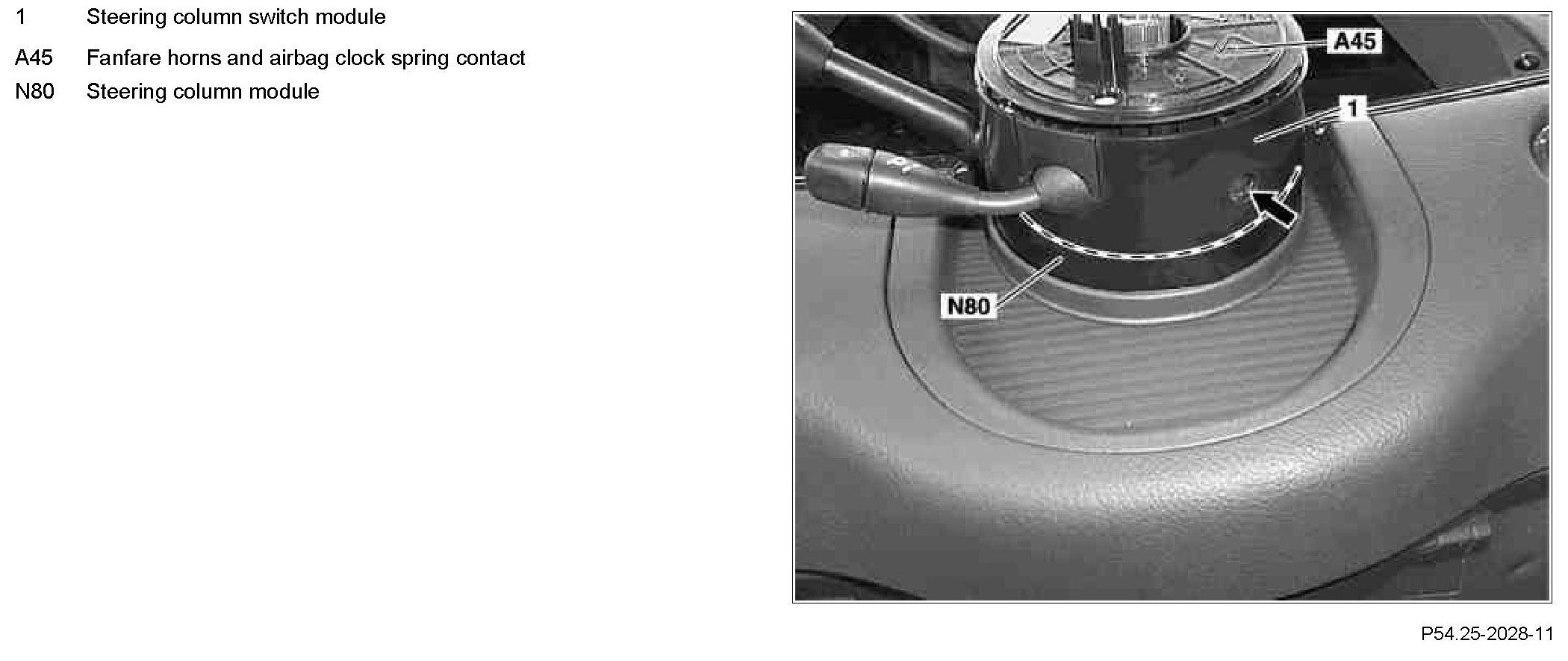

Component Identification:

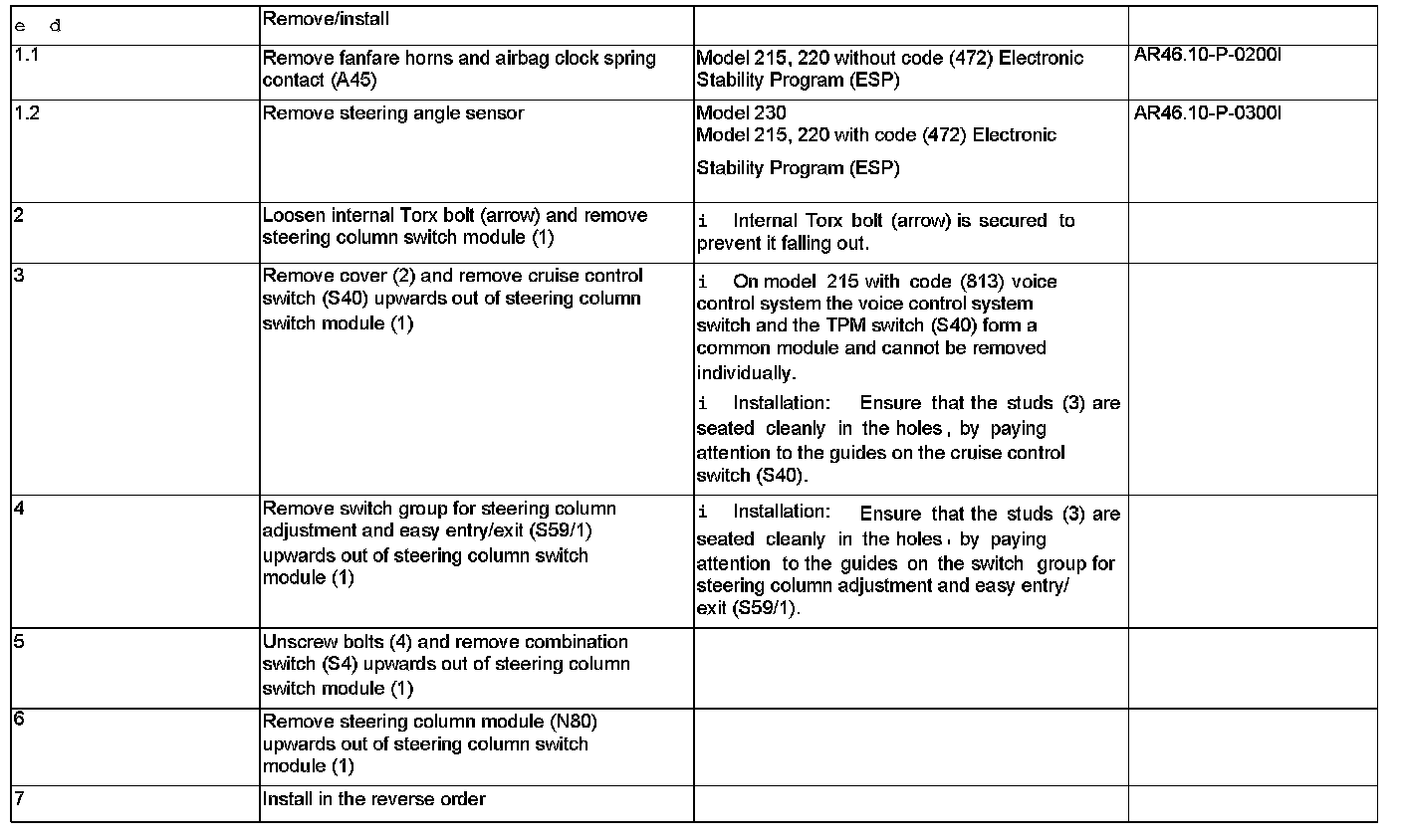

Steps 1.1 - 7:
