Interior Lighting Module: Locations

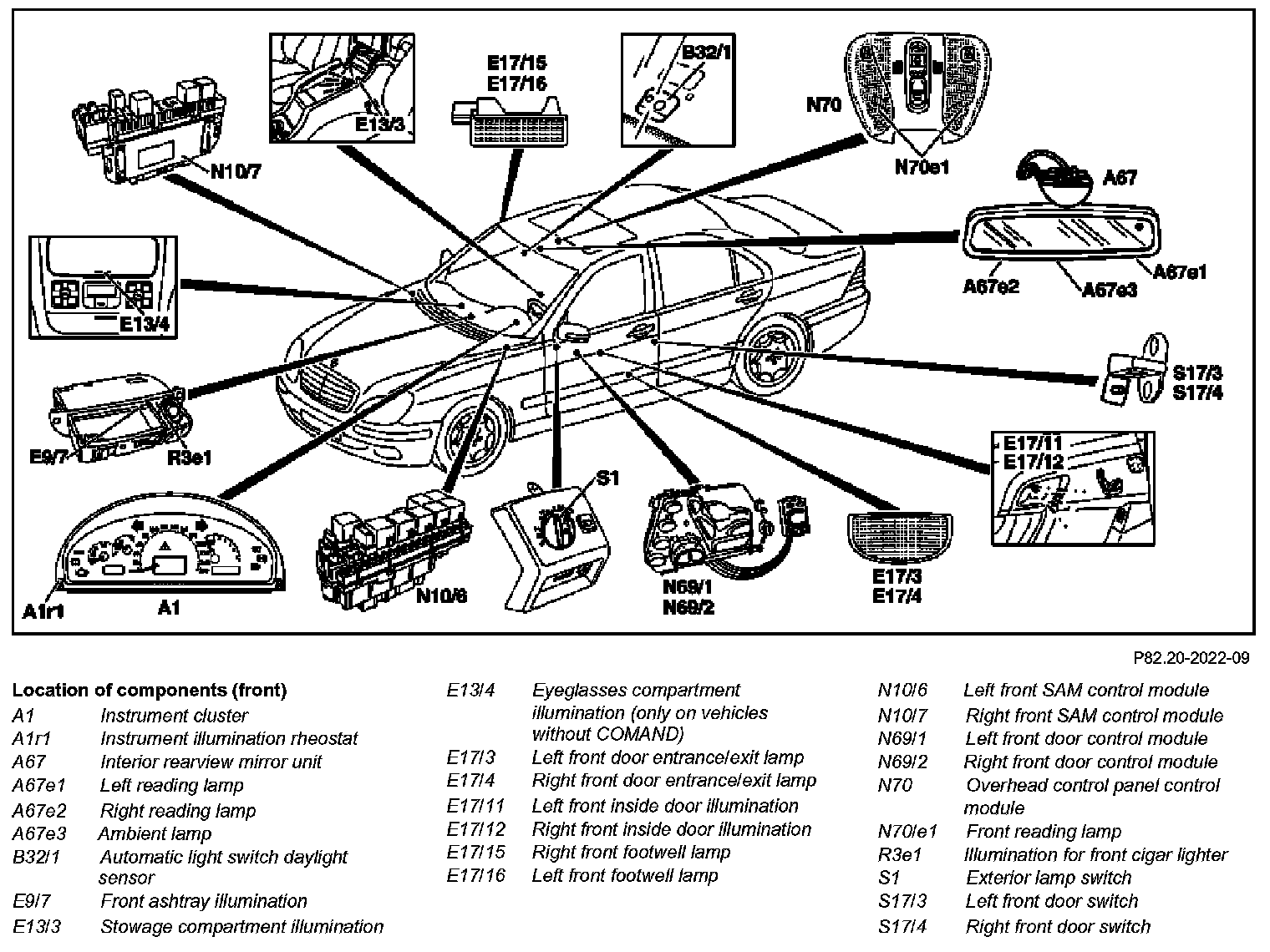

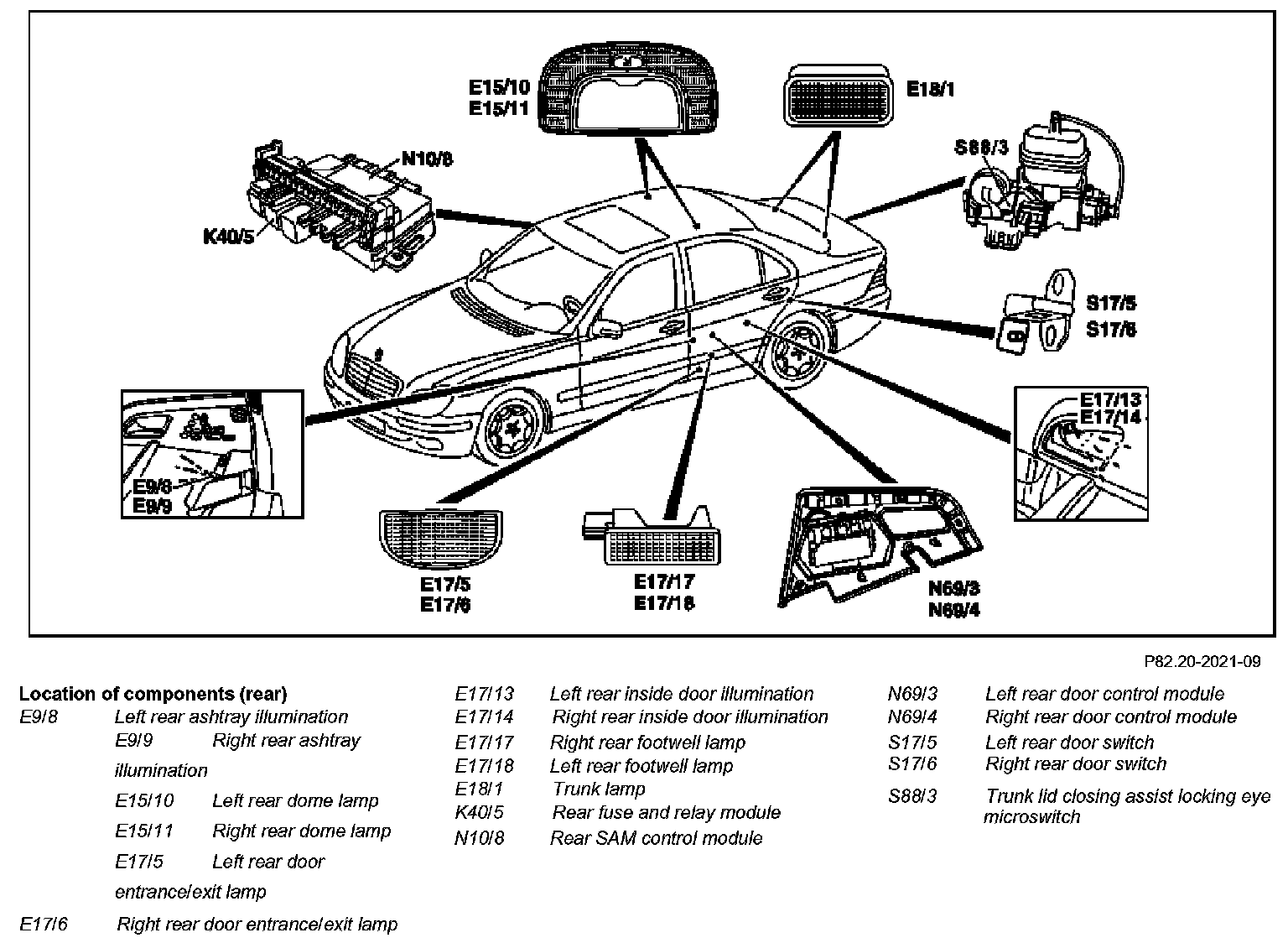

GF82.20-P-0002-01S Interior Lighting (IL), Location Of Components
