Instruments - 'Display Defective' Displayed/Lamps ON
Date: January 9, 2003Order No.: P-B-54.30/77
Supersedes:
Group: 54
SUBJECT:
Model 220, Model Years 2000 through 2003
Instrument Cluster Version Coding

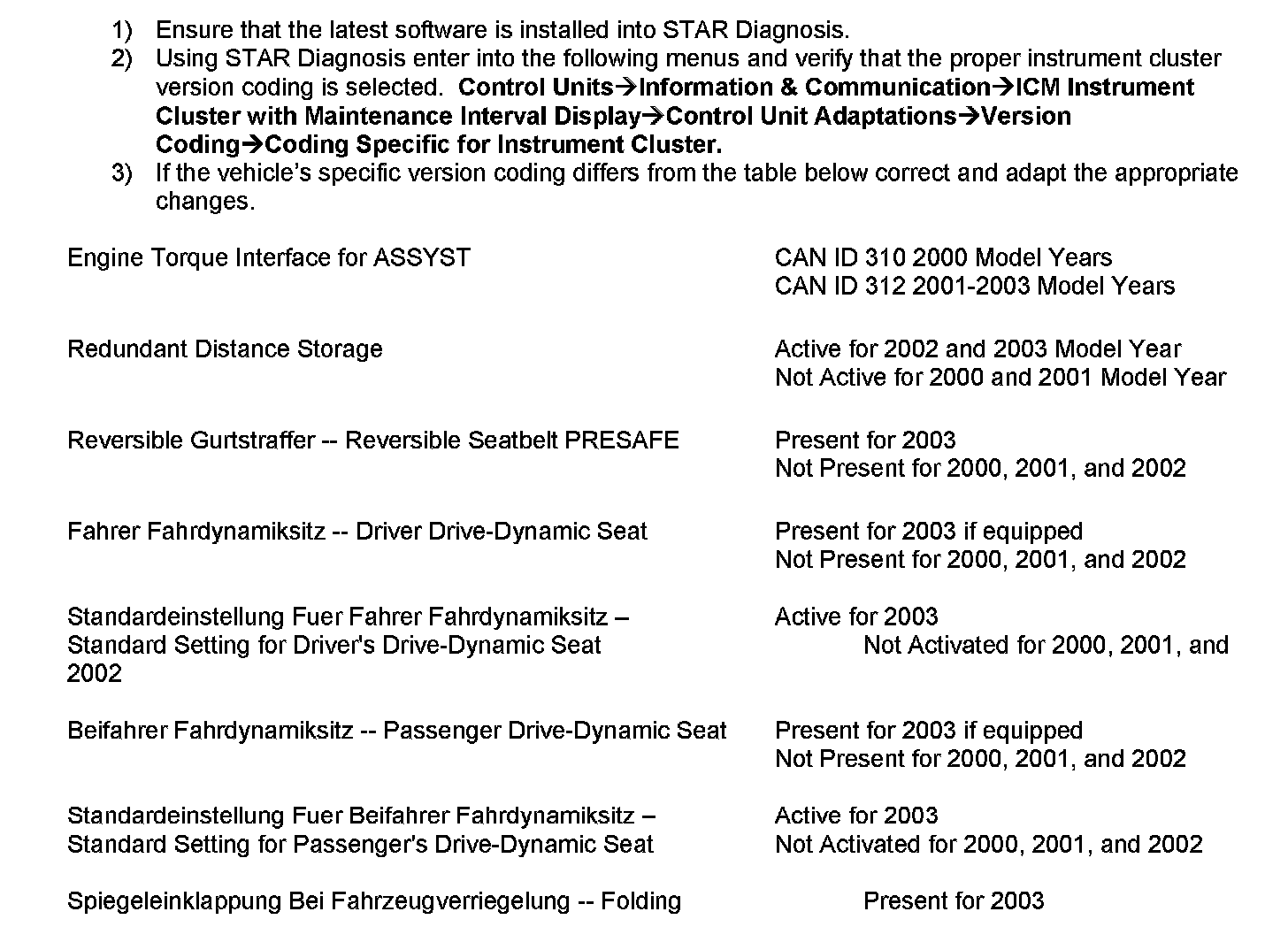

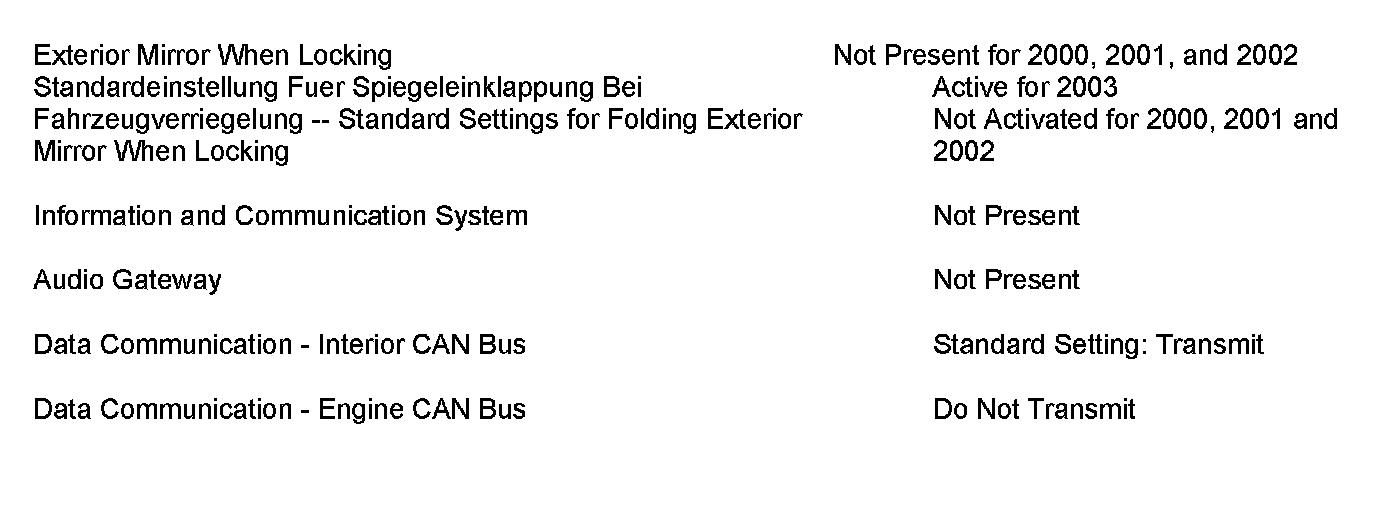

If you encounter "Display Defective" or diagnostic indicator lamps illuminated after the installation of an instrument cluster on the above-mentioned models, perform the following (see illustrations).
