Stepping Motor Electronics Control Module (N22/5)

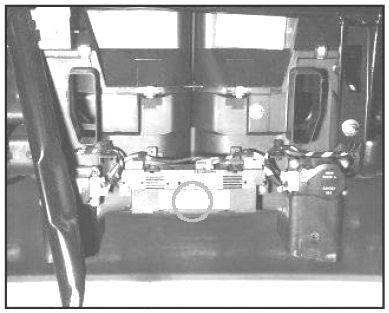

Component: N22/5
Stepping motor electronics control module

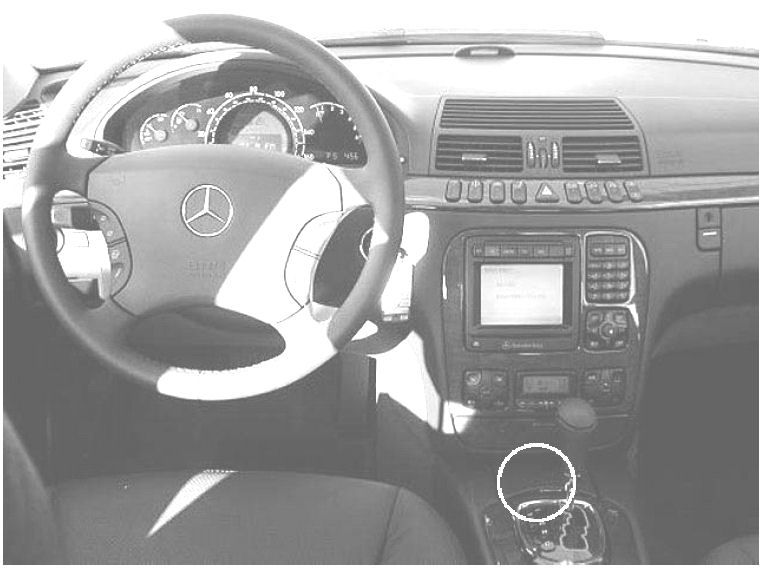

Location: center console, front (encircled)
