Traction Control Module: Service and Repair
AR54.21-P-0816I Removing and Installing Traction System Control Module

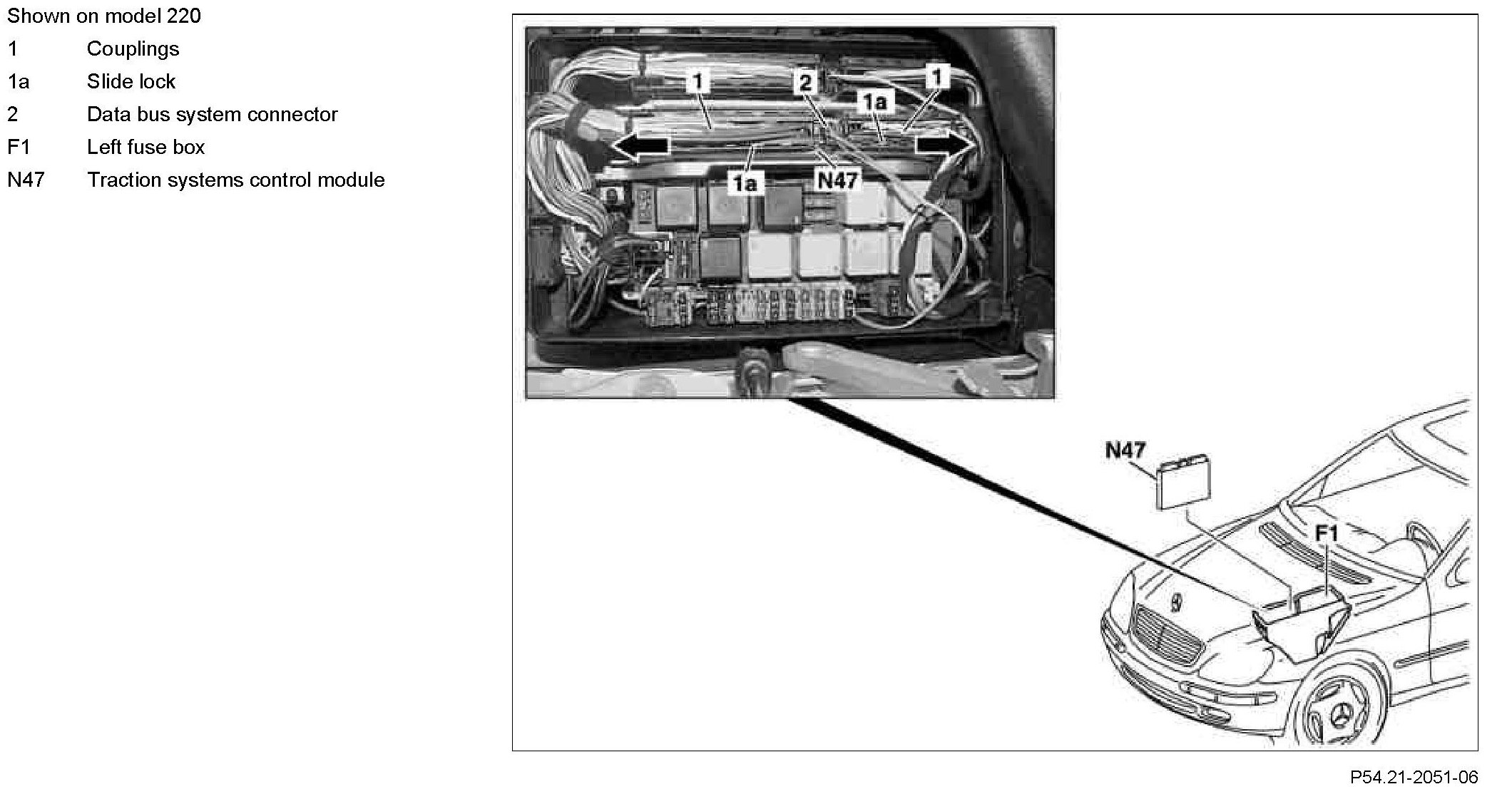

Component Identification:

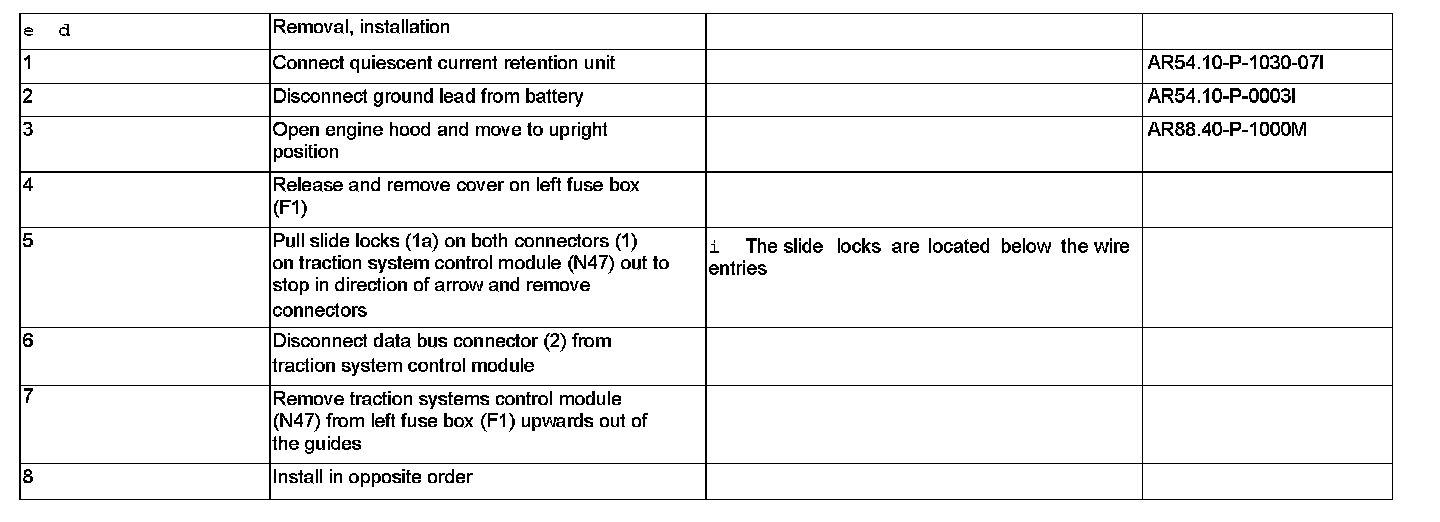

Step 1 - 8:
