AR72.29-P-1000M Remove/Install Front Door Control Module

AR72.29-P-1000M Remove/Install Front Door Control Module

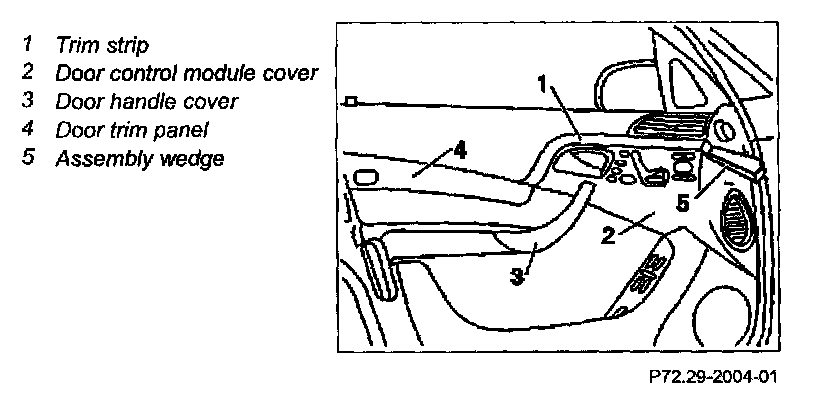

1 Press trim strip (1) out of door control module cover (2) off with assembly wedge (5)
- See "Special Tools" below.

2 Remove door handle cover (3) from door handle
3 Unscrew door control module finisher (2) from door liner (4) and press off with using assembly wedge (5)
- See "Special Tools" below.

4 Disconnect the connectors from left/right front door control module (N69/1, N69/2) and remove door control module cover (2)

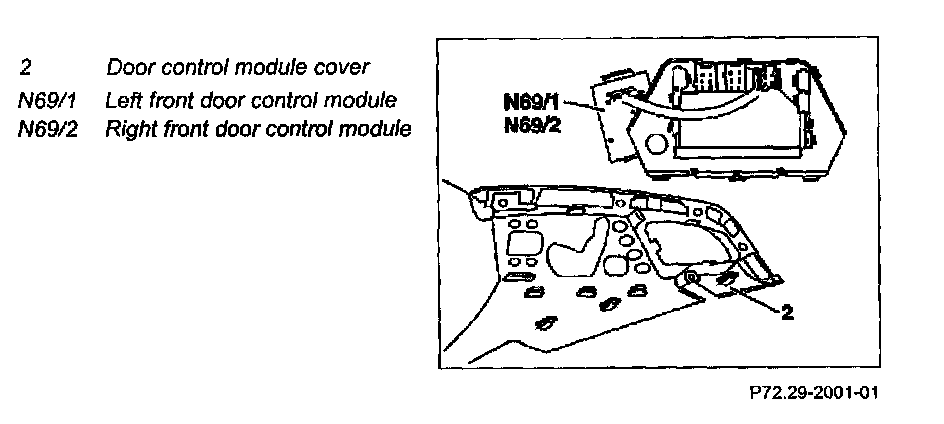

5 Unclip left/right front door control module (N69/1, N69/2) from door control module cover (2)

CAUTION: For this purpose, press mounting clips on left/right driver-side front door control module (N69/1, N69/2) together with suitable tool and simultaneously press left/right driver-side front door control module (N69/1, N69/2) off of door control module cover.

6 Install in reverse order.

Special Tools

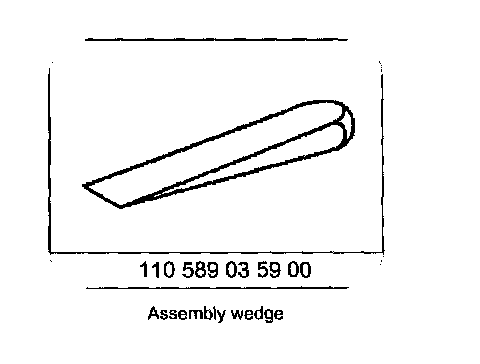

Assembly Wedge P/N # 110 589 03 59 00:
