AR31.19-P-1300I Removing and Installing Trailer Recognition Control Module



AR31.19-P-1300I Removing And Installing Trailer Recognition Control Module
- with CODE (550) Trailer coupling

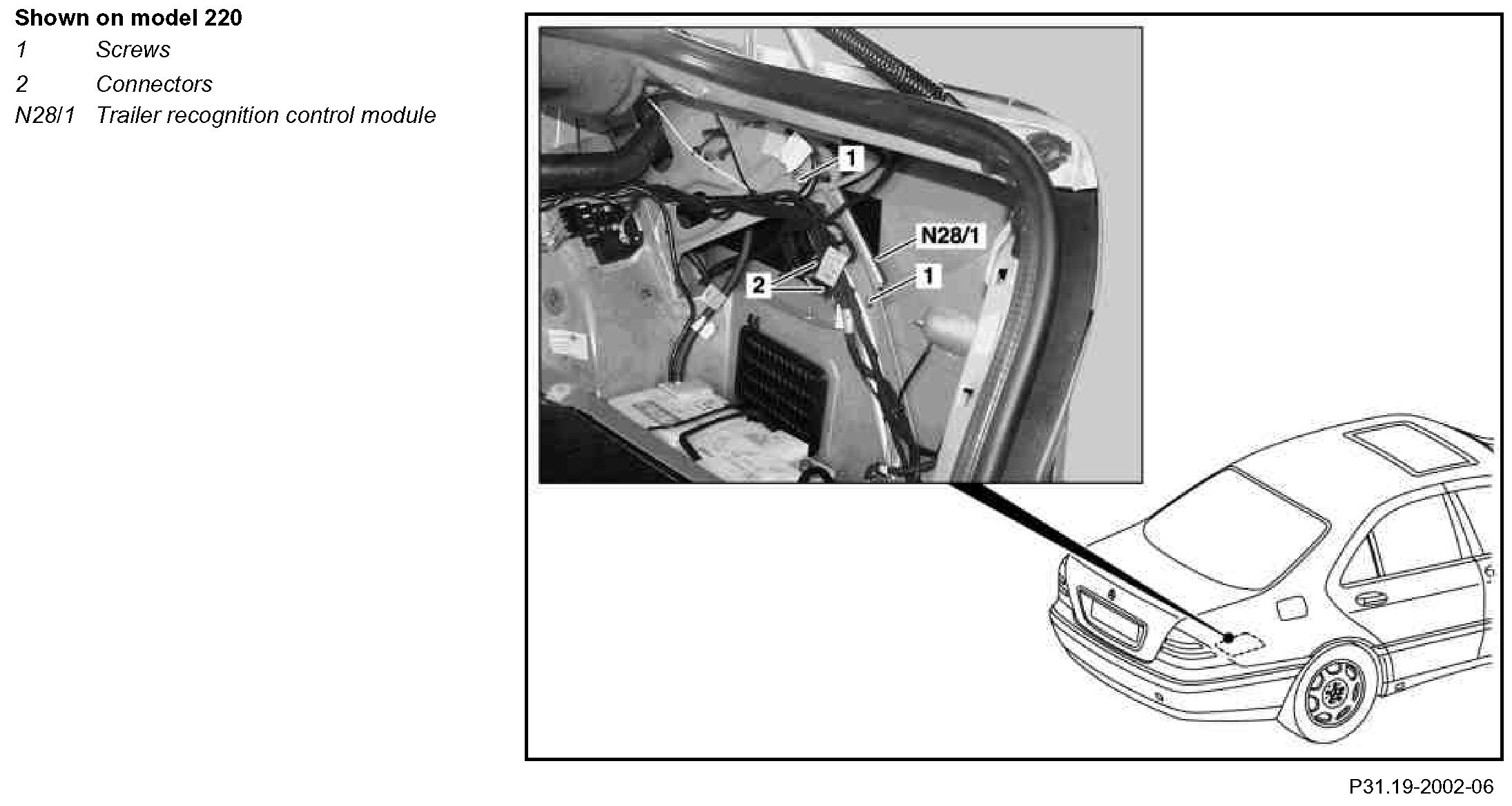

Component Identification:

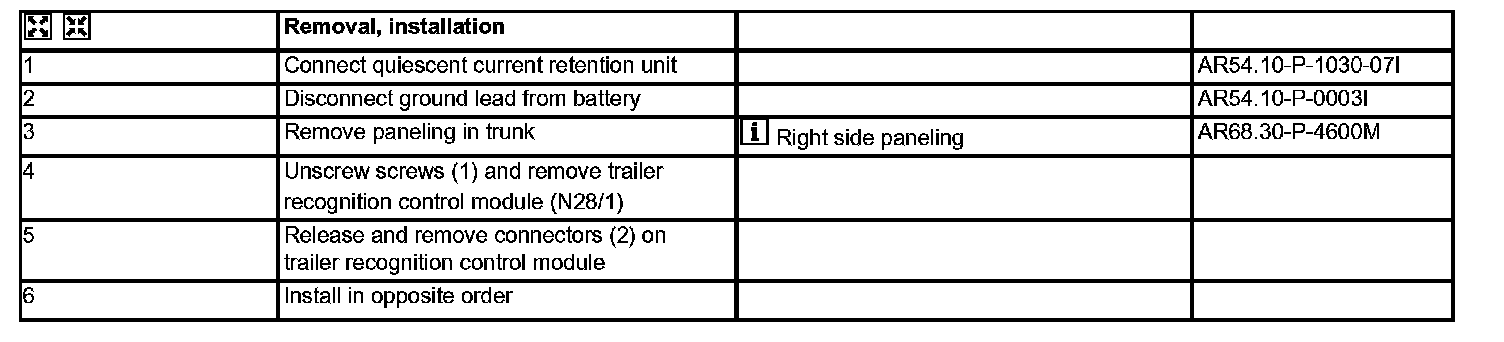

Steps 1 - 6:
