GF82.95-P-3005P Restraint System Control Unit Data, Function

GF82.95-P-3005P Restraint System Control Unit Data, Function

MODELS 203, 210, 220 up to 31.8.03
- with CODE (855) TELE AID
- with CODE (930) Taxi emergency call
MODELS 208.3, 215 up to 31.8.03
- with CODE (855) TELE AID

The D2B telephone and TELE AID transmitter/receiver (A35/17) receives the following messages from the restraint systems control unit (N2/7)
B1: Ready
B2: Test signal for operational check
B3: Front end collision, emergency tensioning retractor control unit activated
B4: Rear end collision, ETR activated
B5: Front end collision, airbag triggered
B6: Side collision, sidebag deployed
B7: Side collision, window bag deployed

After TELE AID has been switched on, the D2B telephone and TELE AID transmitter/receiver (A35/17) awaits a ready message. If this has not been received even after 30 s, the status display in the SOS pushbutton switch (S93/3) lights up and the fault is entered in the fault memory. Messages of readiness arriving later are nevertheless accepted, the status display then goes out again.

After the ready message has been received, the CTEL and D2B telephone and TELE AID transmitter/receiver (A35/17) awaits a further ready confirmation every 500 ms. If this is not received for longer than 3 seconds the status display illuminates in the SOS pushbutton switch (S93/3) and the error is stored in the fault memory of the D2B telephone and TELE AID transmitter/receiver (A35/17) . Later incoming messages are still received

A TELE AID emergency call is automatically triggered by the D2B telephone and TELE AID transmitter/receiver (A35/17) if a crash message is received twice within one second.

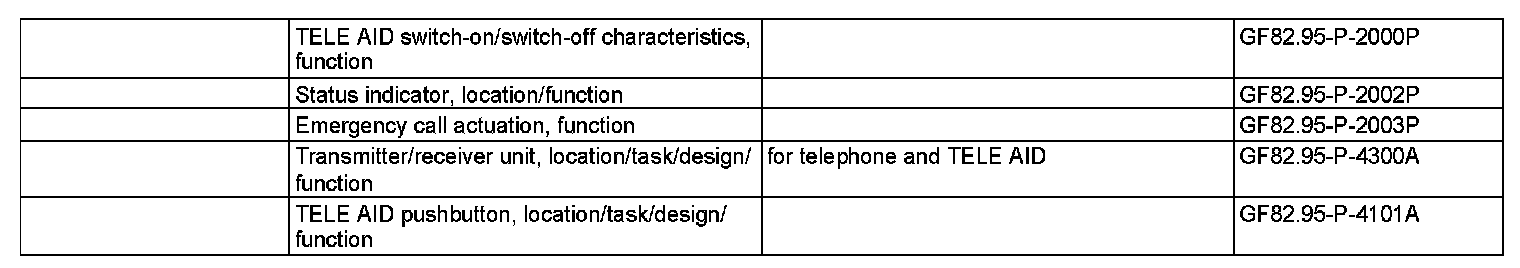

With a single crash message, the state display in the SOS pushbutton (S93/3) lights up. An entry is made in the fault memory of the D2B telephone and TELE AID transmitter/receiver (A35/17), and subsequent messages continue to be received.
