Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Compression Check >> Specifications >> Pressure/Variation

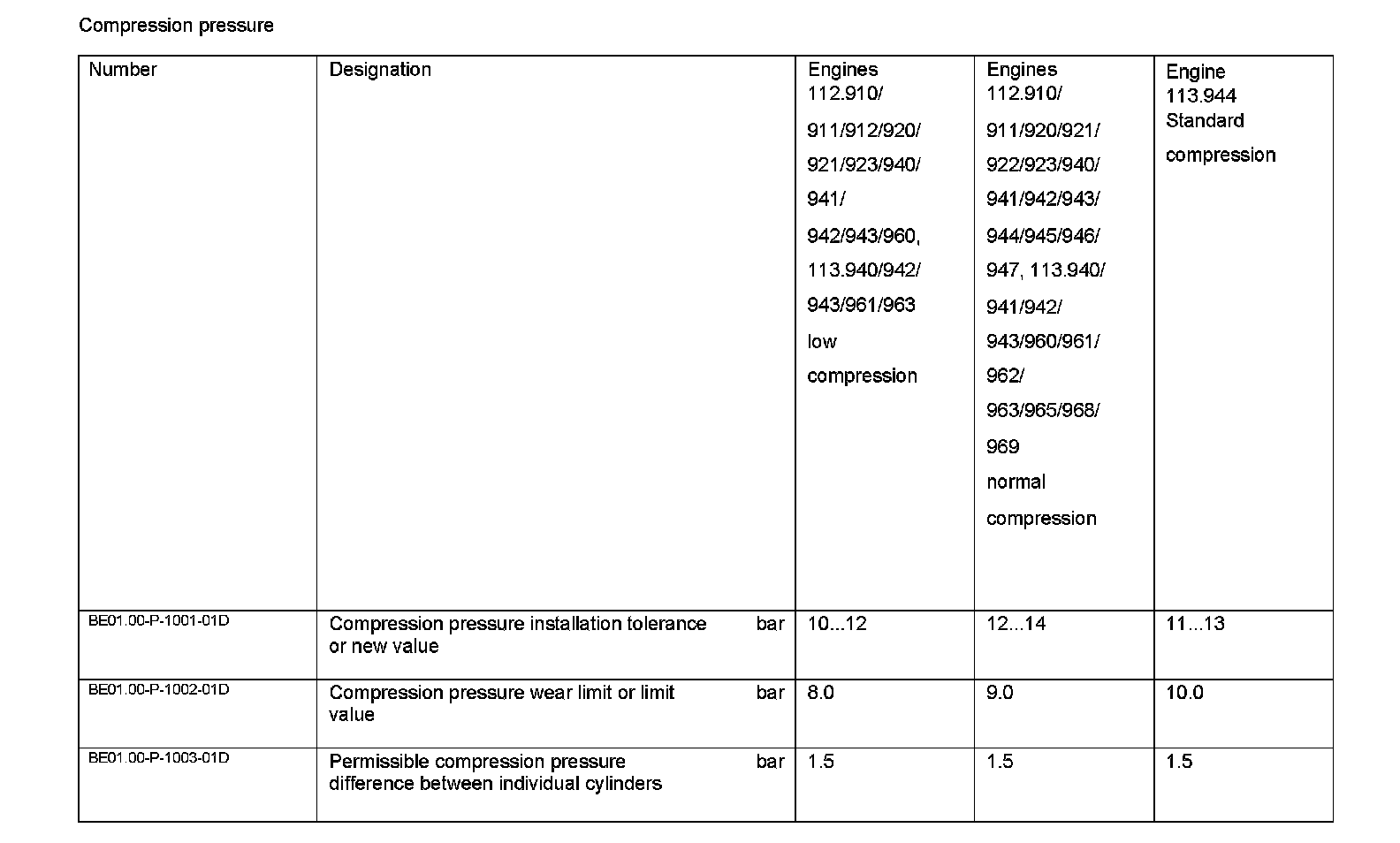

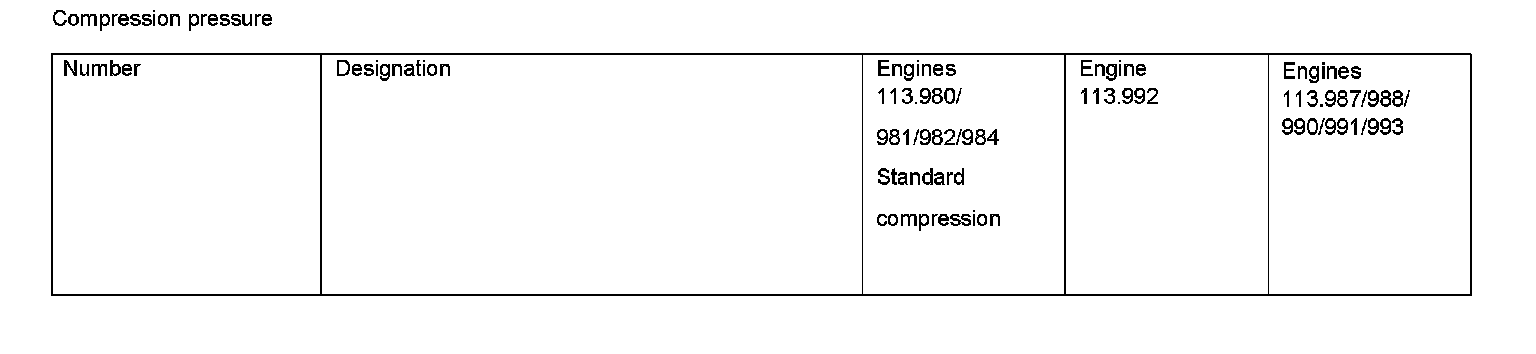

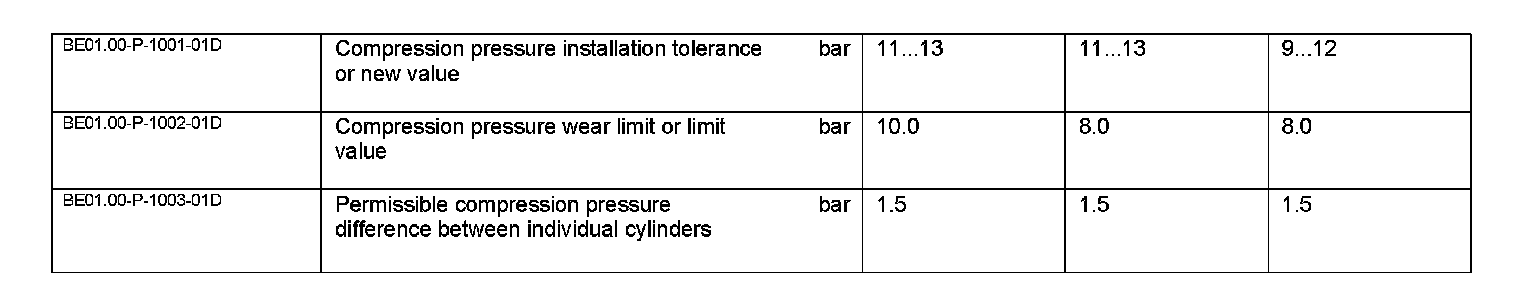

Pressure/Variation







Part 1 Of 2:





Part 2 Of 2:
