Ignition System: Testing and Inspection
AR15.10-P-3000WA Test rotorless high voltage distribution

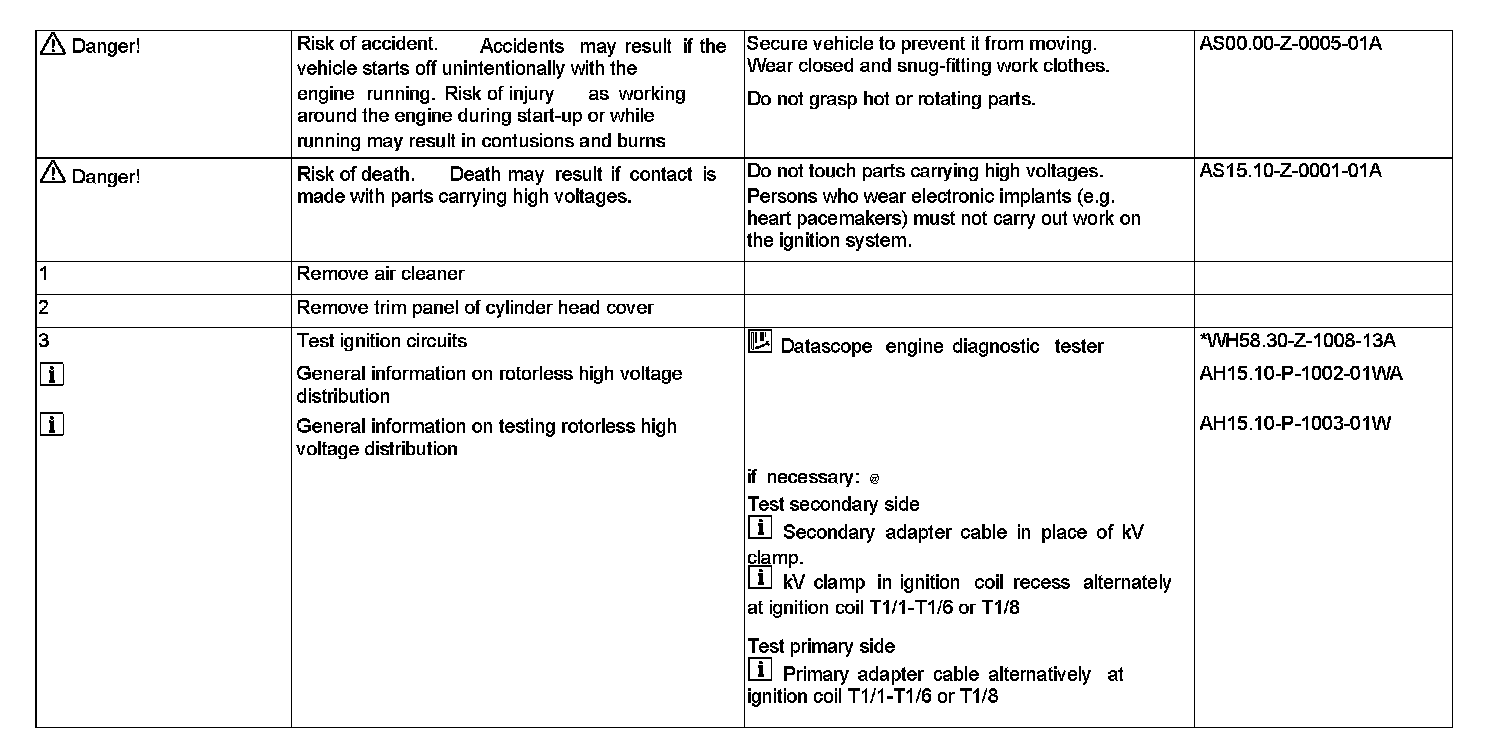

Steps 1-3:

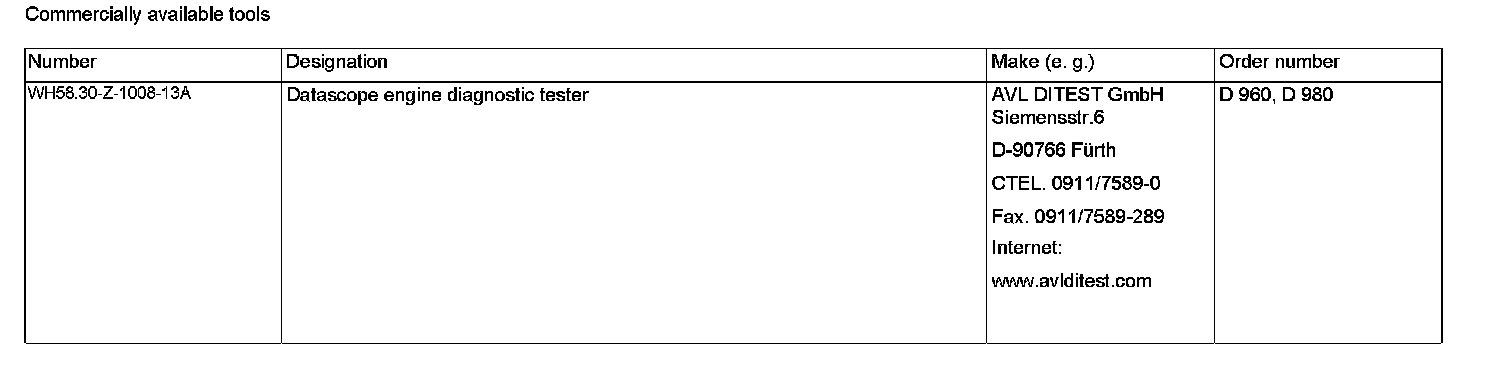

Commercially available tools:
