Fuel Pump: Service and Repair



Removing and installing the fuel pump

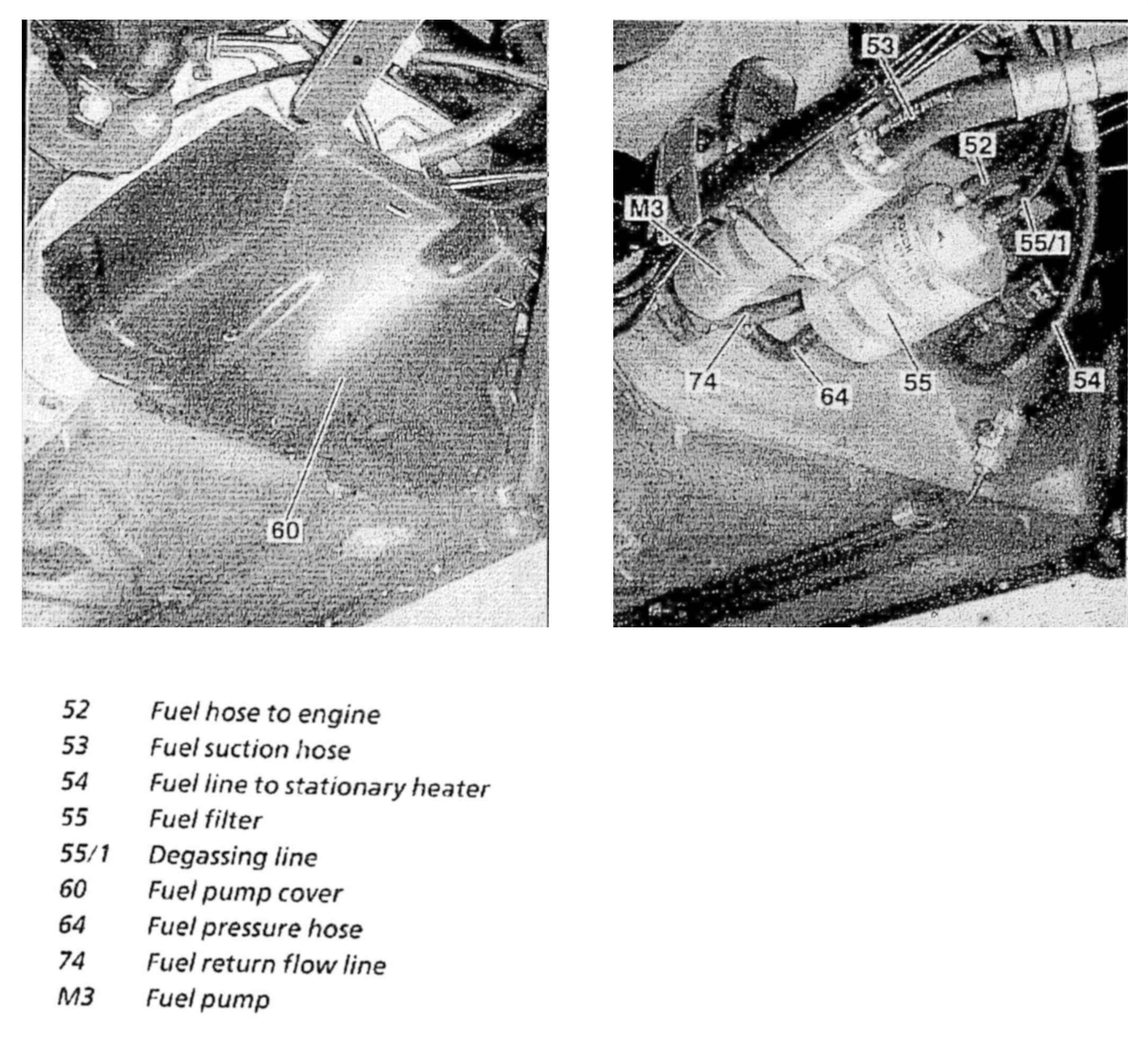

Component Identification
Shown on model 220

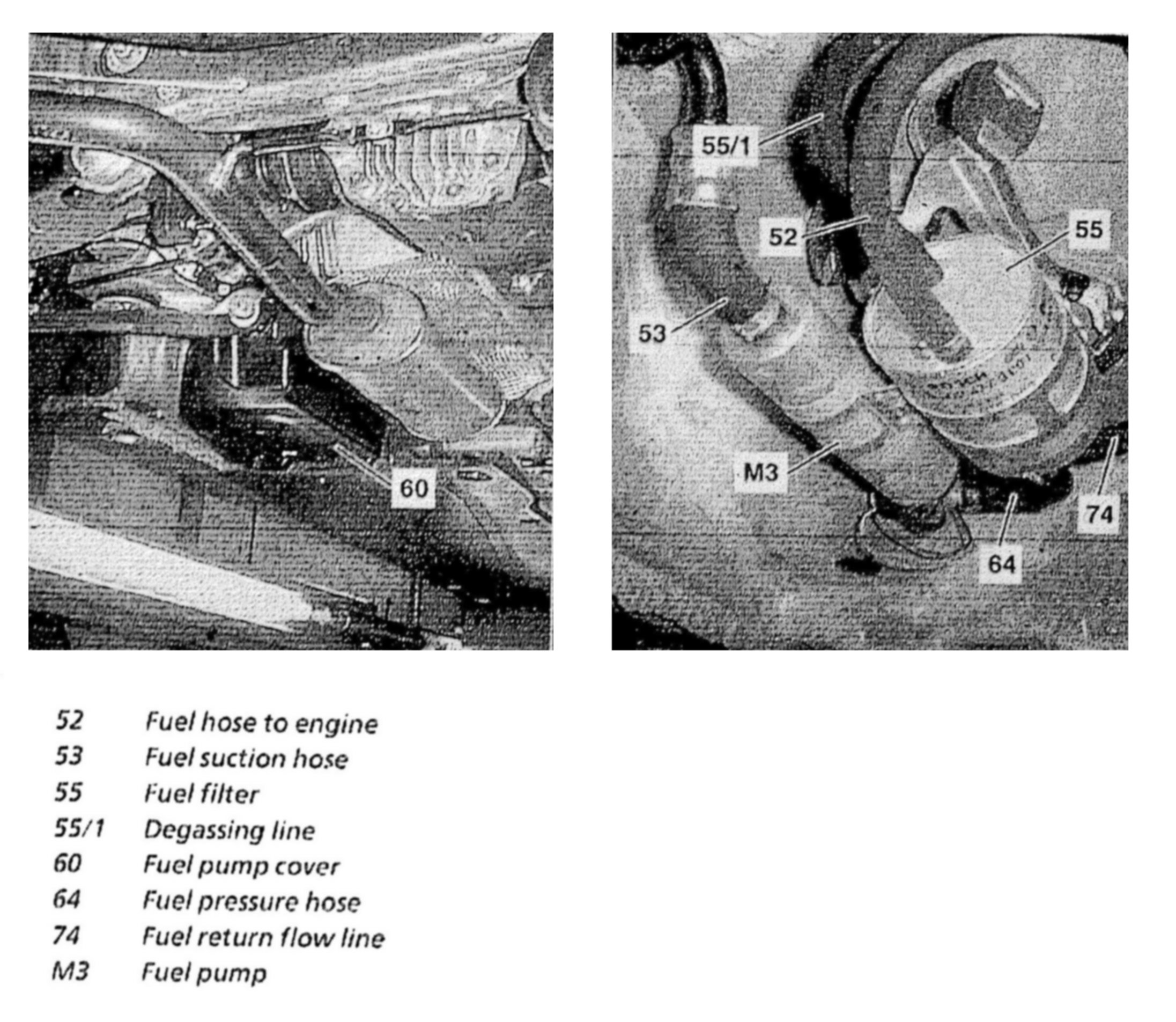

Component Identification
Shown on model 129

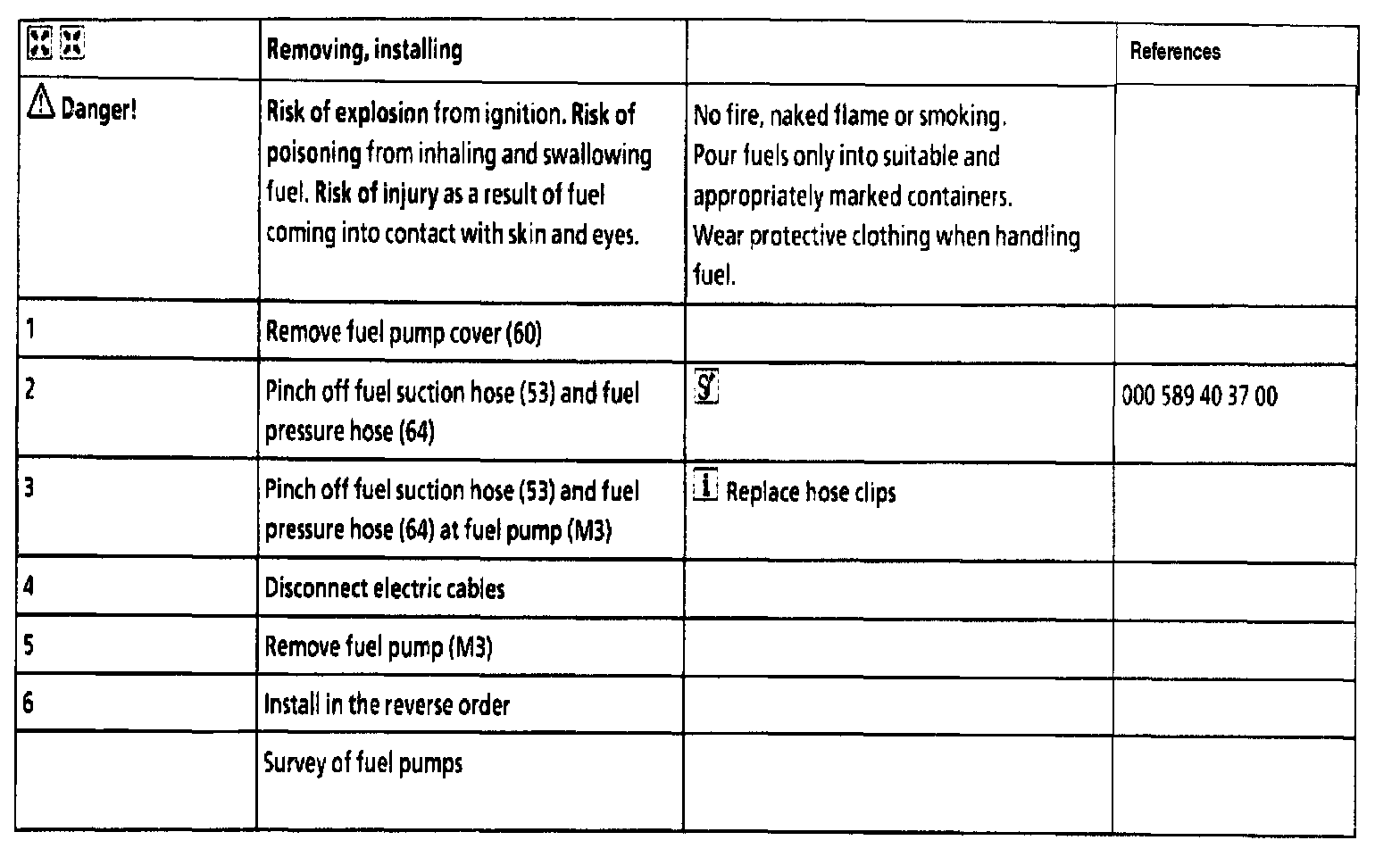

Removing, installing

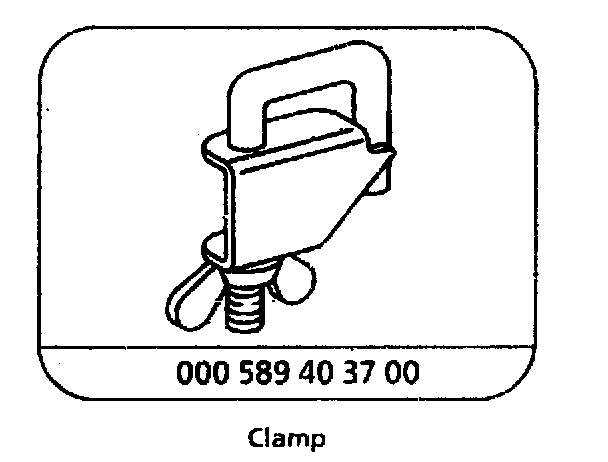

References, Special tools
