Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Locations >> GF47.20-P-4003-01M Fuel Pump Position

GF47.20-P-4003-01M Fuel Pump Position



GF47.20-P-4003-01M Fuel Pump Position

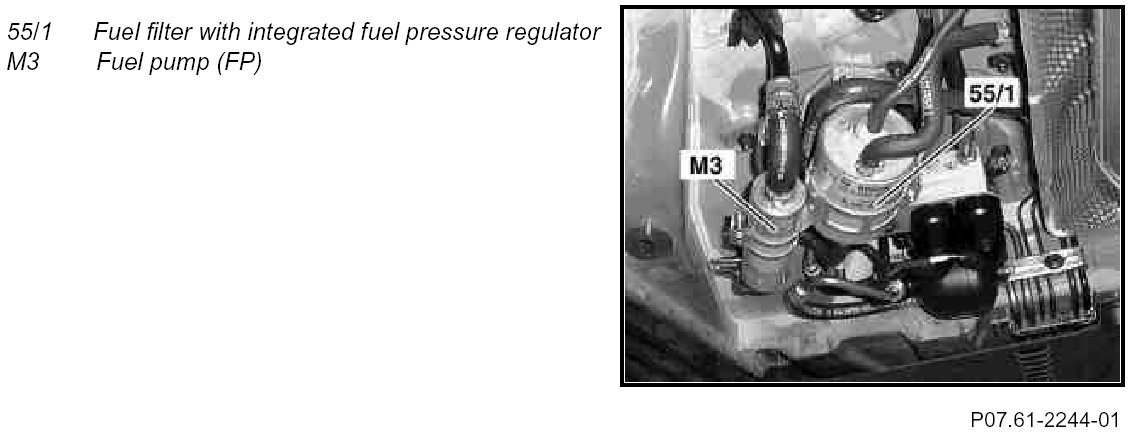

The fuel pump is mounted on the left frame floor in front of the rear axle.
