Vacuum and Vapor Hose Diagrams

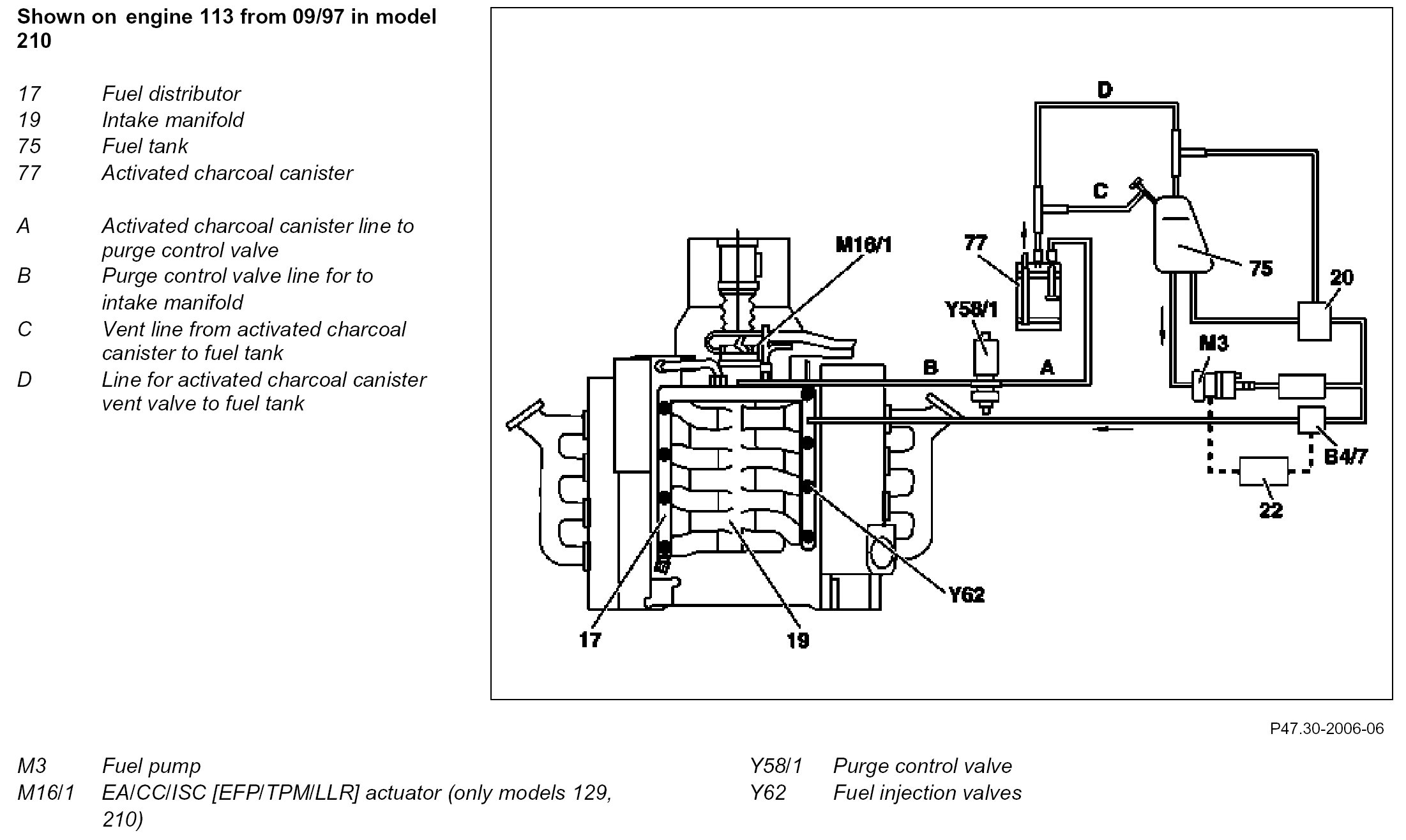

AR47.30-P-8212-01DI Connection Diagram For Evaporative Emission Control System
- except CODE (494) USA version

Component Identification:
