Secondary Air Injection Relay, Location

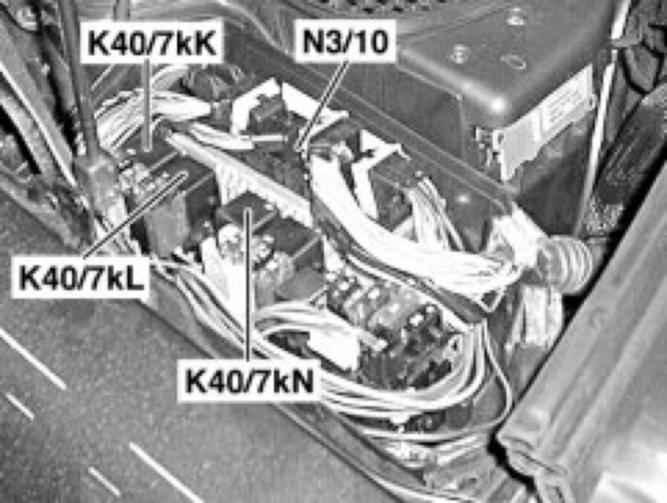

Secondary Air Injection Relay, Position




K40/7kN Air pump relay (plug position N)
N3/10 ME-SFI control module
