Exhaust System, Design

Exhaust System, Design

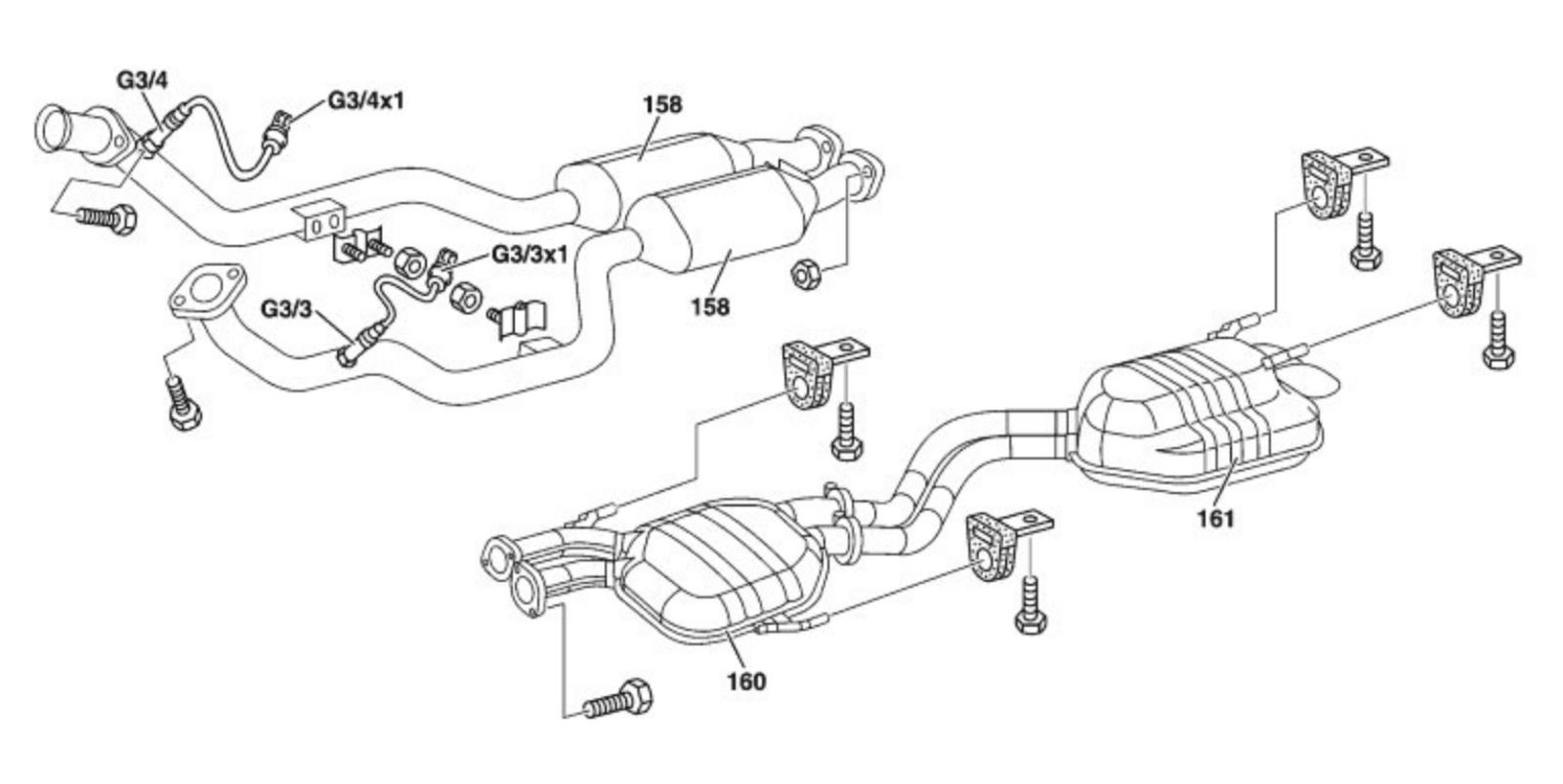

G3/3 Left O2 sensor upstream TWC
G3/3x1 LeftO2 sensor connector upstream of TWC
G3/4 Right O2 sensor, upstream TWC for
G3/4x1 Right 02 sensor connector upstream of TWC
G3/5 Left O2 downstream of catalytic converter
G3/5x1 Left 02 sensor connector downstream of TWC
G3/6 Right oxygen sensor downstream of TWC for
G3/6x1 Right 02 sensor connector downstream of TWC
157 Firewall three way catalytic converter (with front muffler on vehicle without TWC)
158 Underfloor catalytic converter
160 Center muffler
161 Rear muffler with tail pipe
A with exhaust flap on cylinder shutoff
