Exhaust Flap Switchover Valve, Position/Task/Design/Function

Exhaust Flap Switchover Valve, Position/Task/Design/Function

ENGINE 113.960 with CODE (479) Cylinder shutoff
ENGINE 137.970

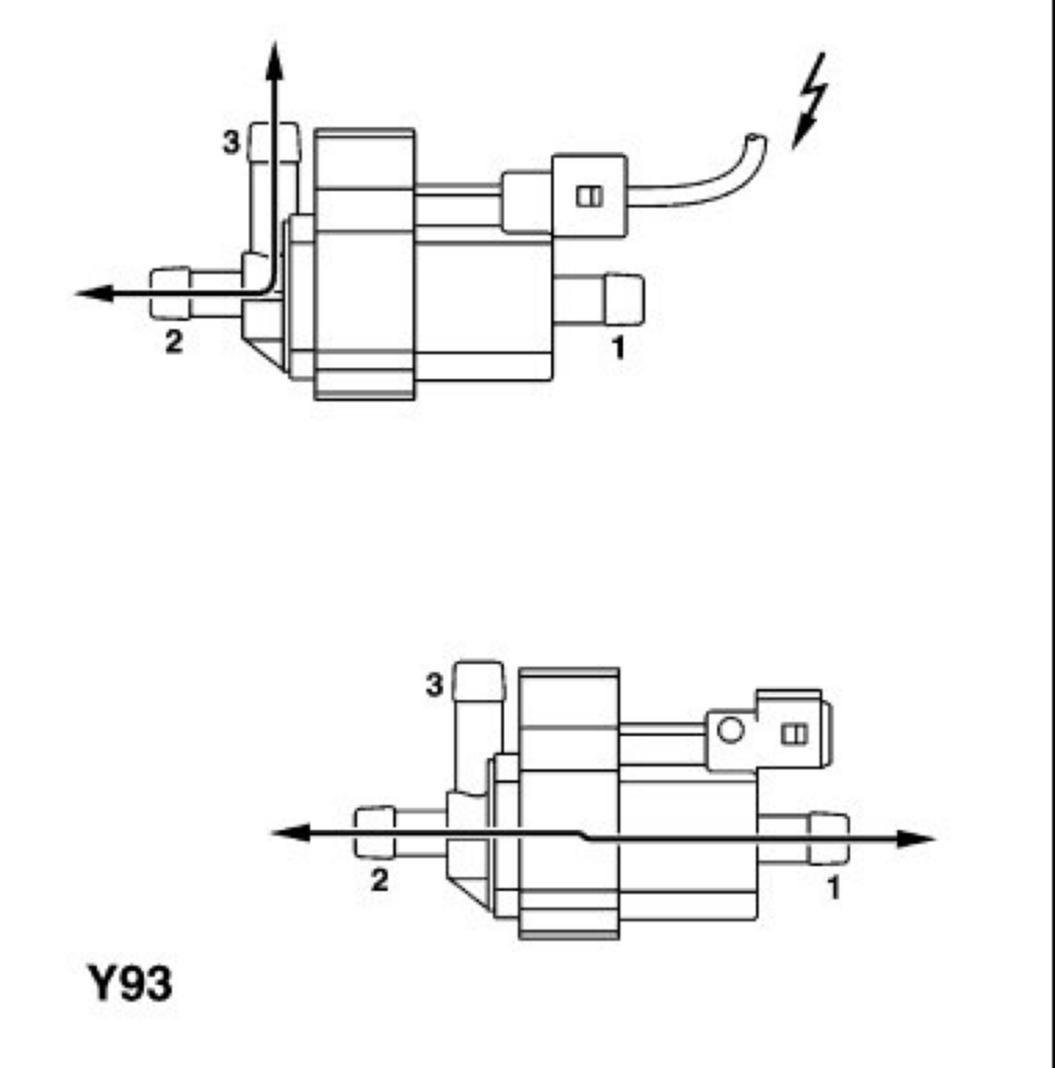

Exhaust flap valve (Y93)
1 Pressurization
2 Vacuum supply from vacuum reservoir
3 Connection for exhaust flap diaphragm unit

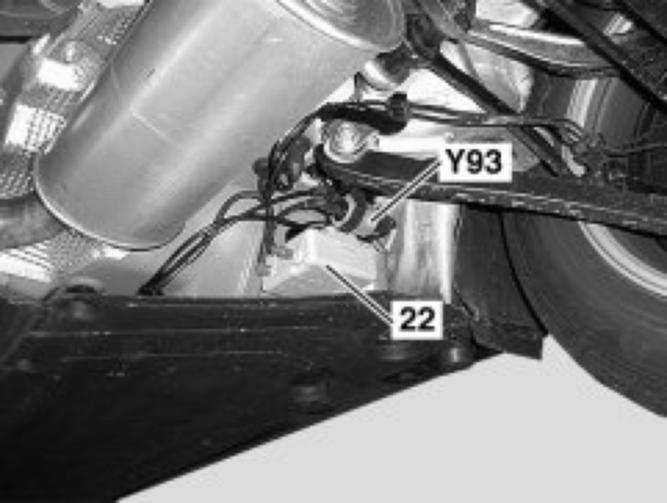

Exhaust flap valve, location



Model 215/220
Located at frame floor
22 Exhaust flap vacuum reservoir
Y93 Exhaust flap switchover valve

Task
When actuated to apply vacuum from the vacuum reservoir to the exhaust flap diaphragm unit

Design/function
The voltage is supplied to the electromagnetic valve from terminal 87. The engine control module (ME-SFI) actuates the valve on the ground side when the cylinder shutoff is ON. This connects connection 2 and connection 3. The connection closes for pressurization.
