Cylinder Shutoff Valve, Location/Task/Design/Function

Cylinder Shutoff Valve, Position/Task/Design/Function

ENGINE 113.960 with CODE (479) cylinder shutoff

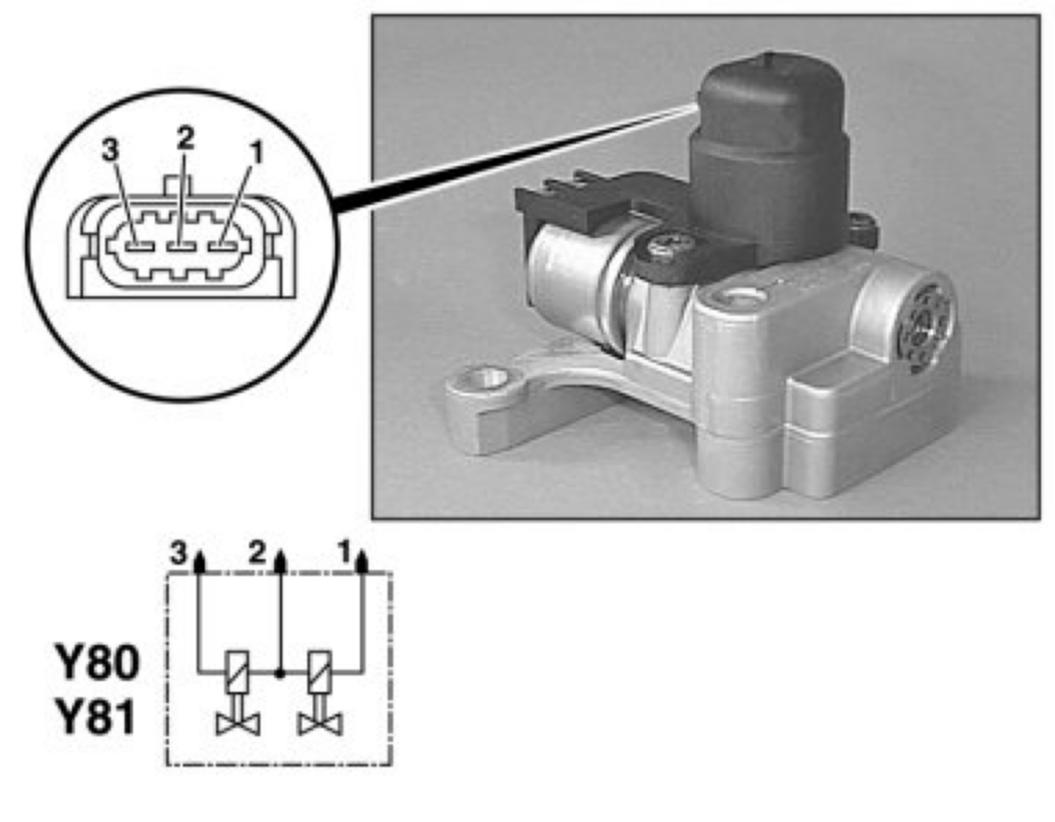

Y80 Cylinder shutoff valve for right bank of cylinders
Pin 1 Not fitted
Pin 2 Terminal 87
Pin 3 Engine control module (ME-SFI)
Y81 Cylinder shutoff valve for left bank of cylinders
Pin 1 Engine control module (ME-SFI)
Pin 2 Terminal 87
Pin 3 Not fitted

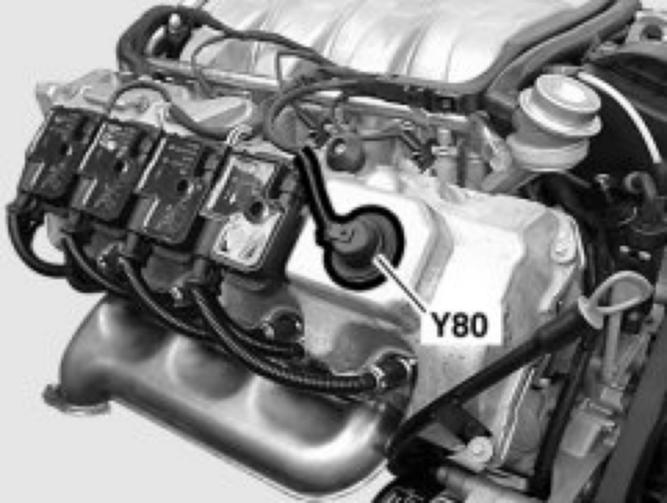

Position



Y80 Cylinder shutoff valve, right bank of cylinders




Y81 Cylinder shutoff valve, left bank of cylinders

Task
When actuated, release engine oil gallery (pressure oil) to the rocker arm shafts

Design/function
The voltage is supplied to the electromagnetic valves for cylinder shutoff from terminal 87. The cylinder shutoff valve is actuated in cycles on the ground side by the engine control module (ME-SFI). A breakaway starting current up to 3.5 A (on/off ratio approx. 95%) is permissible briefly. The holding current is approx. 1 A.
