Cylinder Shutoff Oil Pressure Sensor, Location/Task/Design/Function

Oil Pressure Sensor Cylinder Shutoff, Position/Task/Design/Function

ENGINE 113.960 with CODE (479) Cylinder shutoff
ENGINE 137.970




B40/2 Cylinder shutoff oil pressure sensor

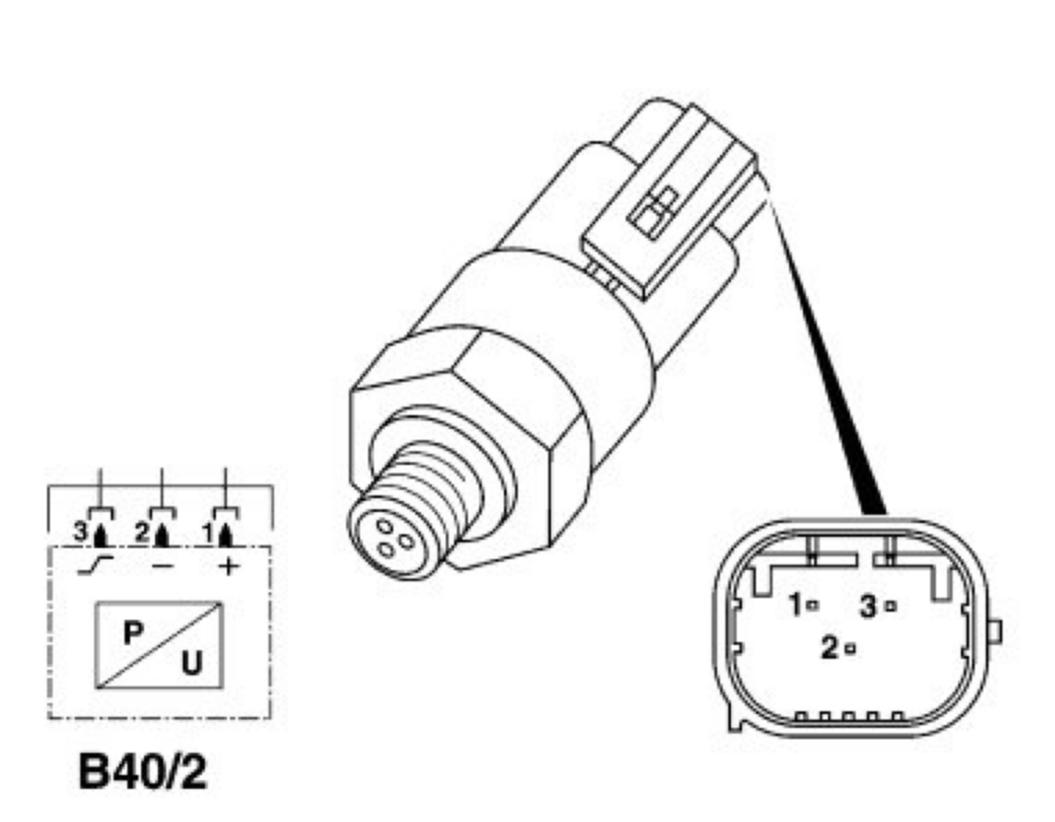

Pin 1 Supply from engine control module (ME-SFI), + 5 V
Pin 2 Ground from engine control module (ME-SFI)
Pin 3 Signal

Position

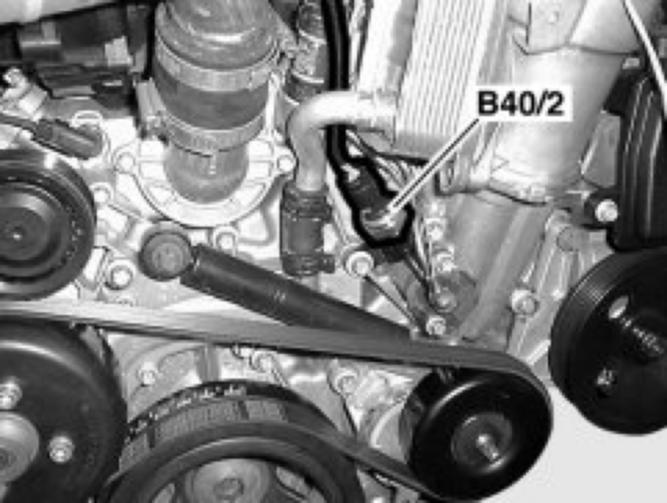

Location on engine 113
at timing case cover below oil filter
B40/2 Cylinder shutoff oil pressure sensor

Note: In the case of cylinder shutoff with vibration damper at belt drive.

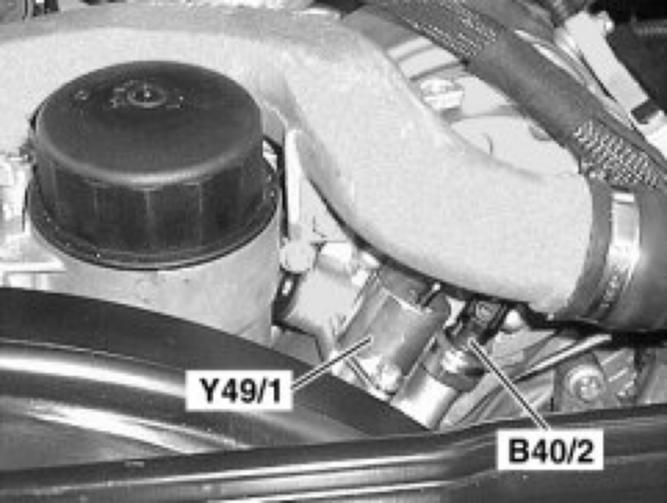

Location on engine 137
In front of right cylinder head
B40/2 Cylinder shutoff oil pressure senor

Task
To record engine oil pressure

Design/function
Measuring range (output signal): 0 bar (approx.0.5 V) to 5 bar (approx.4.5 V)
