Activated Charcoal Canister, Location

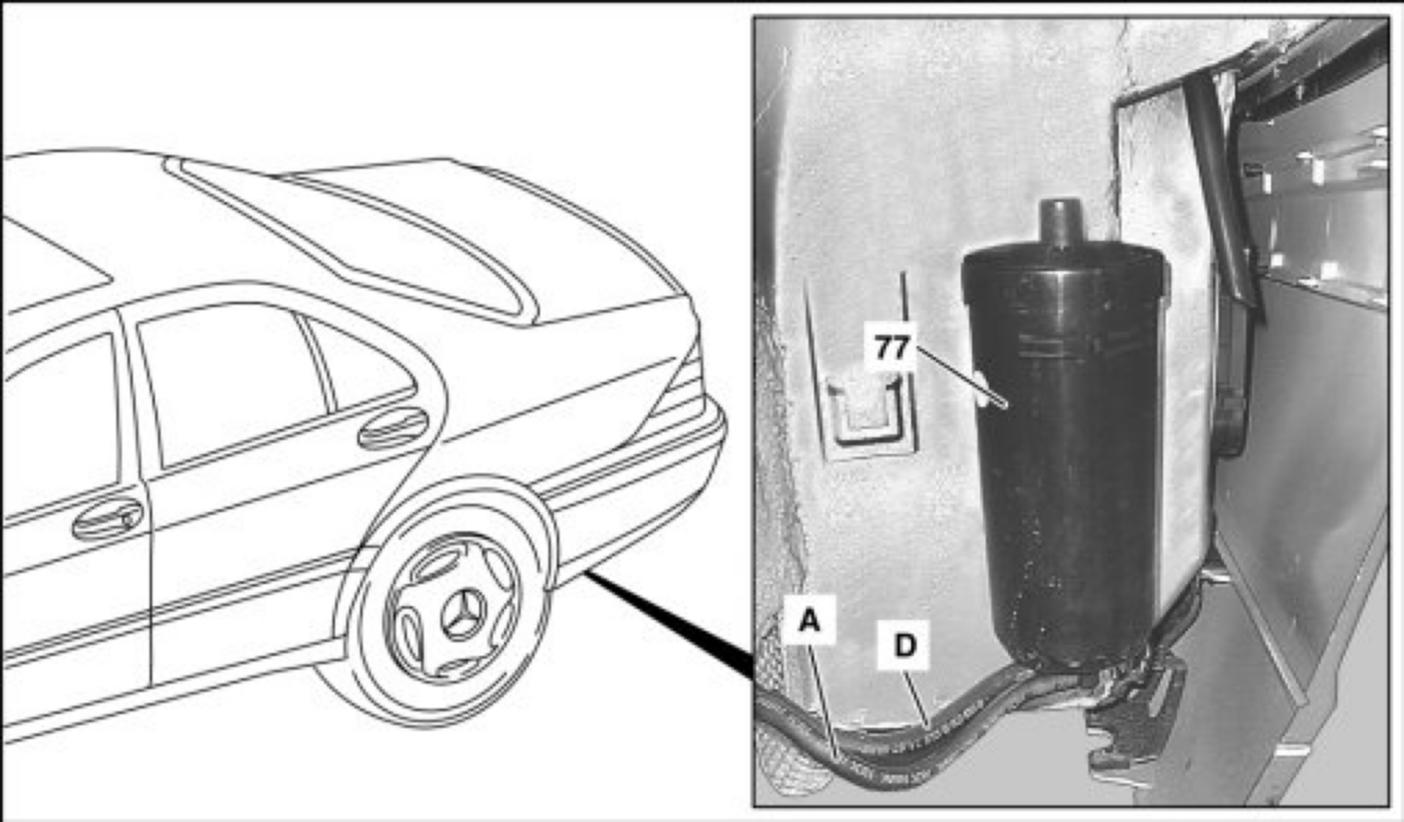

Activated Charcoal Canister, Position




77 Activated charcoal canister
A Activated charcoal canister line to purge control valve
D Activated charcoal canister line to fuel tank

The activated charcoal canister is located at the rear in the rear left wheelhouse

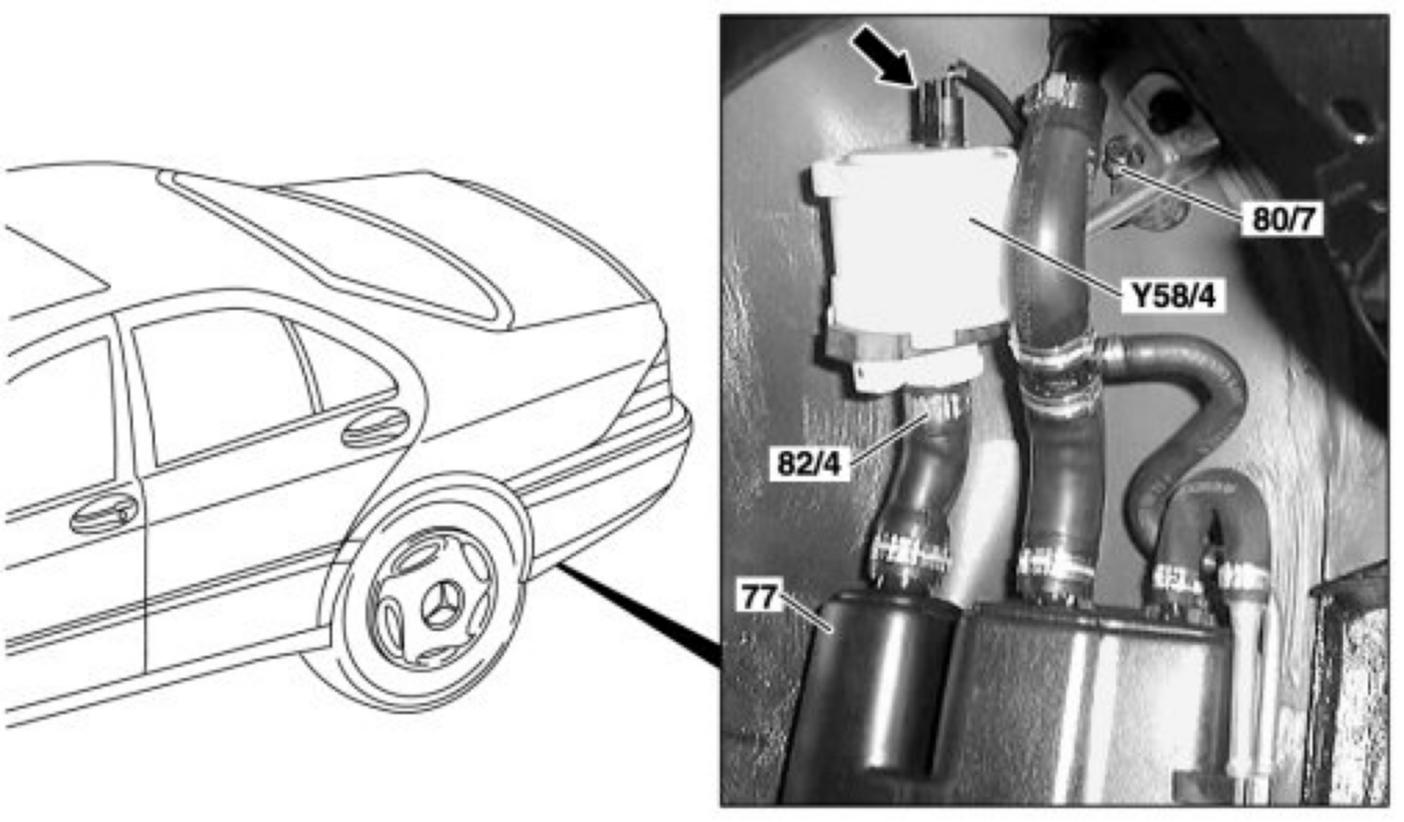

(USA) with ORVR
77 Activated charcoal canister
Y58/4 Activated charcoal canister shutoff valve
