Engine Control Module: Service and Repair
Removing and installing injection system control module

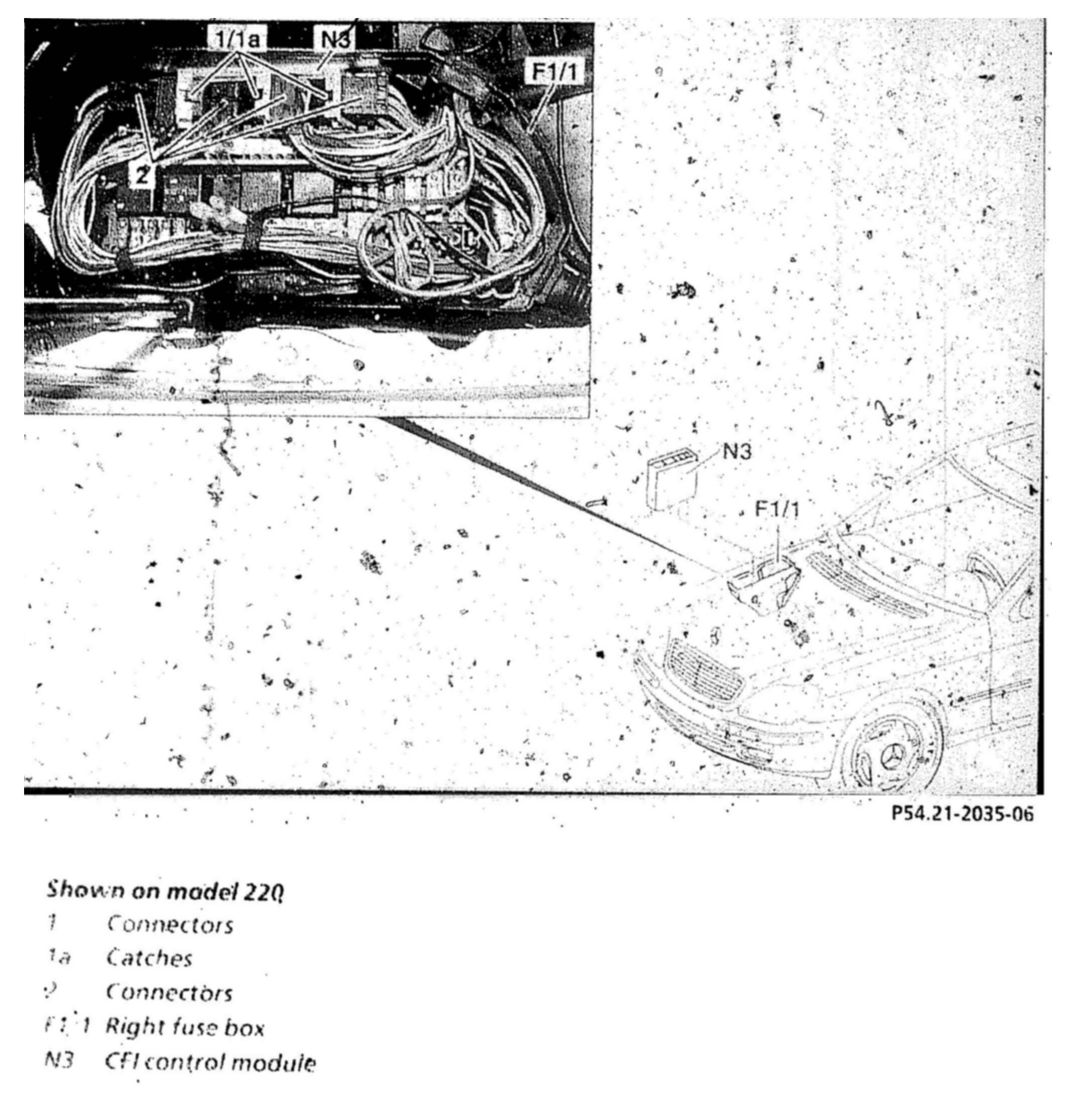

Shown On Model 220:

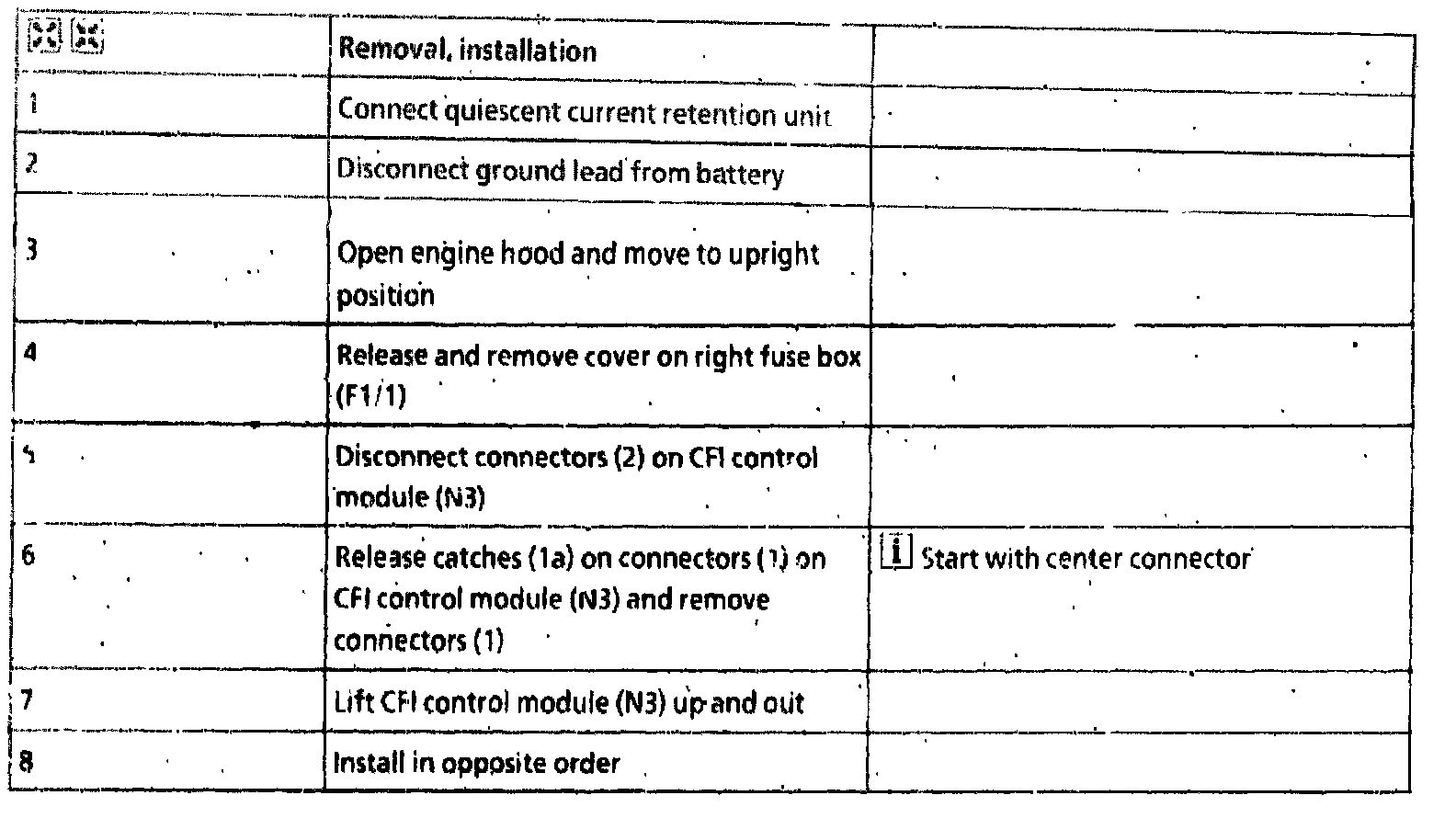

Removal/Installation, Steps 1 - 8:
