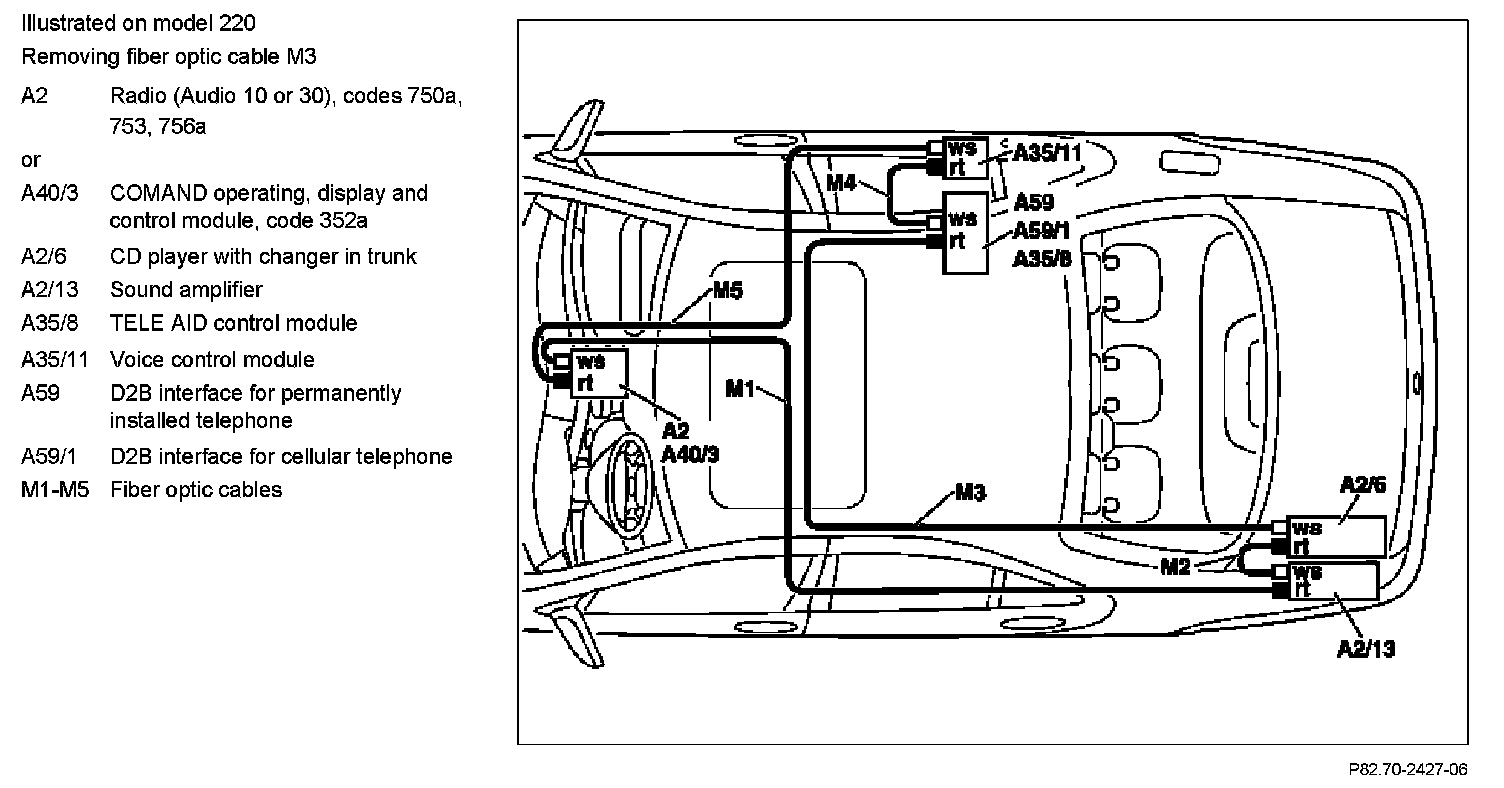

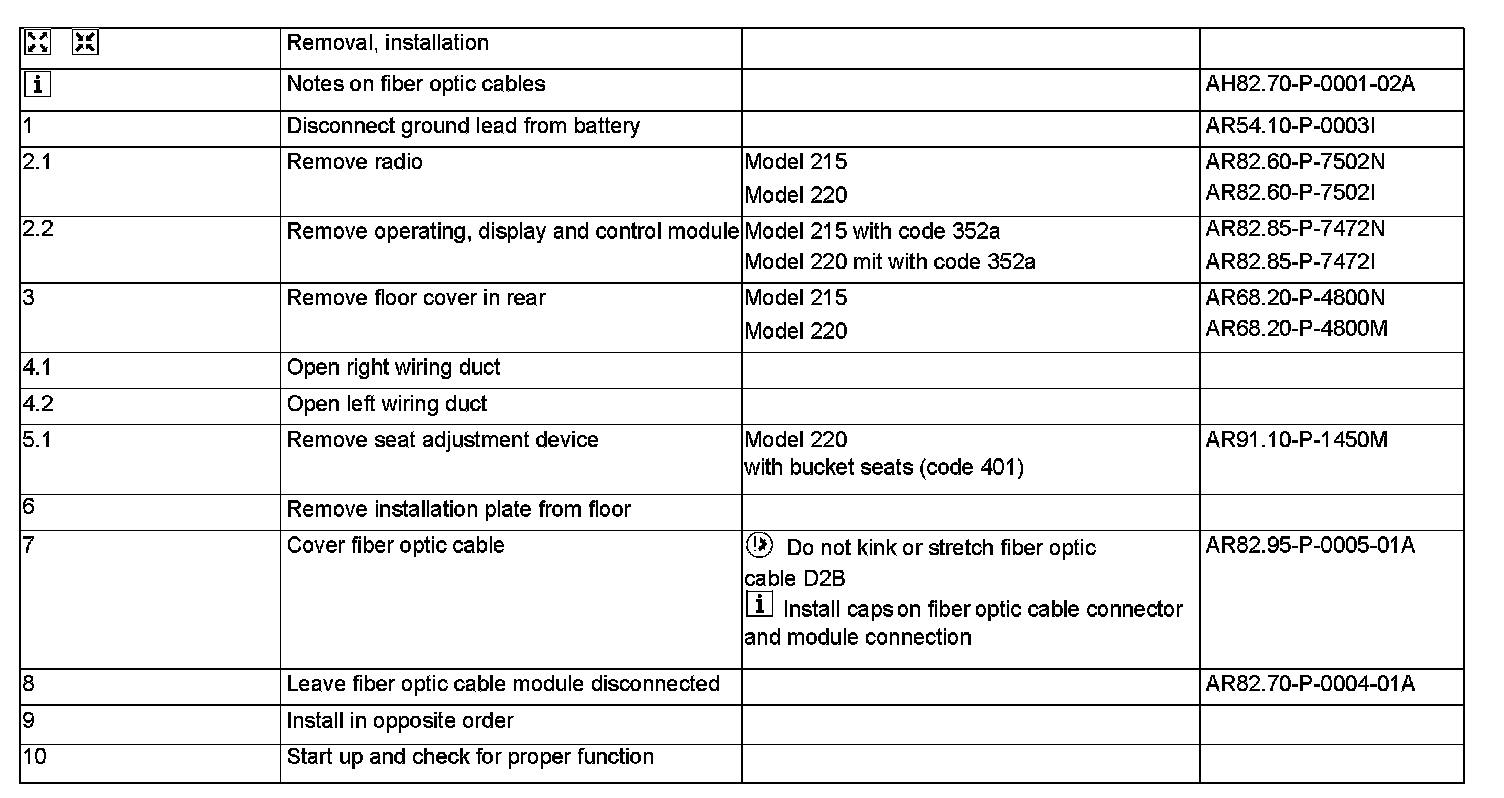

AR82.70-P-0004MB Remove/Install Fiber Optic Cable
AR82.70-P-0004MB Remove/Install Fiber Optic Cable
AR82.70-P-0004MB Remove/Install Fiber Optic Cable
- Between left side of trunk/right rear seat
