AR40.20-P-0301MB Check Vehicle Level at Front and Rear Axle With Electronic Inclination Meter and Adjust, If Necessary



AR40.20-P-0301MB Check vehicle level at front and rear axle with electronic inclination meter and adjust, if necessary
- With CODE (979) Special Protection Vversionp
- With CODE (Z07) Top protection

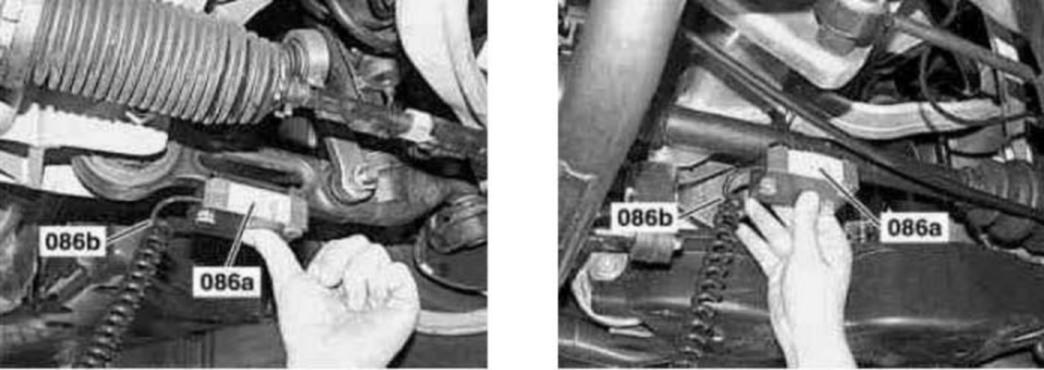

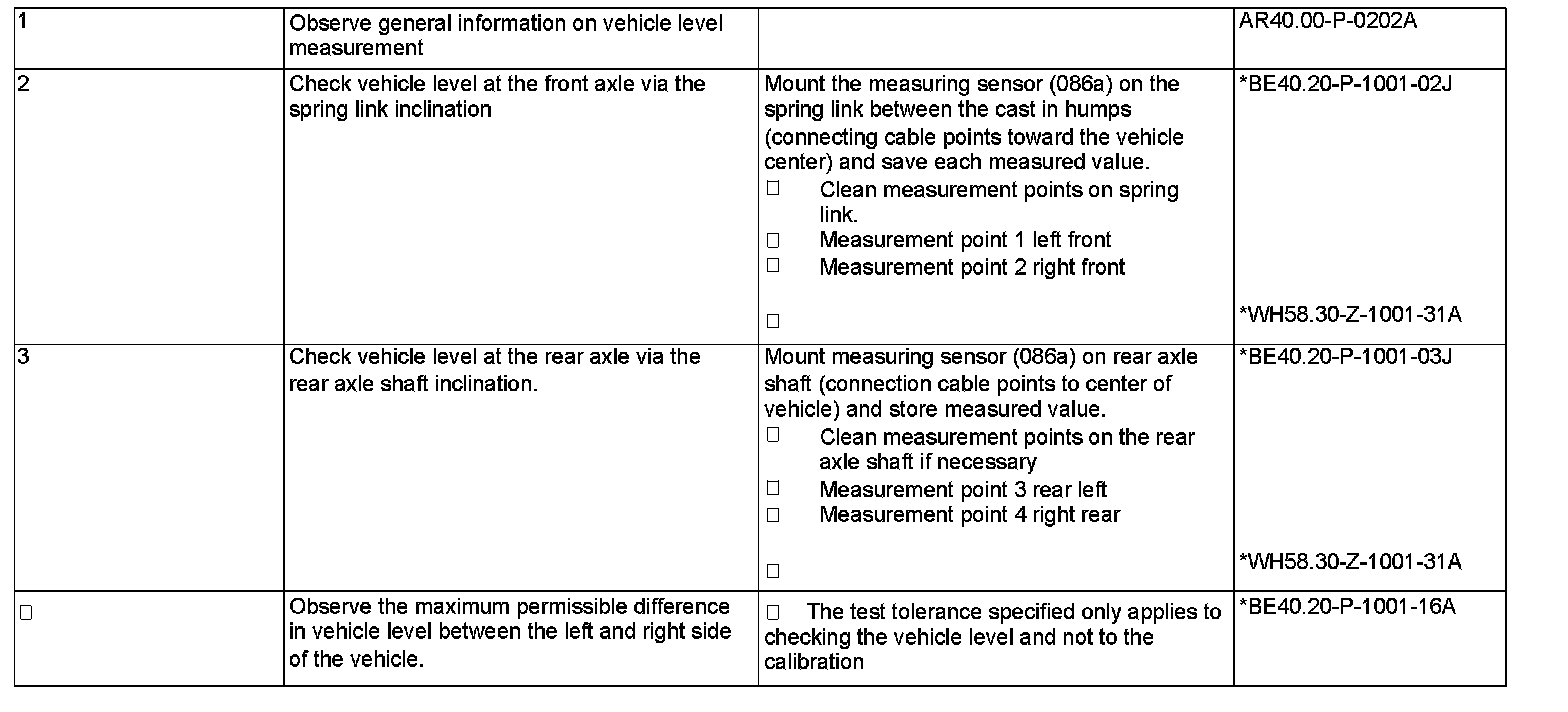

Steps 1-3:

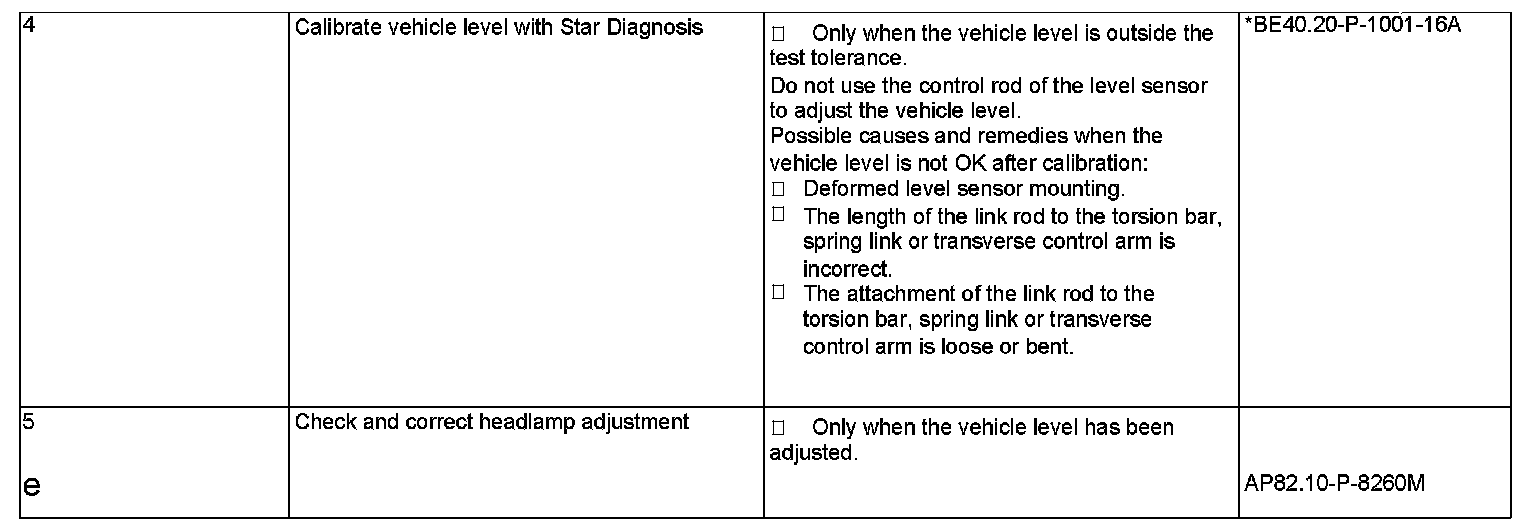

Steps 4-5:
