Headlamp Switch: Service and Repair

AR54.25-P-3260I Remove/Install Exterior Lamp Switch







Remove, Install
1 Connect quiescent current retention device
2 Disconnect ground cable of battery
3 Pull out release lever for parking brake

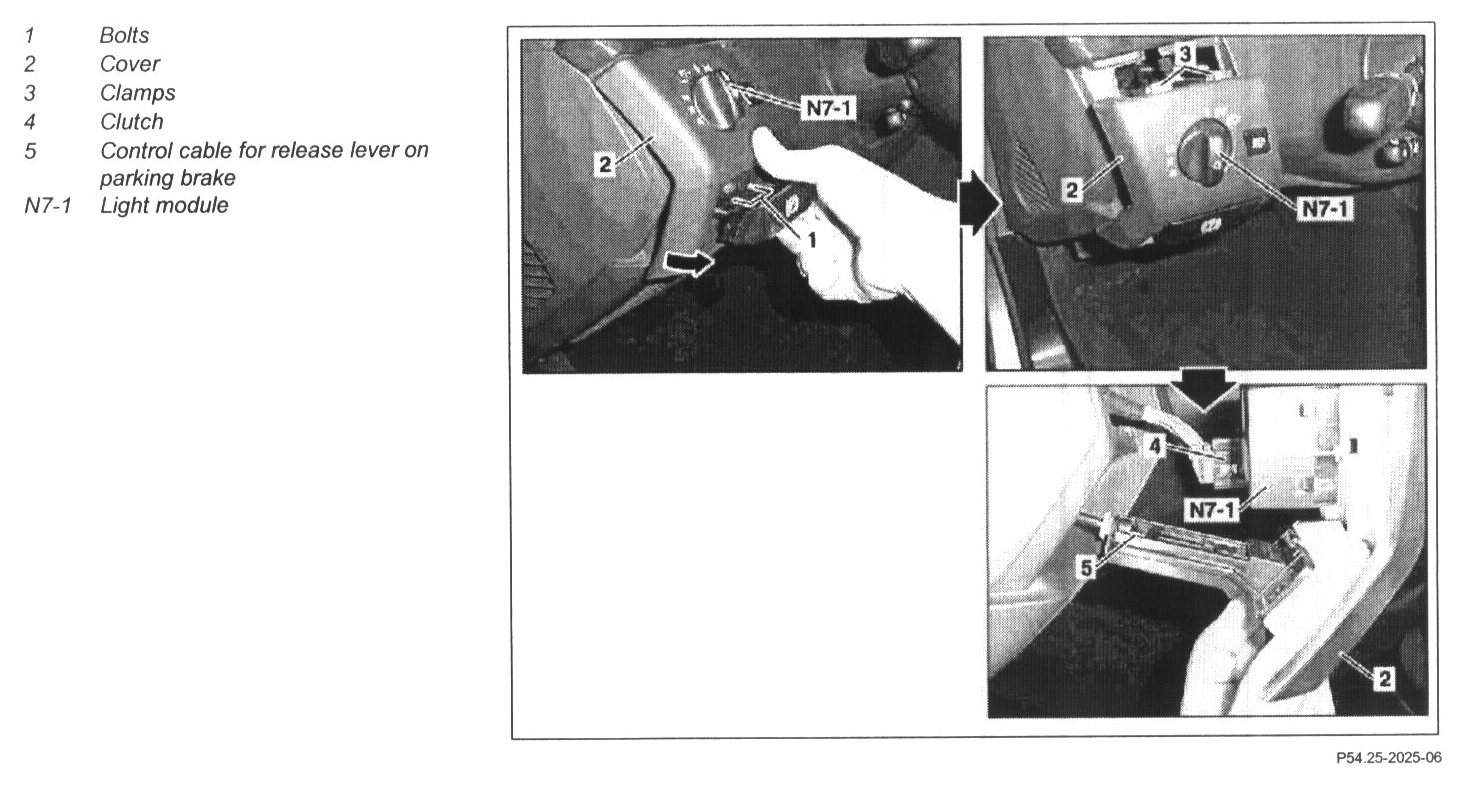

4 Unscrew bolts (1)
5 Remove cover (2) with light module (N7-1) from instrument panel

NOTE: Pull parking brake release lever until cover folds out of instrument panel in direction of arrow. Observe clips (3).

6 Release connector (4) and disconnect
7 Unhook control cable (5) from release lever on parking brake
8 Install in the reverse order
9 Perform function check.
