AN82.10-P-0001M Retrofit Xenon Headlamps
AN82.10-P-0001M Retrofit Xenon Headlamps
AN82.10-P-0001M Retrofit Xenon Headlamps

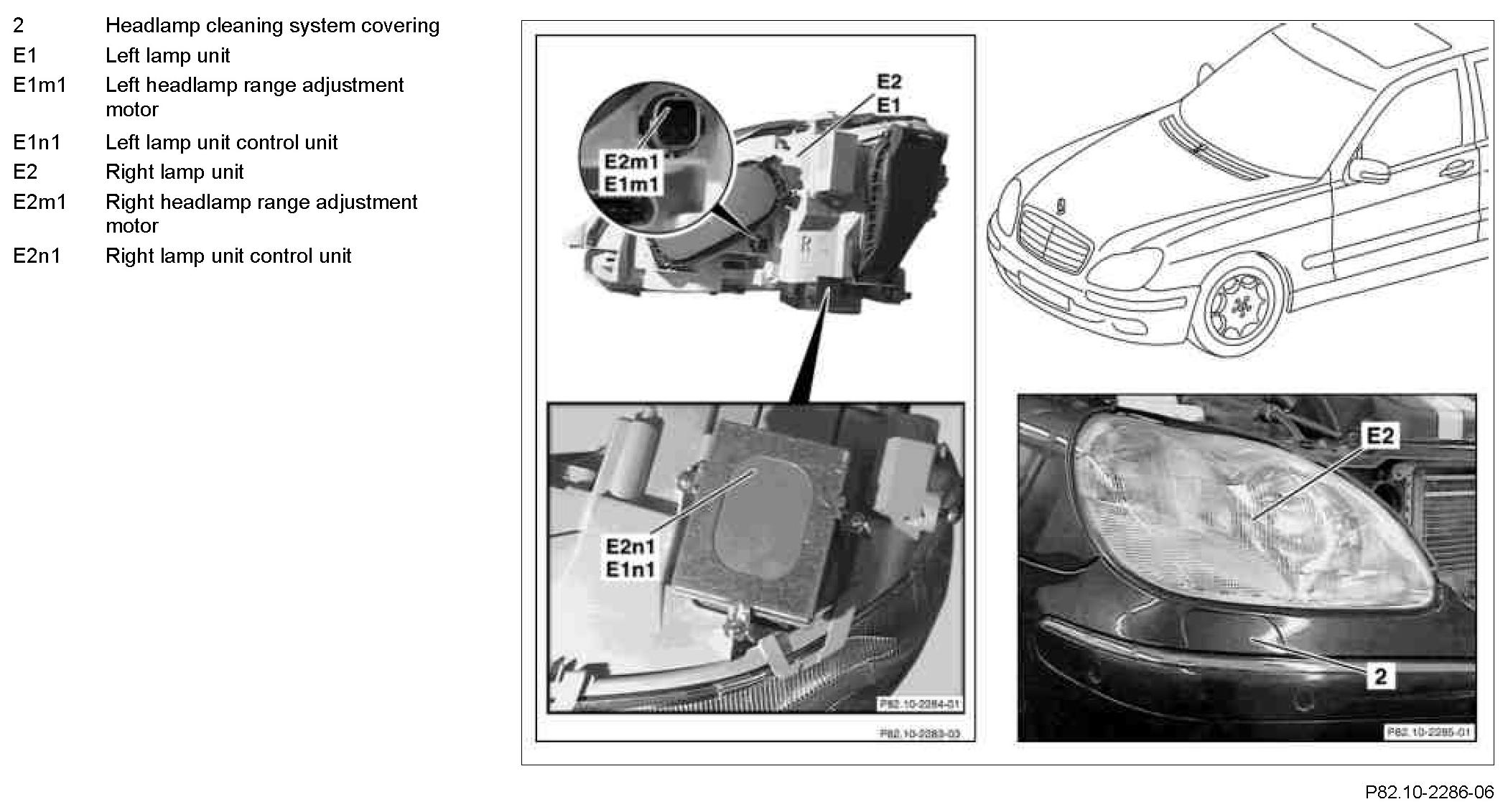

Component Identification:

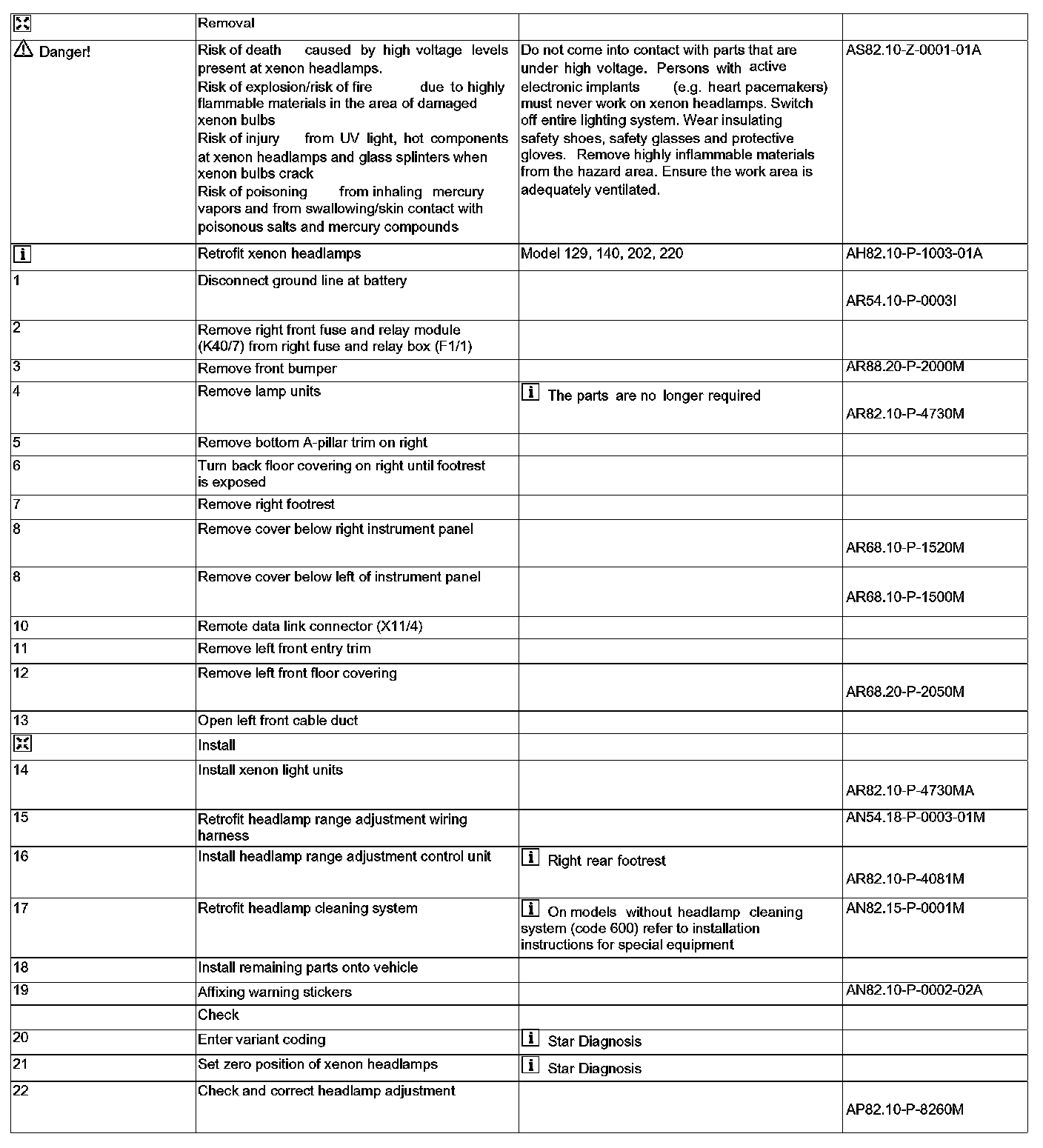

Steps 1 - 22:

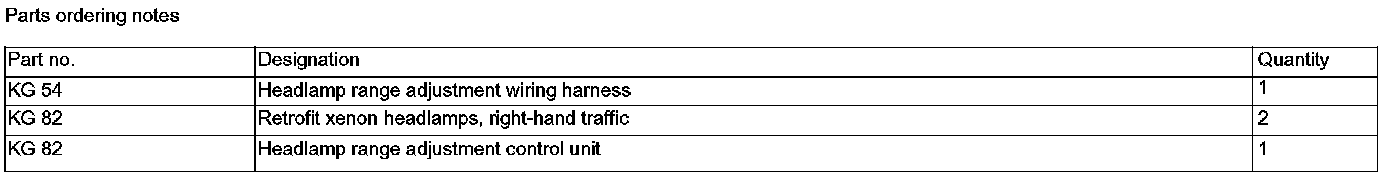

Parts Ordering Notes:
