AR83.30-P-5251E Correct Oil Level In AC System Following Repair or Slow Refrigerant Loss

AR83.30-P-5251E Correct Oil Level In AC System Following Repair or Slow Refrigerant Loss
- with CODE (580) Air conditioning or Tempmatic
- with CODE (581a) Air conditioning (Automatic)
- with A/C compressor models 7SB16, ND6CA17, 7SE16

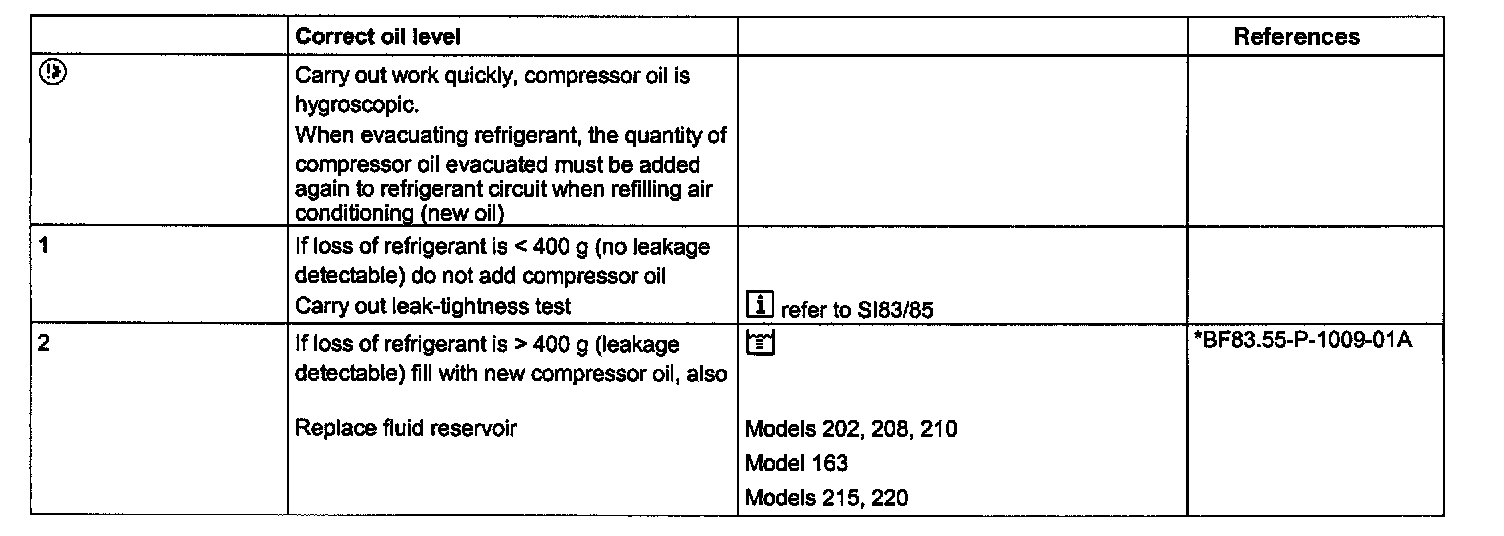

Correct Oil Level, Steps 1 - 2:

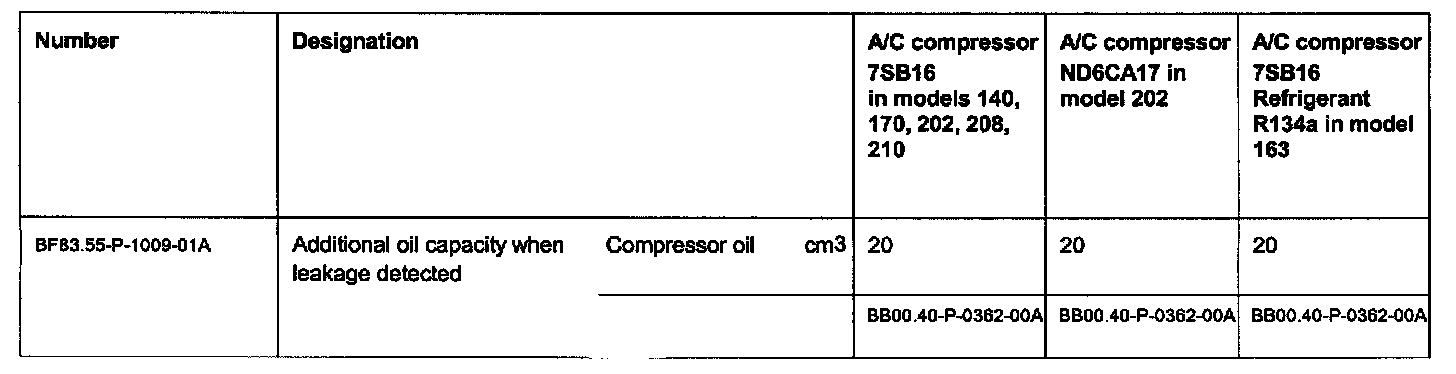

References (BF), A/C Compressor, Part 1:

References (BF), A/C Compressor, Part 2:
