GF54.21-P-4102-01I Right Signal Acquisition and Actuation Module, Location

GF54.21-P-4102-01I Right Signal Acquisition And Actuation Module, Location

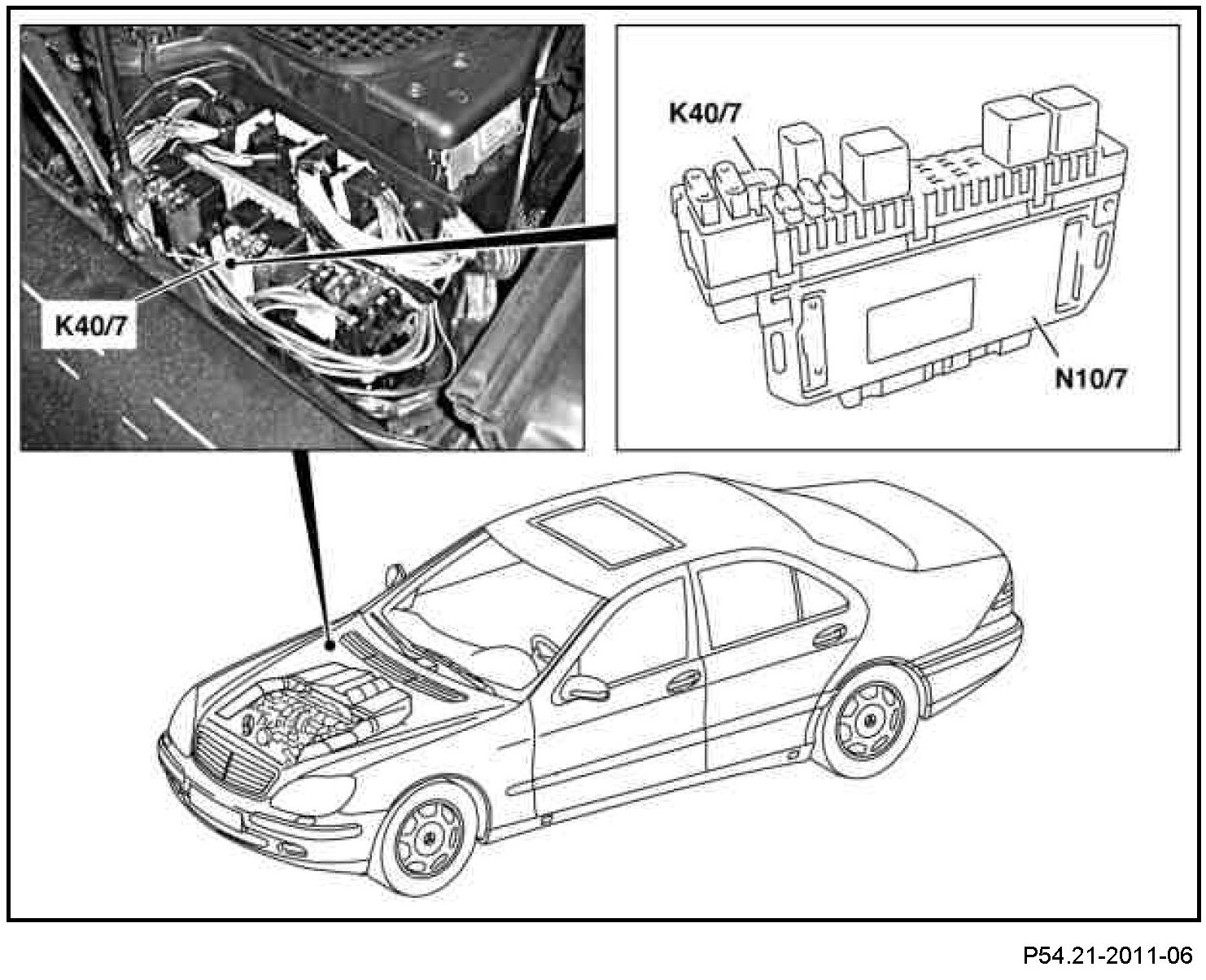

The right front SAM control module (N10/7) is located in the right rear of the engine compartment and is plugged into the right front fuse and relay module from underneath (K40/7).
