GF54.21-P-4101-01I Left Signal Acquisition and Actuation Module, Location

GF54.21-P-4101-01I Left Signal Acquisition And Actuation Module, Location

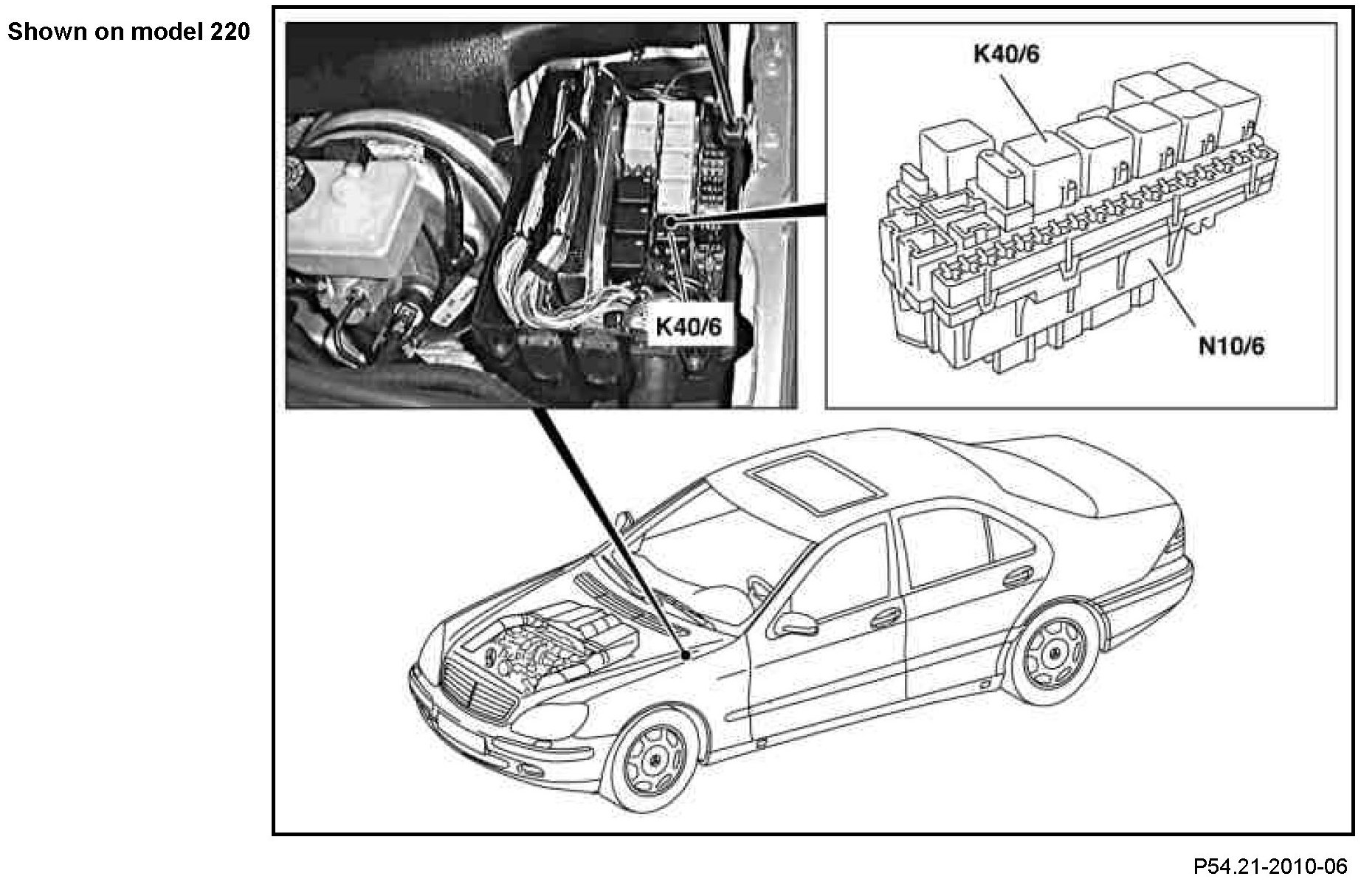

The left front SAM control unit (N10/6) is located on the rear left of the engine compartment and is pushed onto the left front fuse and relay module (K40/6) from underneath.
