Interlinkage of Components

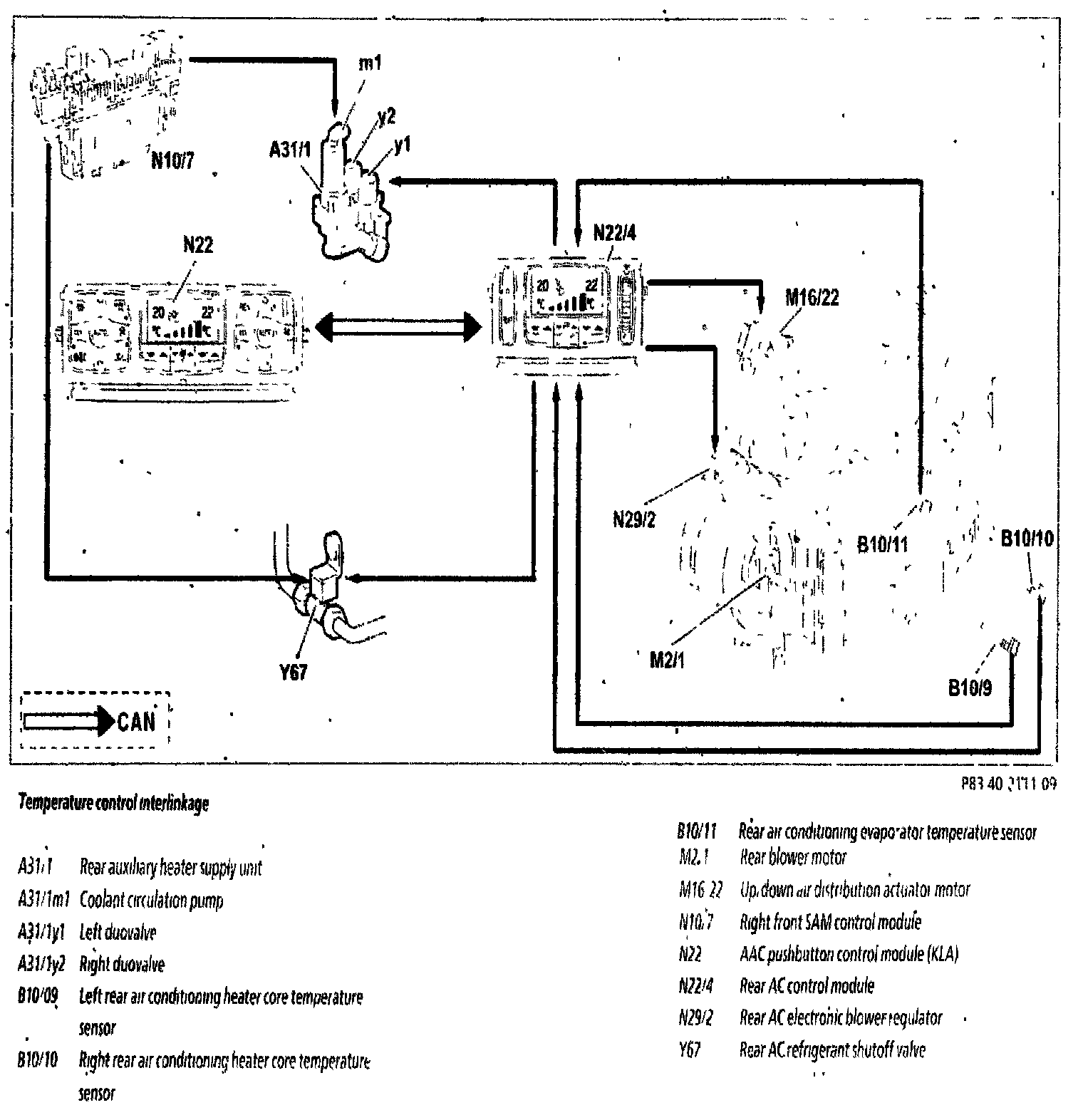

Temperature Control Interlinkage:






Interlinkage A/C Compressor Control:

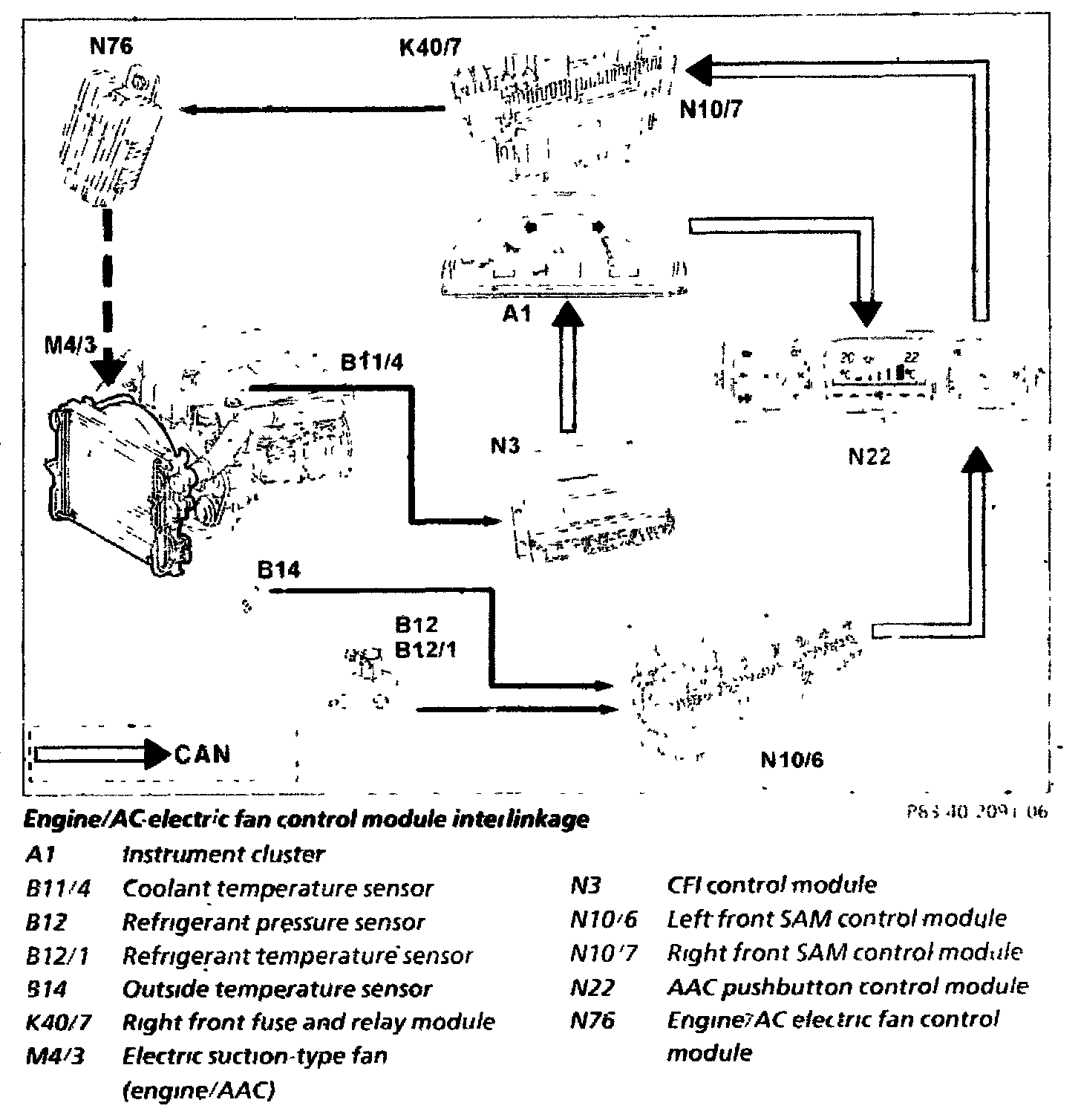

Engine/AC Electric Fan Control Module Interlinkage:






Temperature Control Interlinkage:

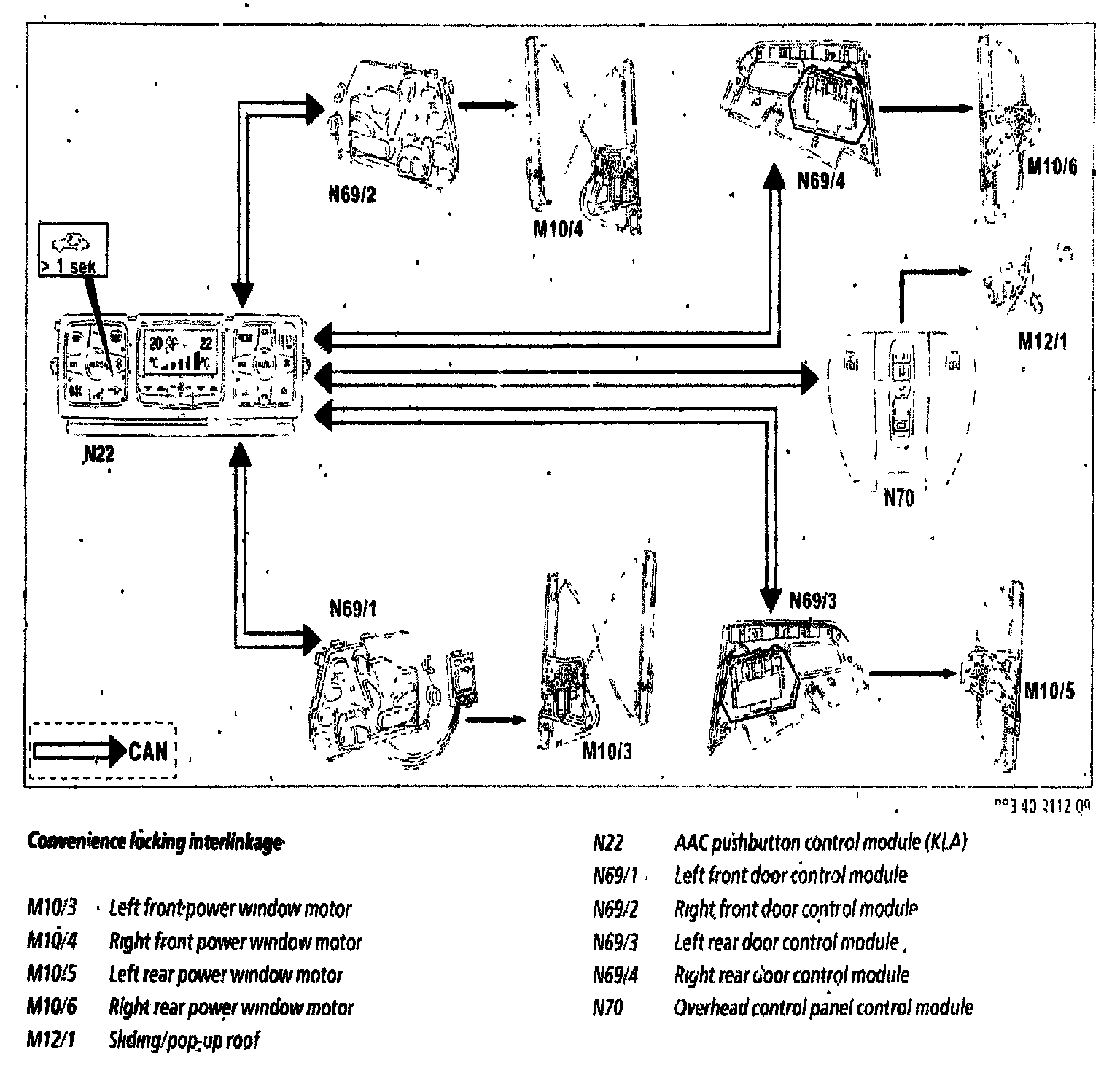

Convenience Locking Interlinkage:
