Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Inspection Data of Timing - With Code 479

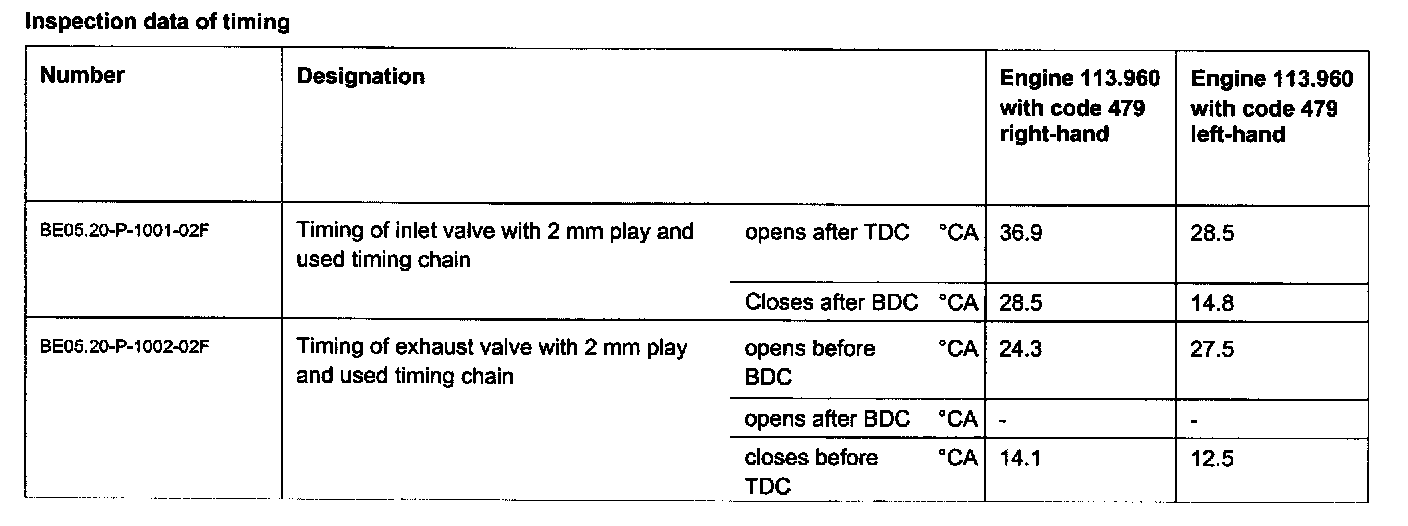

Inspection Data of Timing - With Code 479




Inspection Data Of Timing

Inspection Data Of Timing:
