AH01.45-P-0001-01E Notes on Application of Sealing Compound to Oil Pan

AH01.45-P-0001-01E Notes on application of sealing compound to oil pan

Component Identification:

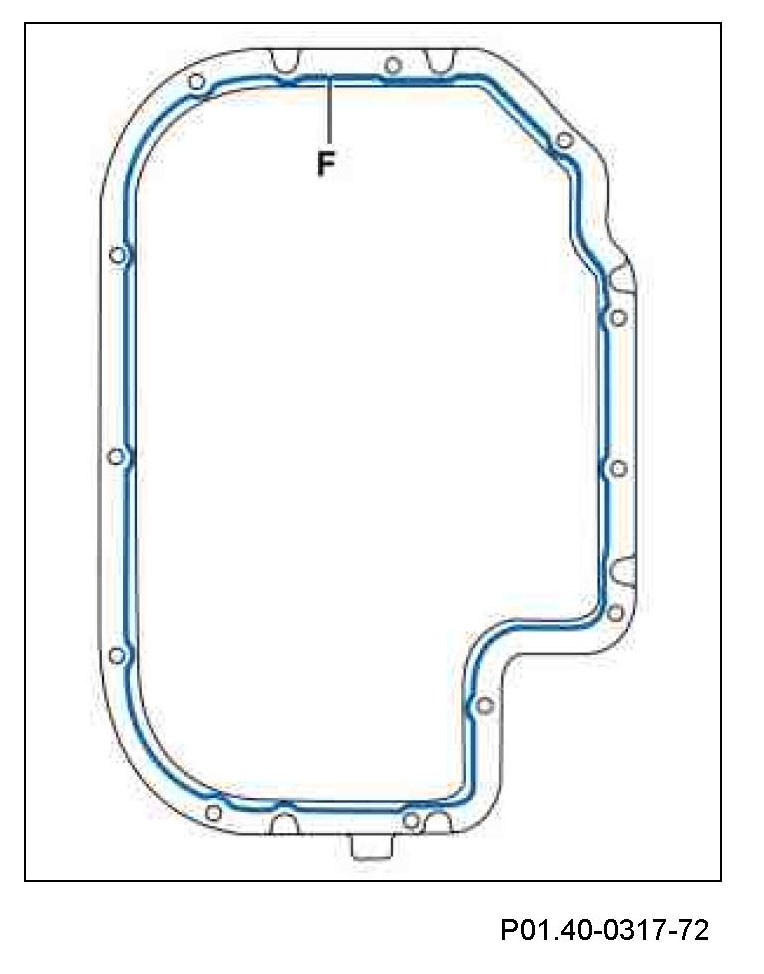

Application of sealing compound to upper part of oil pan
The line drawn in (F) identifies the course of the sealing compound.

The sealing compound must be only applied to the specified surfaces in the form of a bead of2.0 mm ± 0.5 mm in diameter.

The sealing compound must be processed within 10 min. The sealing compound bead must not be spread. Only the approved sealing compound may be used.

Component Identification:

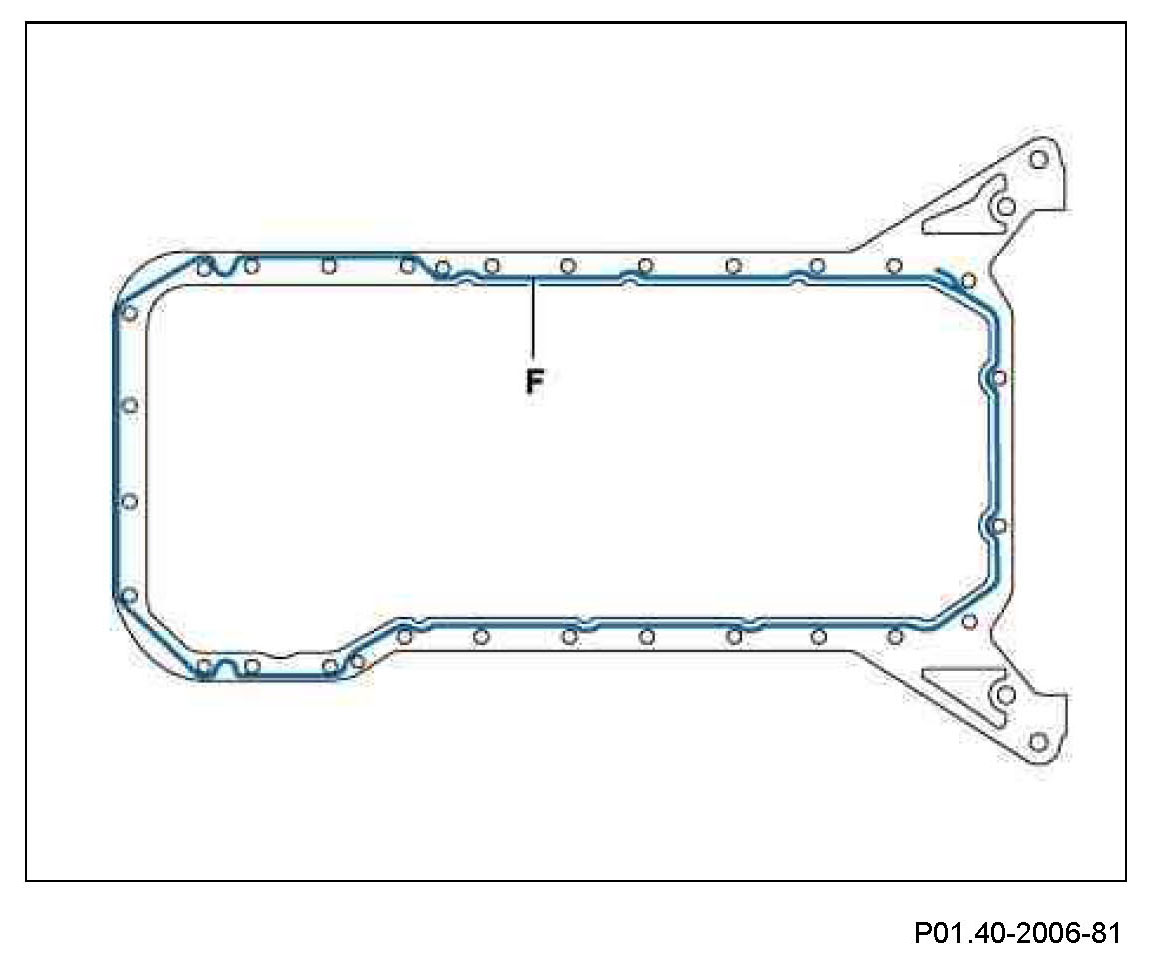

Application of sealing compound to bottom part of oil pan
The line drawn in (F) identifies the course of sealing compound.

The sealing compound must only be applied to the specified surfaces in the form of a bead of 2.0 mm ± 0.5 mm in diameter.

The sealing compound must be processed within 10 min. The sealing compound bead must not be spread. Only the approved sealing compound may be used.
