Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Testing and Inspection >> Test Values For Cylinder Bore

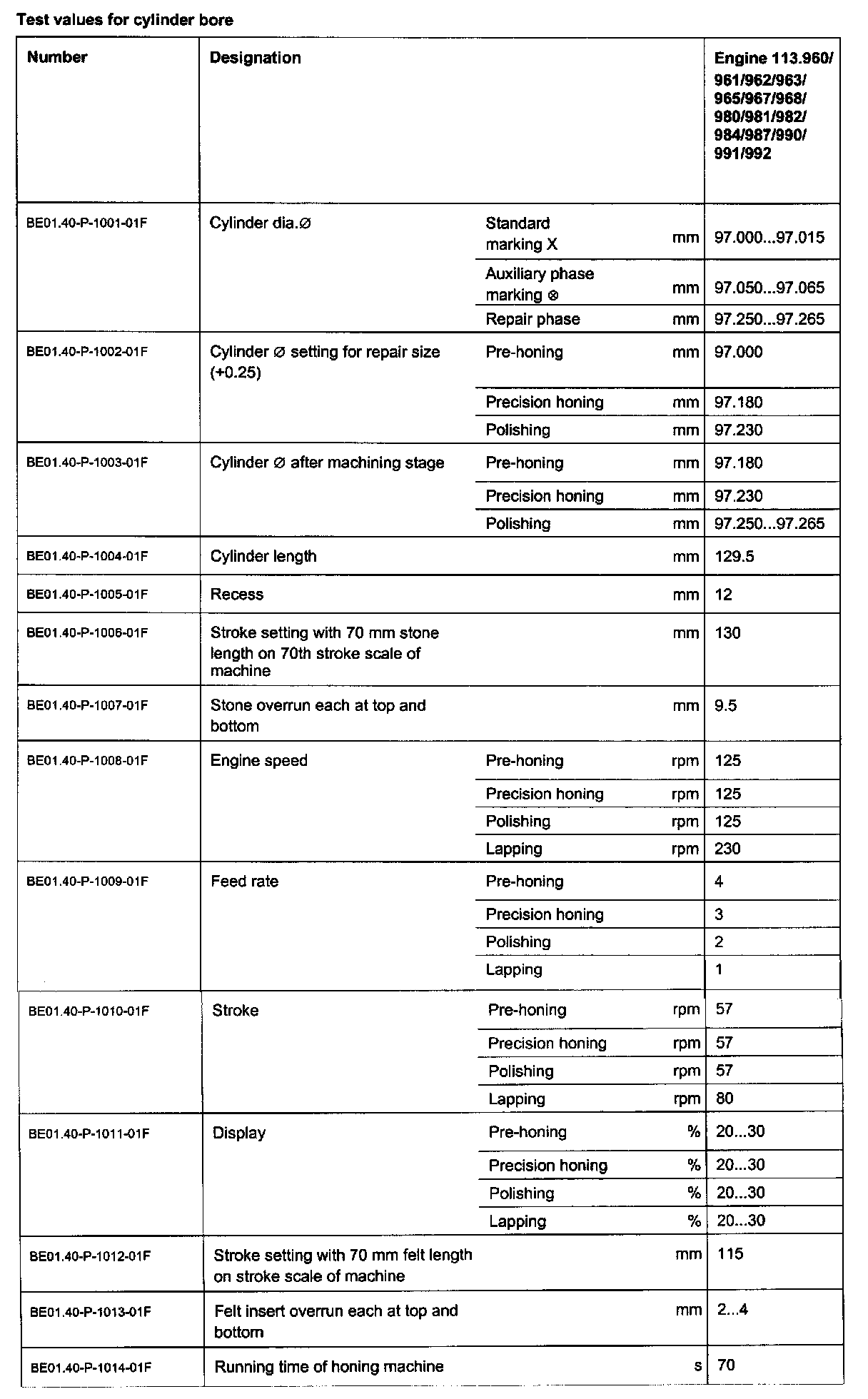

Test Values For Cylinder Bore
















Test values for cylinder bore


Test Values For Cylinder Bore:
