Camshaft, Lifters and Push Rods: Testing and Inspection

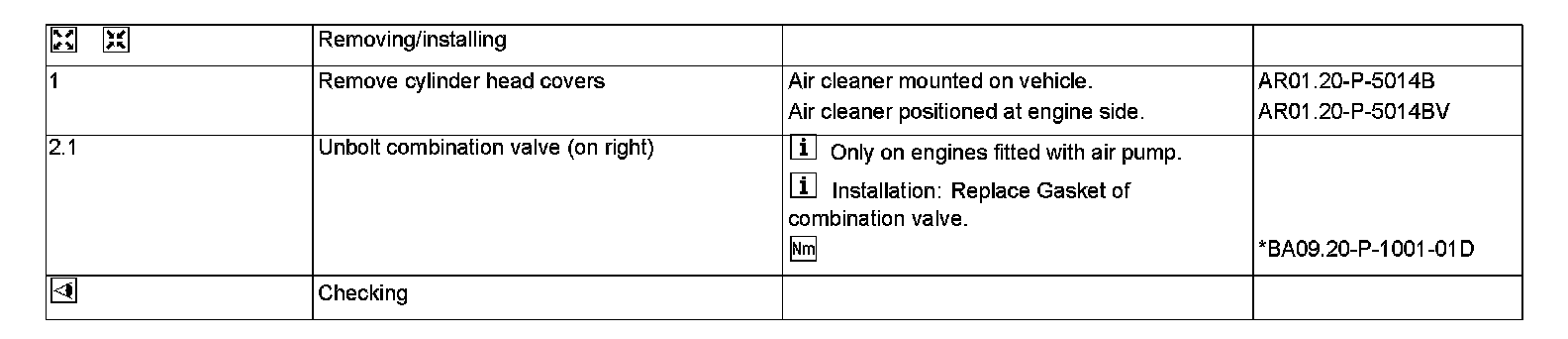

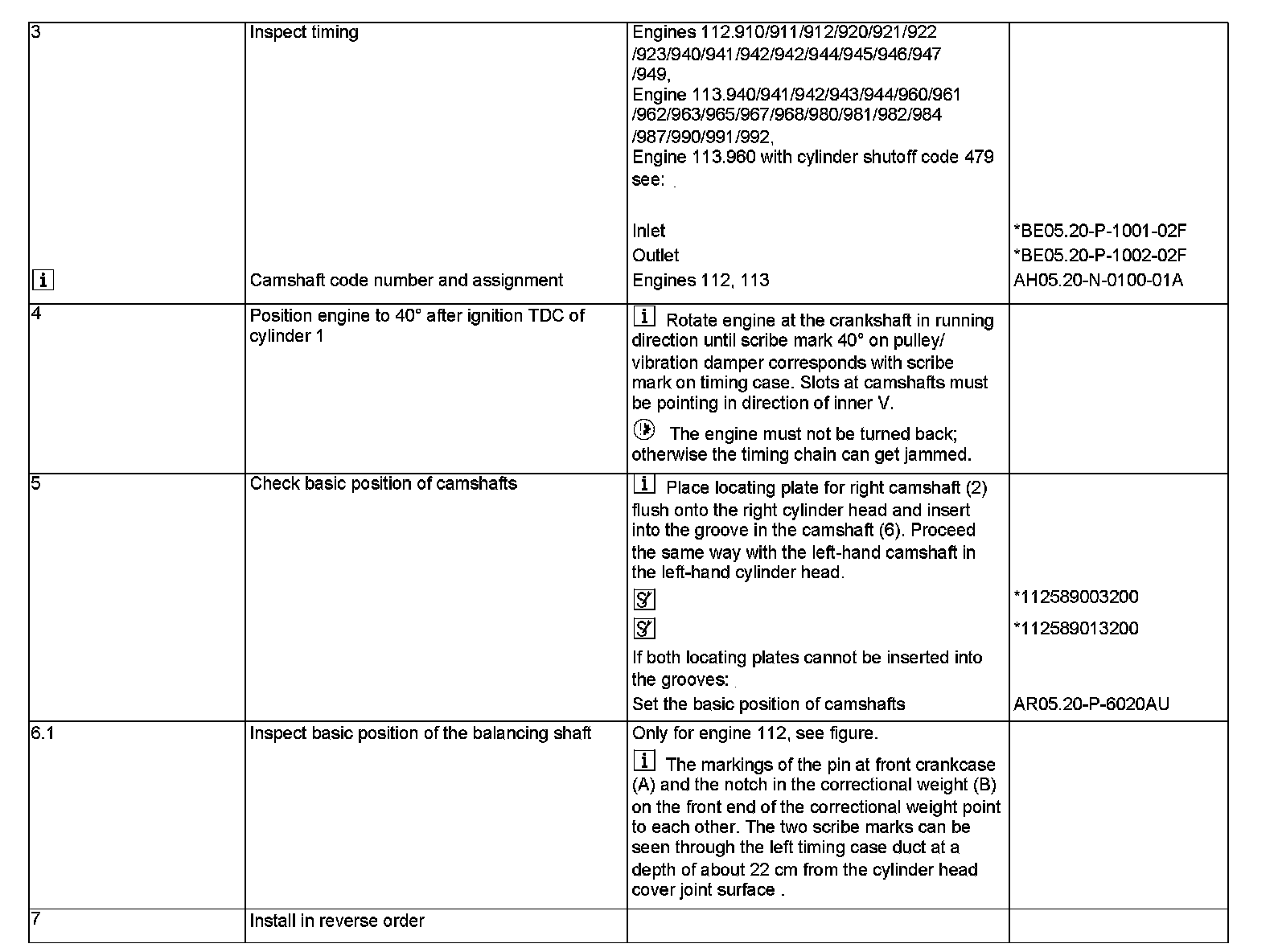

Inspecting timing for engine

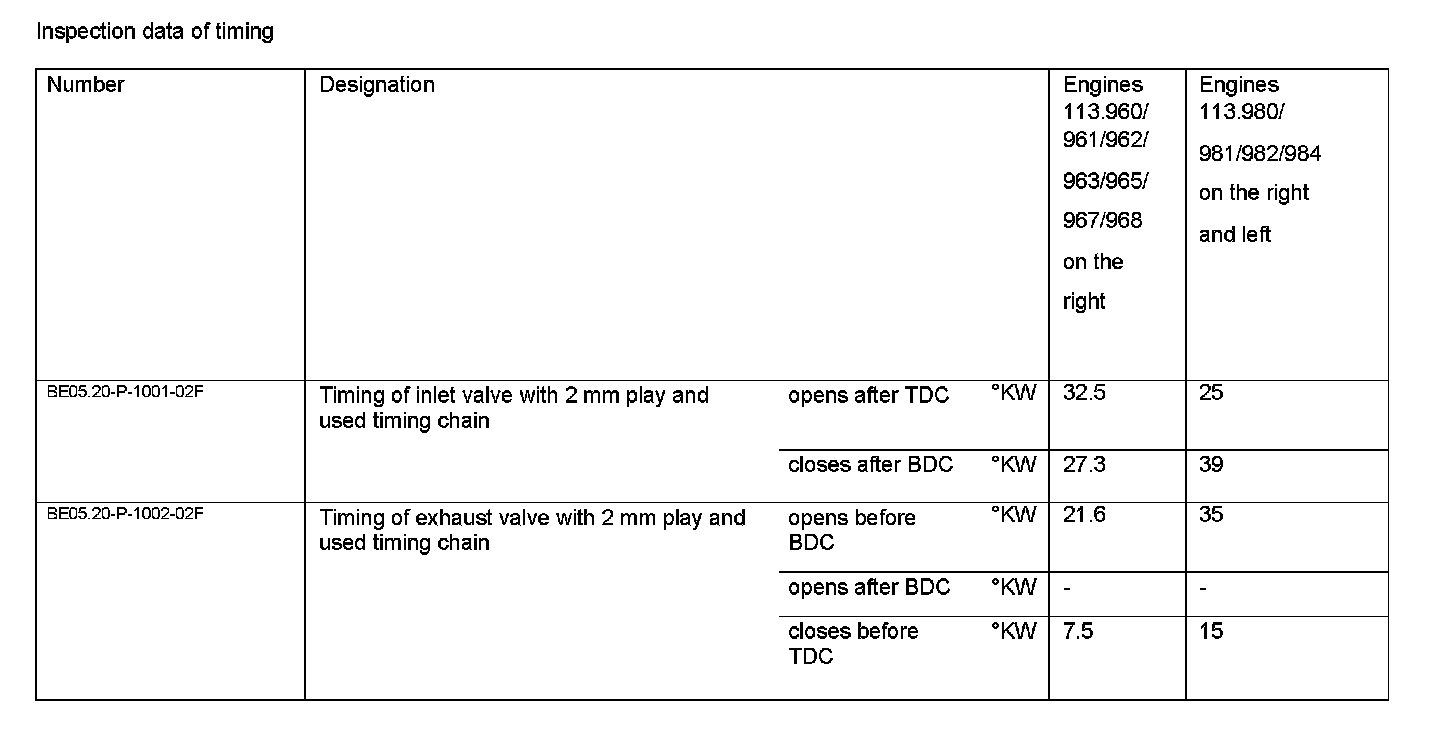

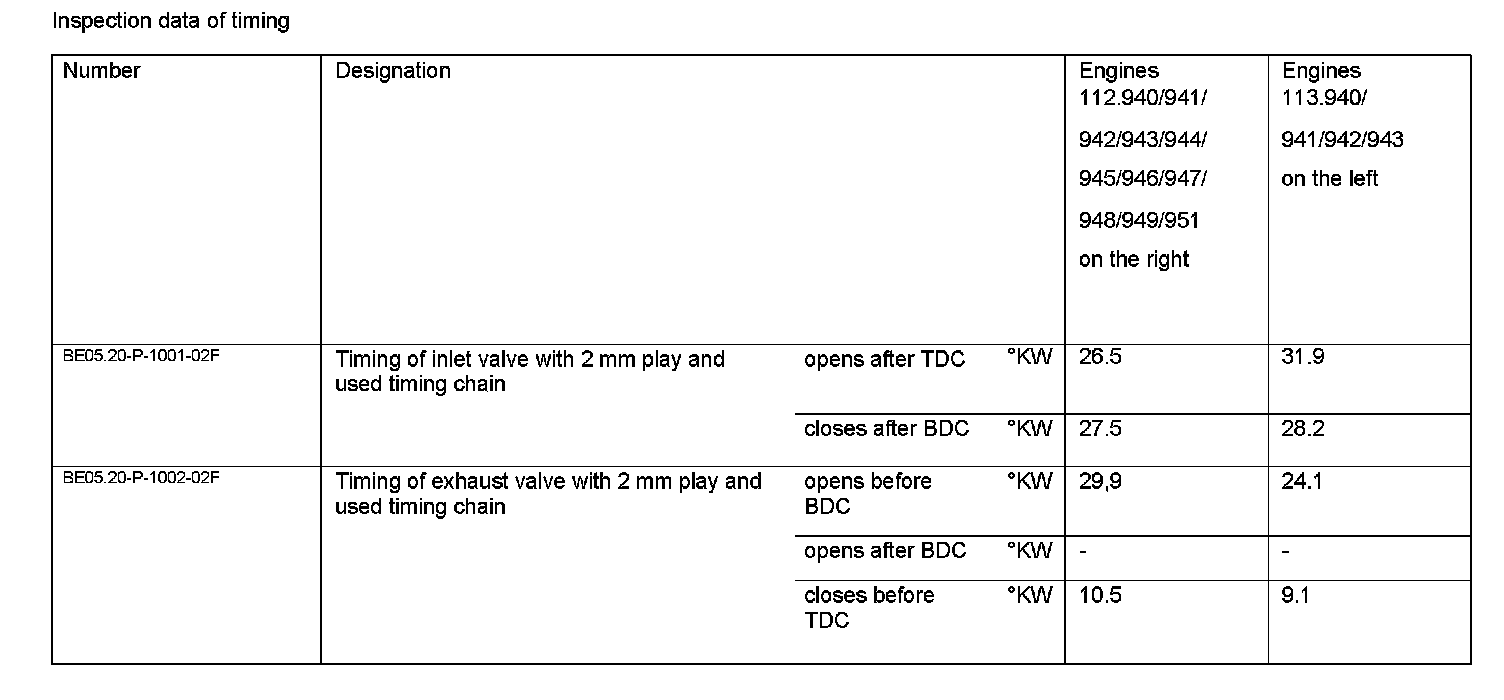

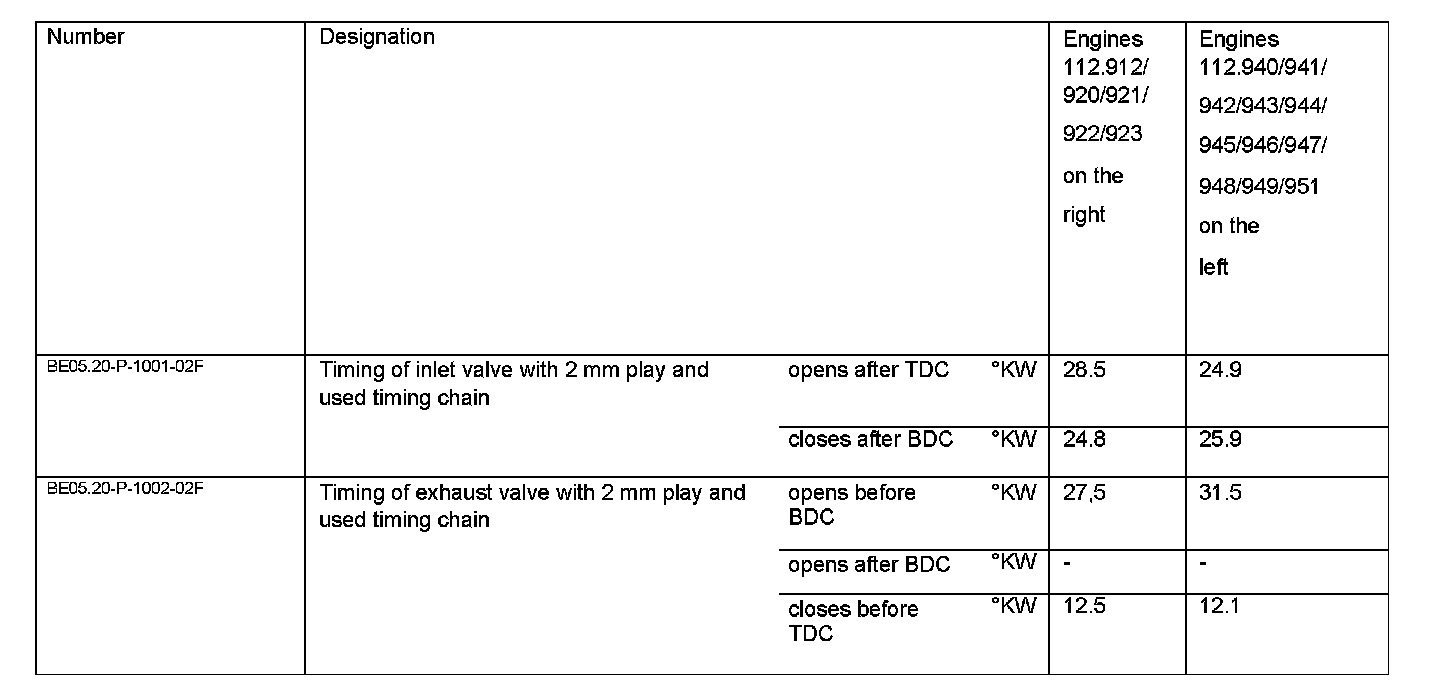

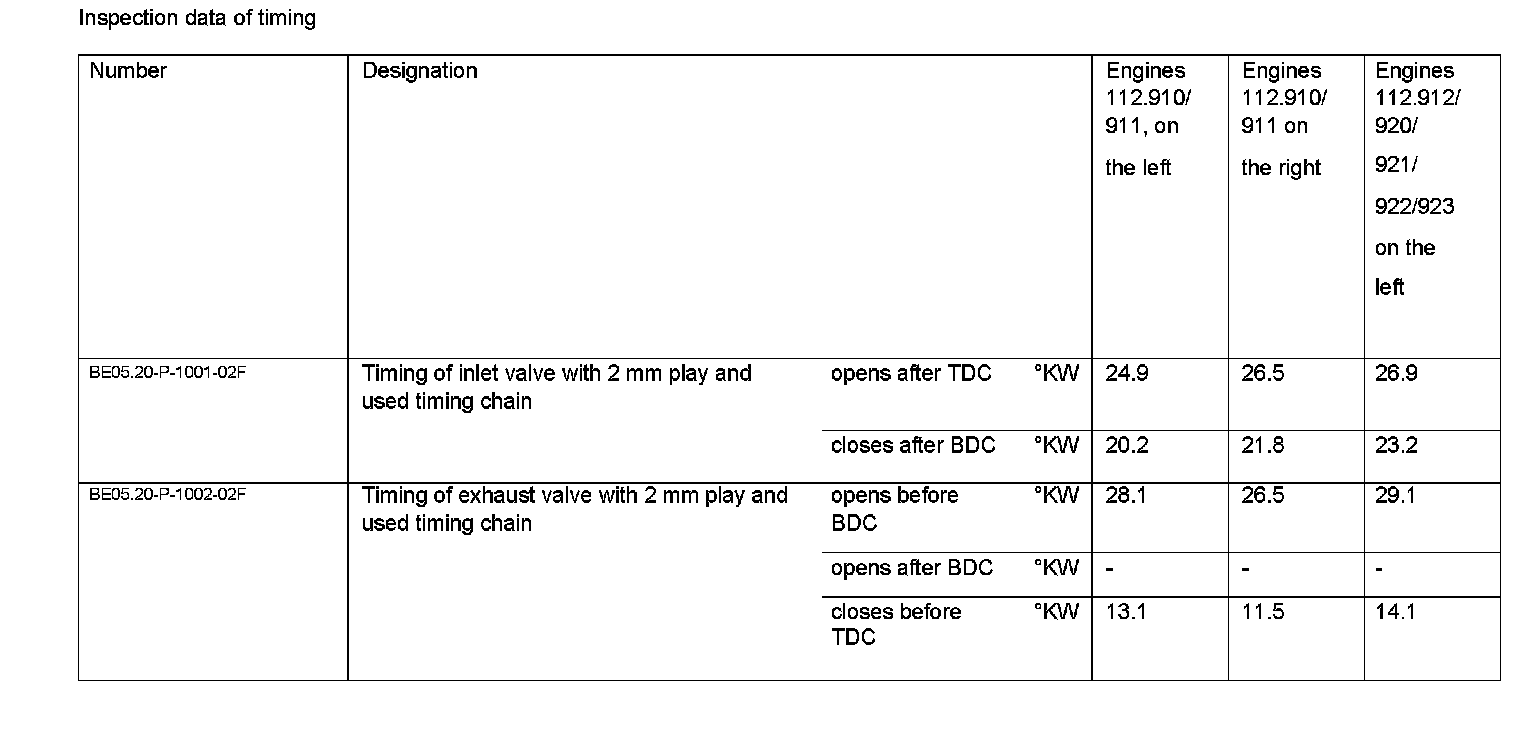

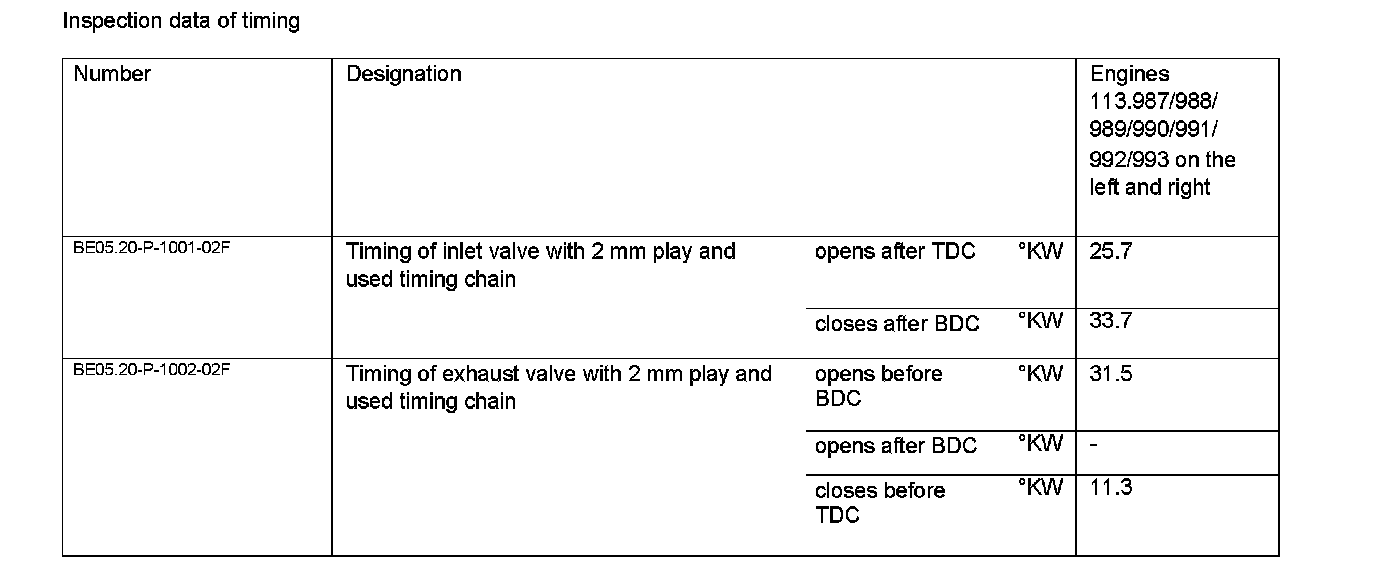

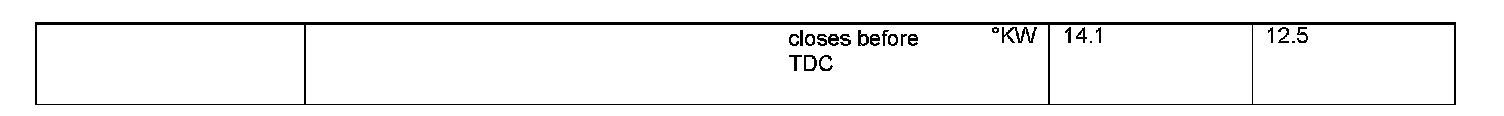

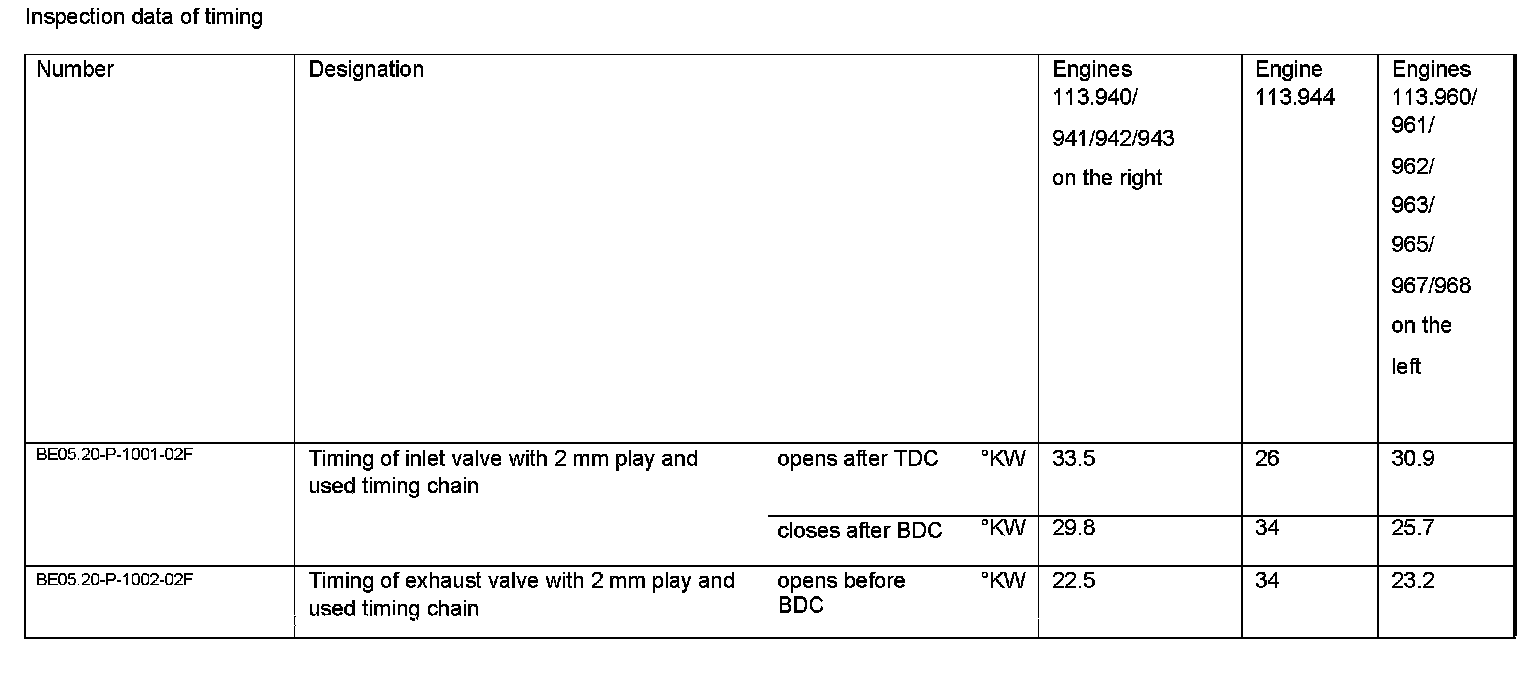

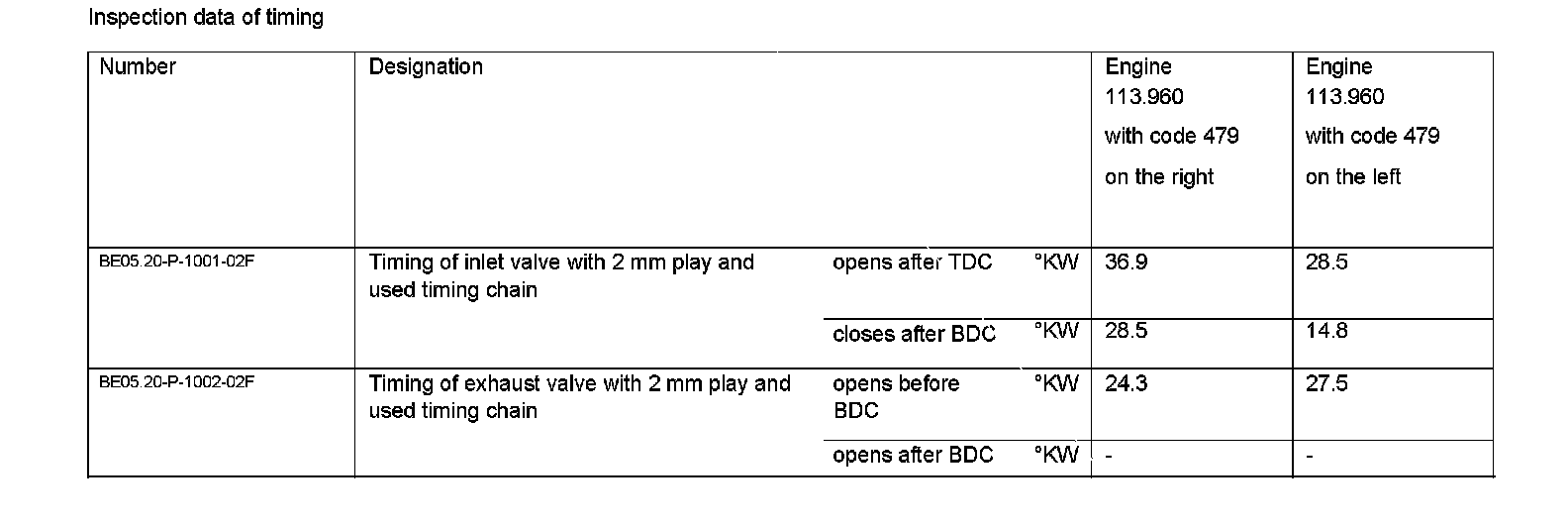

Inspection data of timing:
