Intake Manifold



Intake Manifold Connection Plan (USA Models)

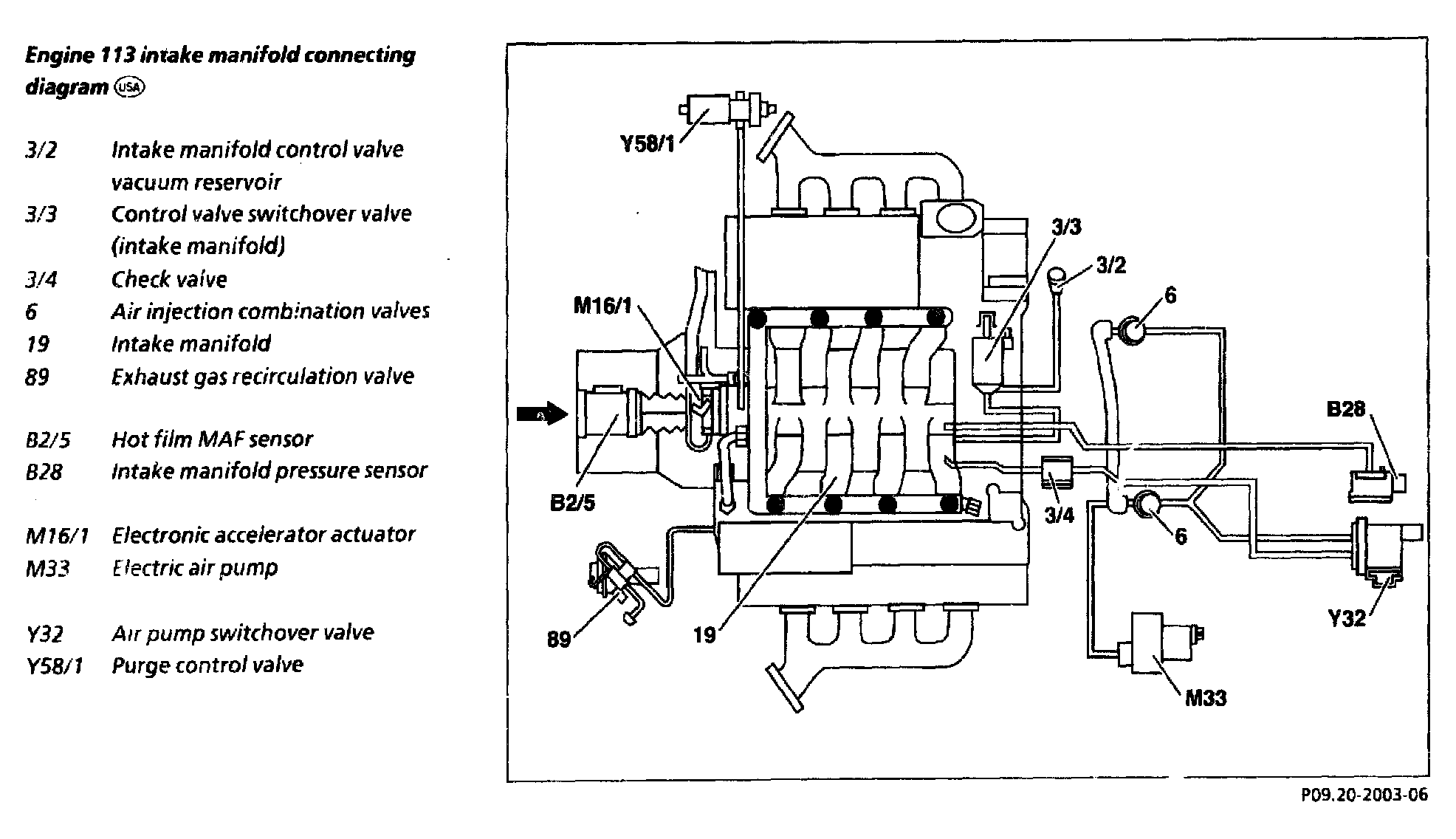

Engine 113 Intake Manifold Connecting Diagram (USA):
