S 500 (220.175) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
By Splice Location
>>
B3.7 Trunk (Right)
B3.7 Trunk (Right)

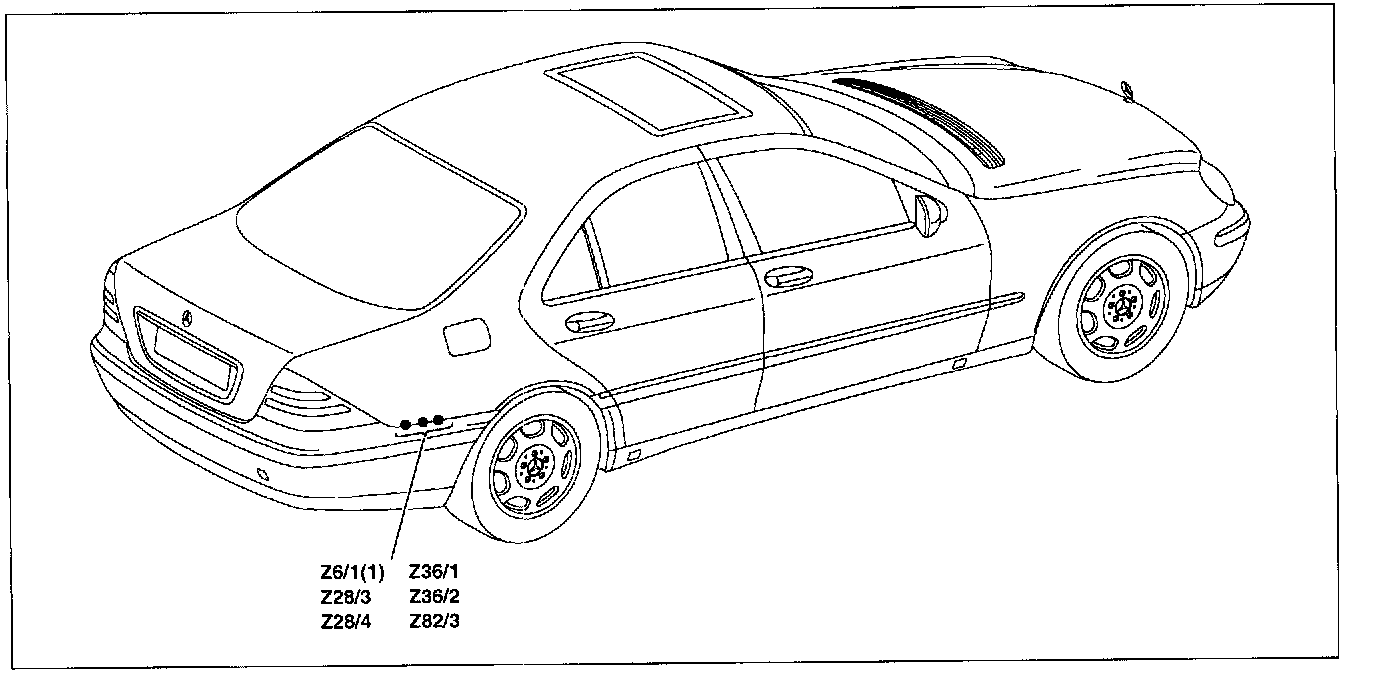

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - trunk (right)
Connector ID
