S 500 (220.175) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
By Splice Location
>>
B3.6 Trunk (Left)
B3.6 Trunk (Left)

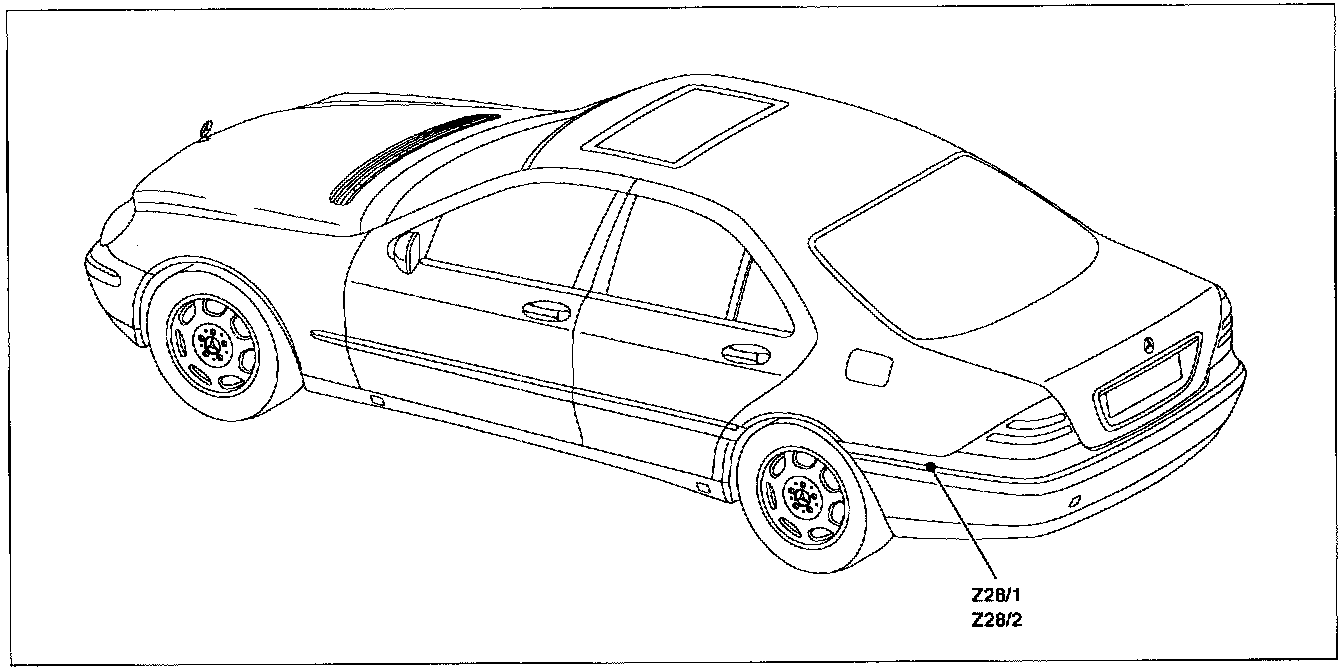

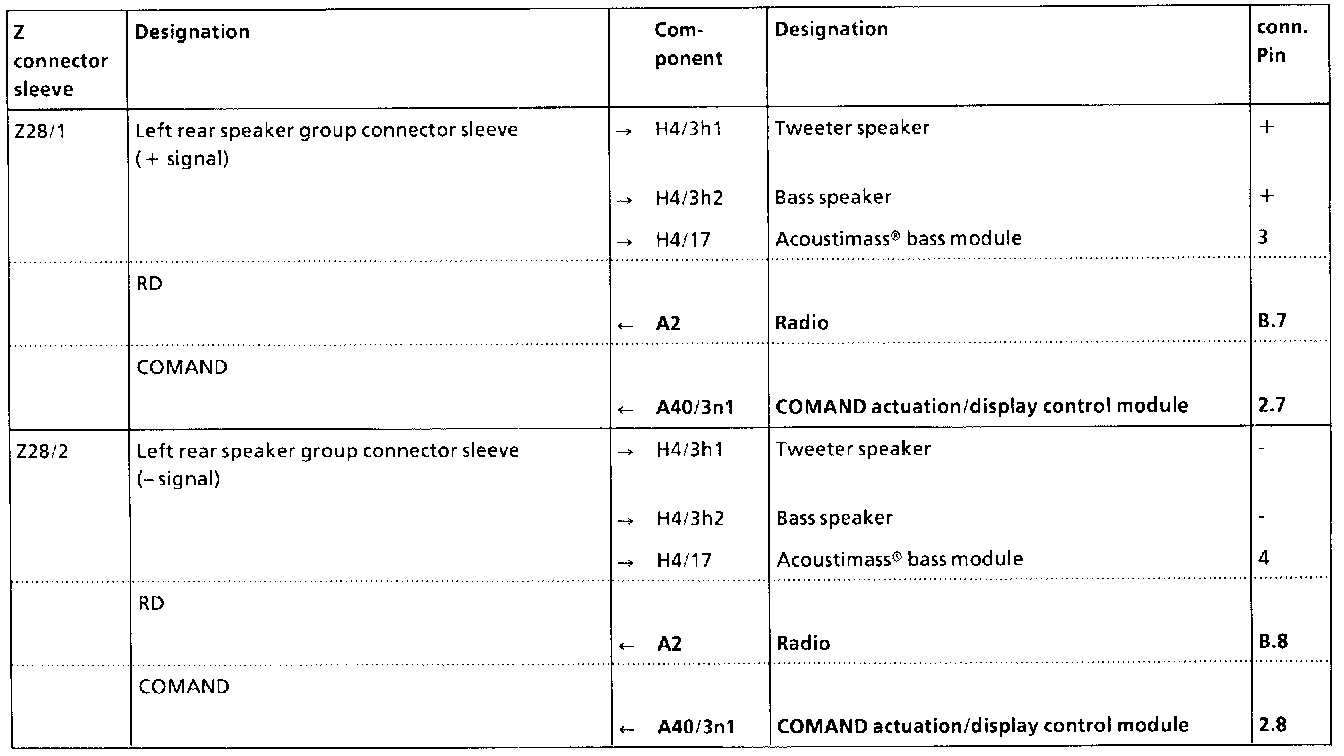

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - trunk (left)
Connector ID
