Oil Pan, Engine
Oil Pan, Engine
AR01.45-P-7500-06F
Oil pan
bolt diagram

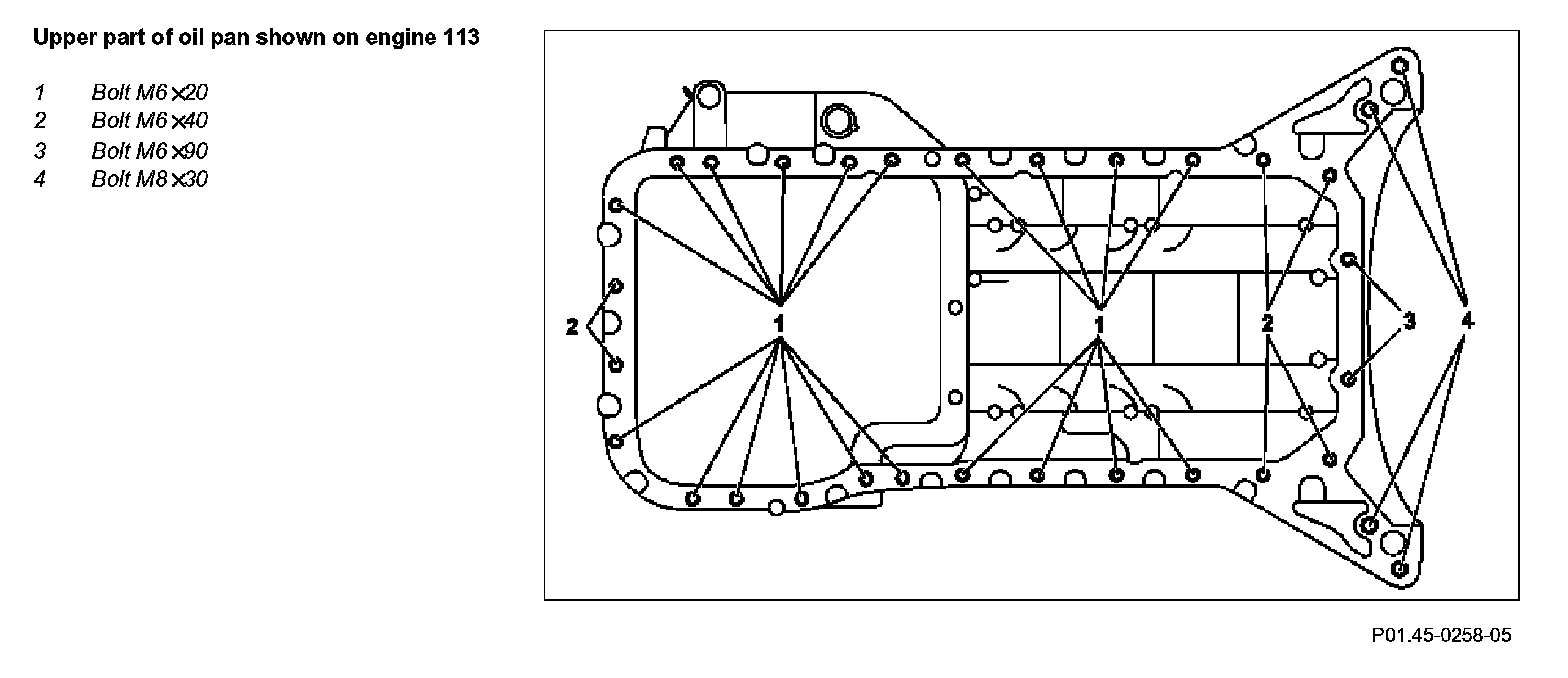

Component Identification:

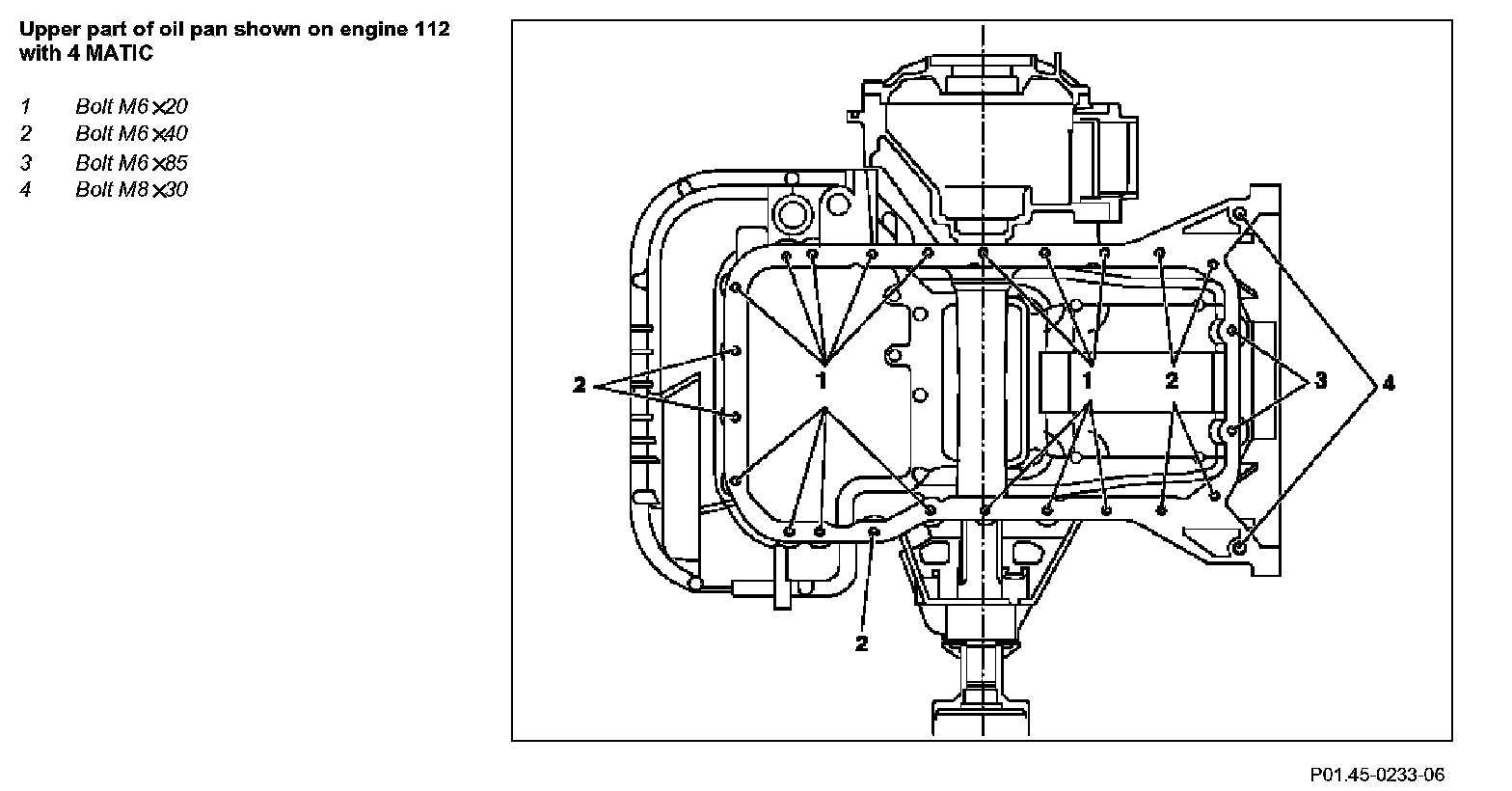

Component Identification:

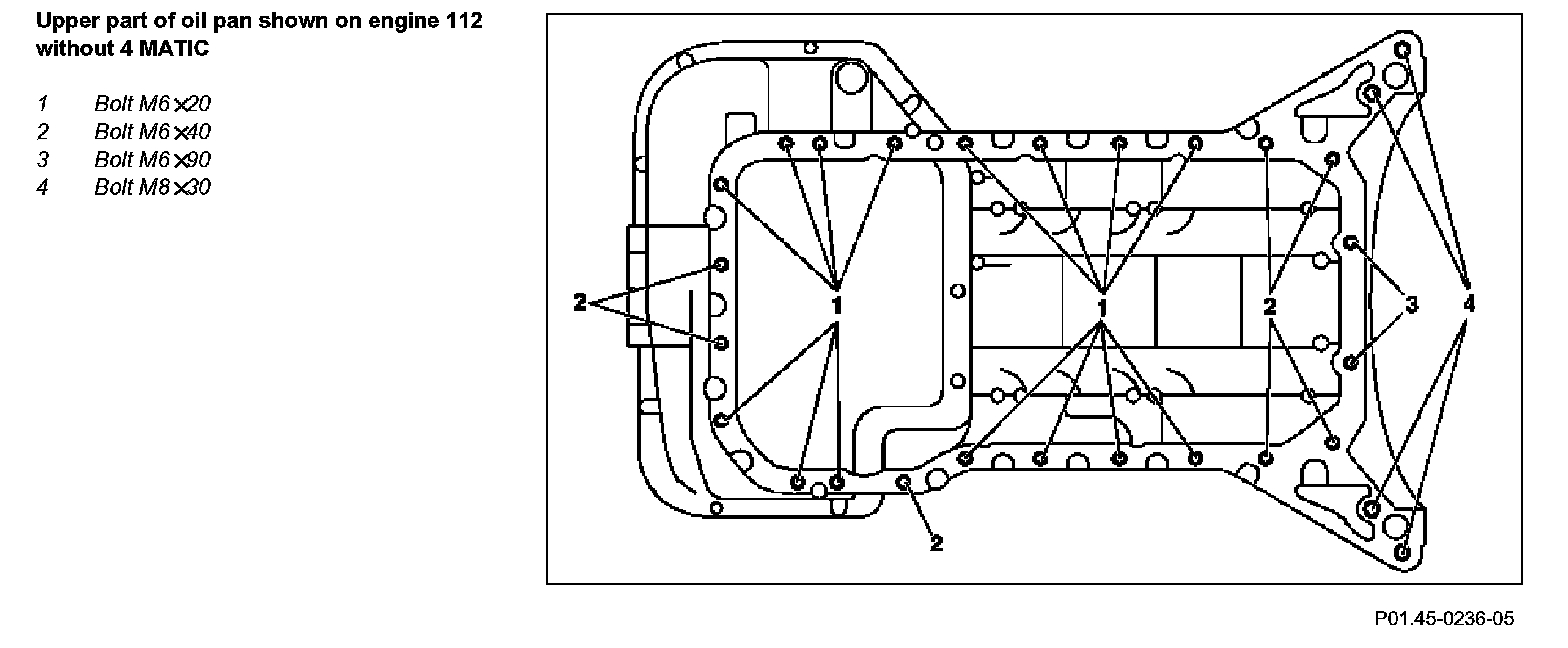

Component Identification:
