B2.7 Trunk (Right)

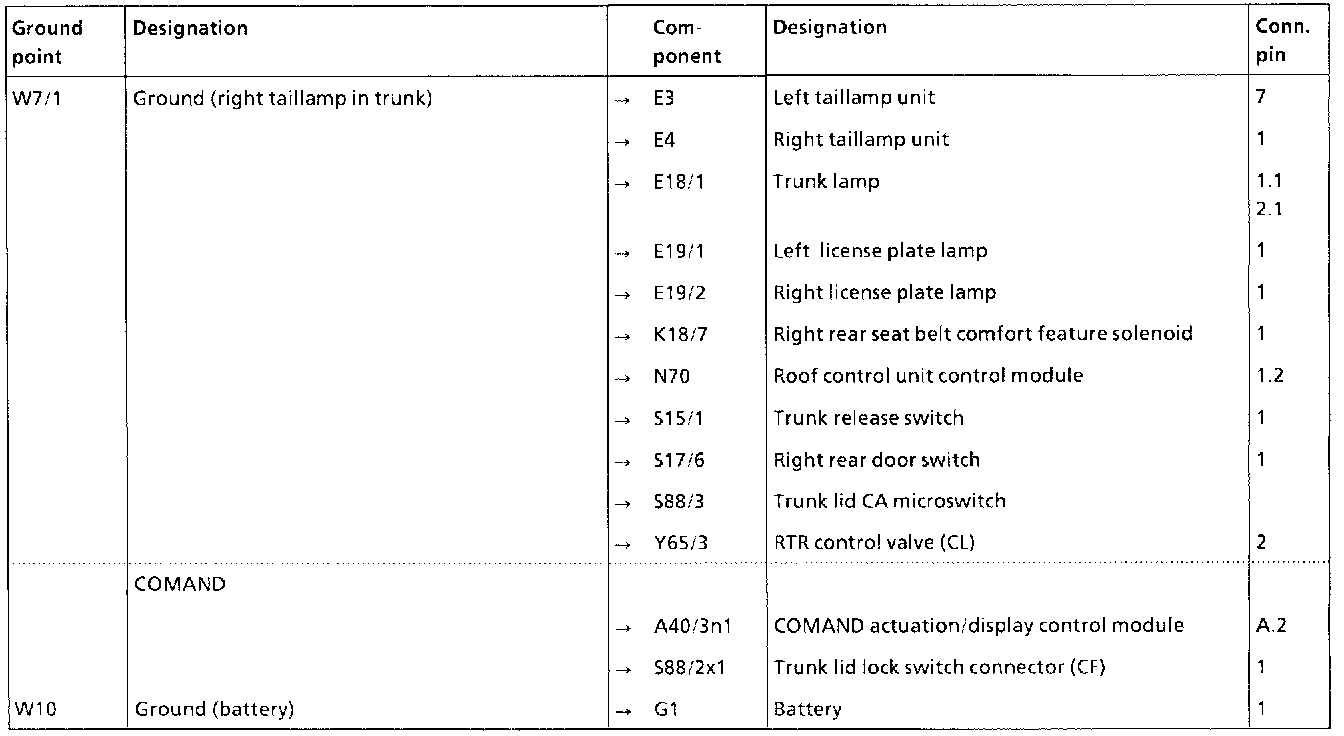

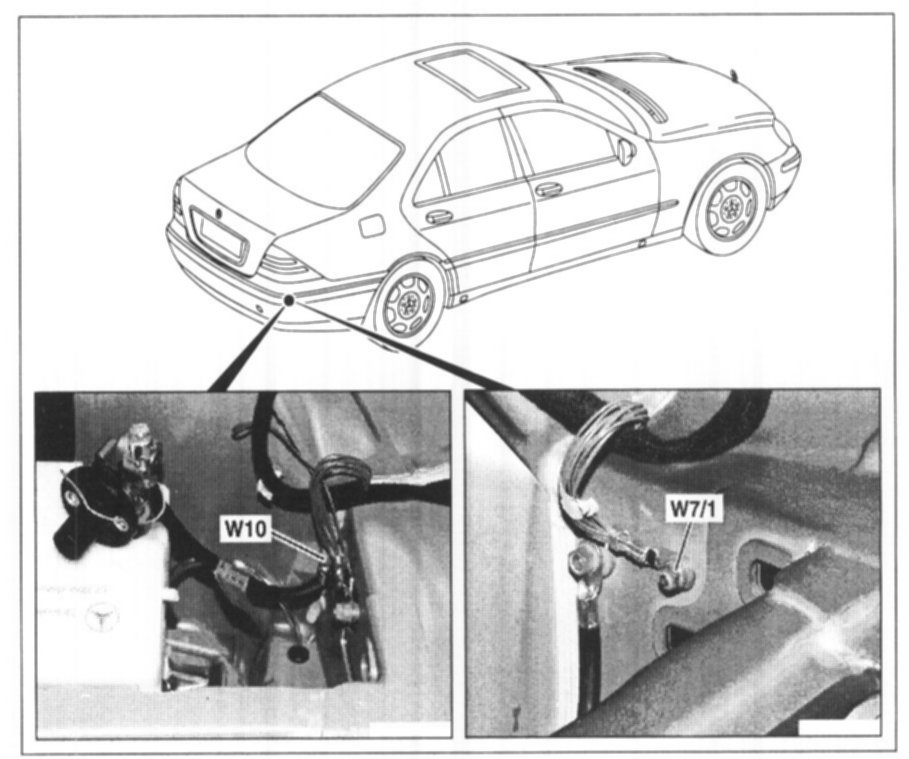

Arrangement and assignment of ground terminals, trunk (right)







Connector ID
