B2.2 Engine Compartments (Right)

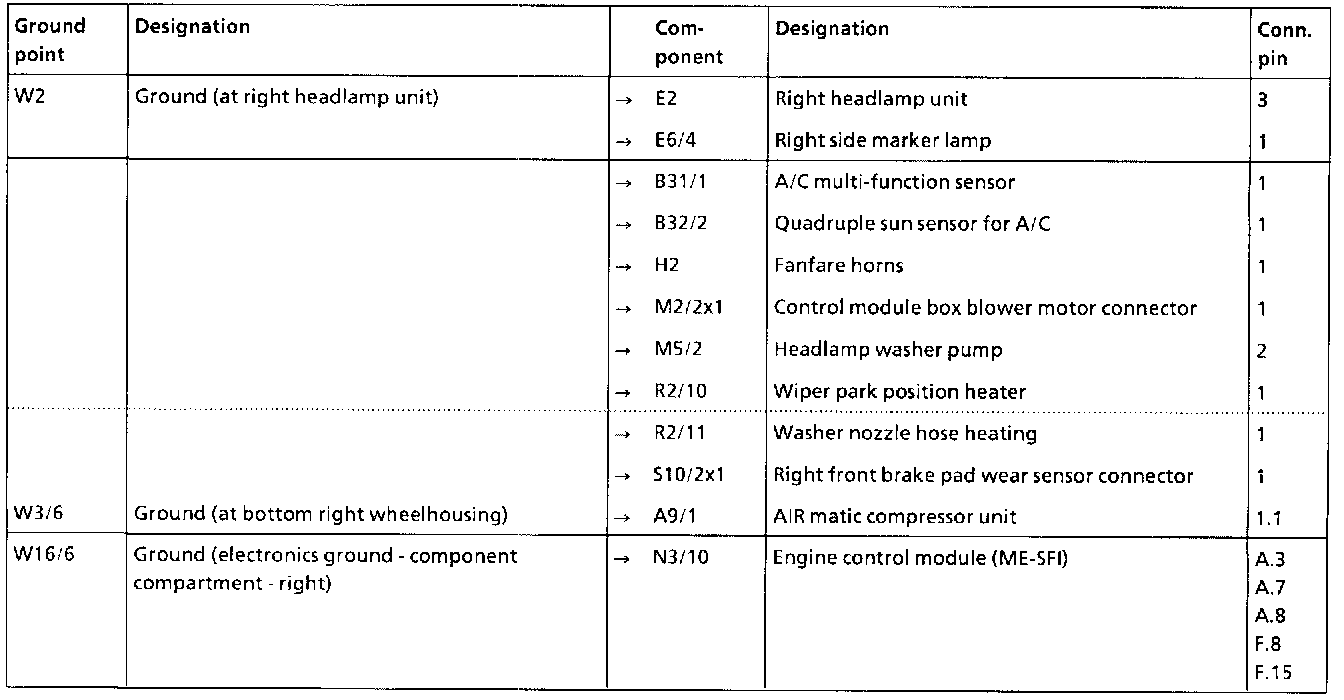

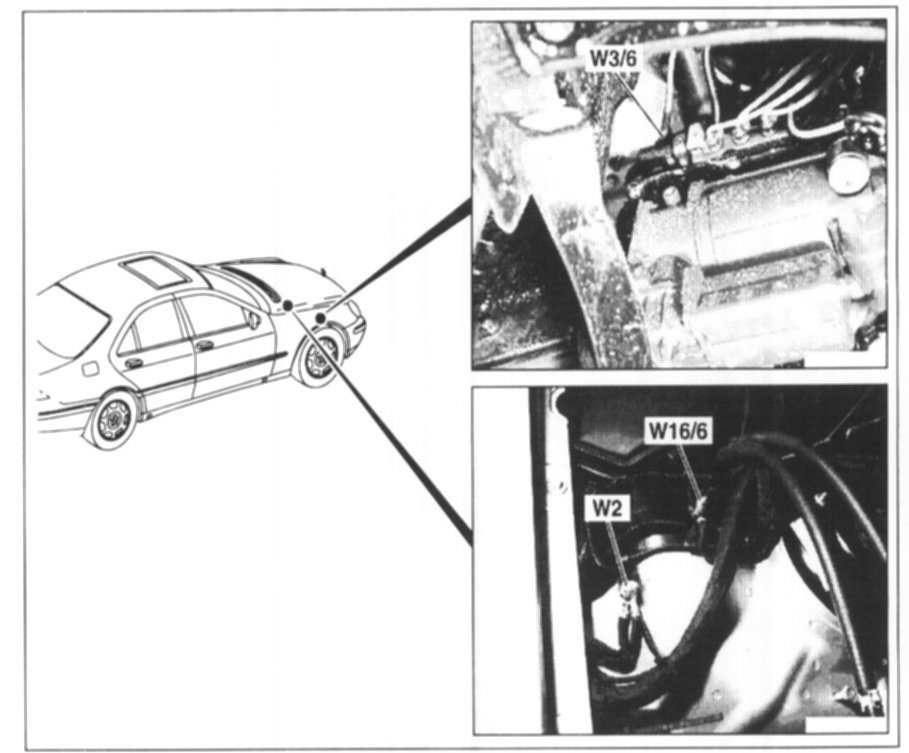

Arrangement and assignment of ground terminals, engine compartment (right)







Connector ID
