B2.1 Engine Compartments (Left)

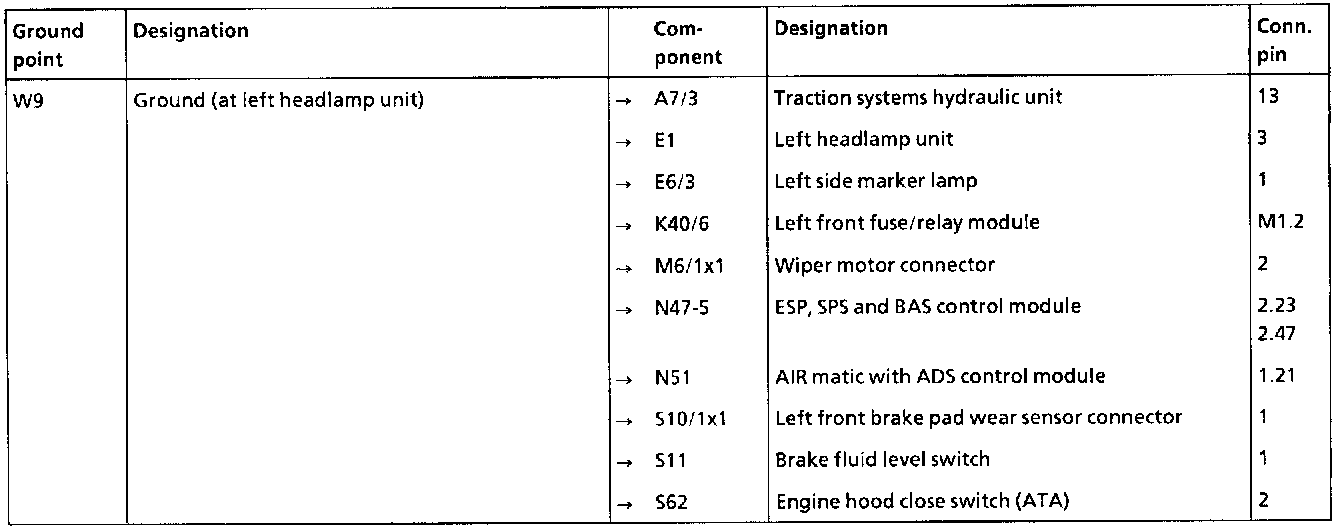

Arrangement and assignment of ground terminals, engine compartment (left)







Connector ID
