Headlamp Cleaning System (HCS) PE82.15-U-2000SA



Headlamp Cleaning Systems (HCS) PE82.15-U-2000SA

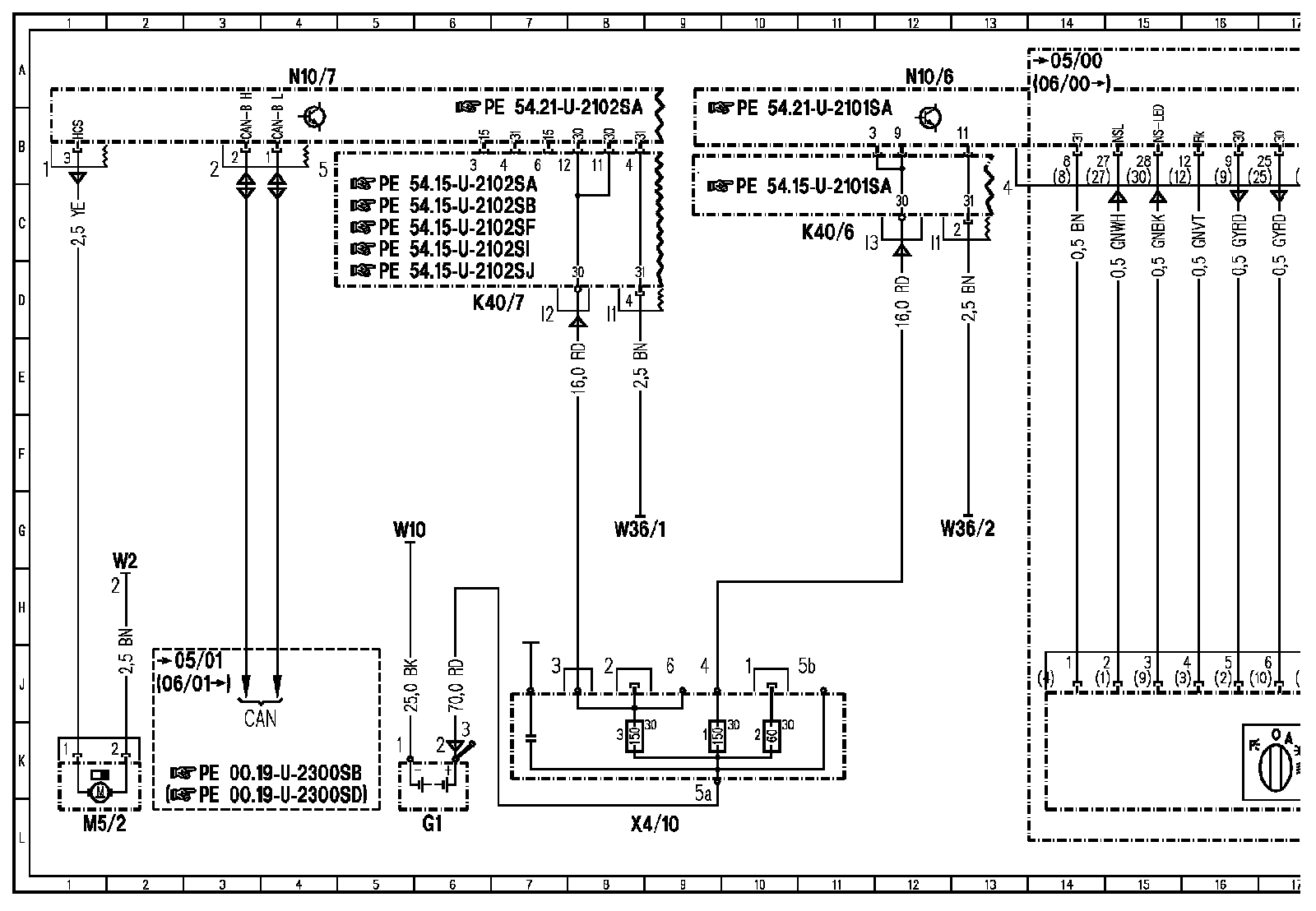

Wiring Diagram, Part 1:

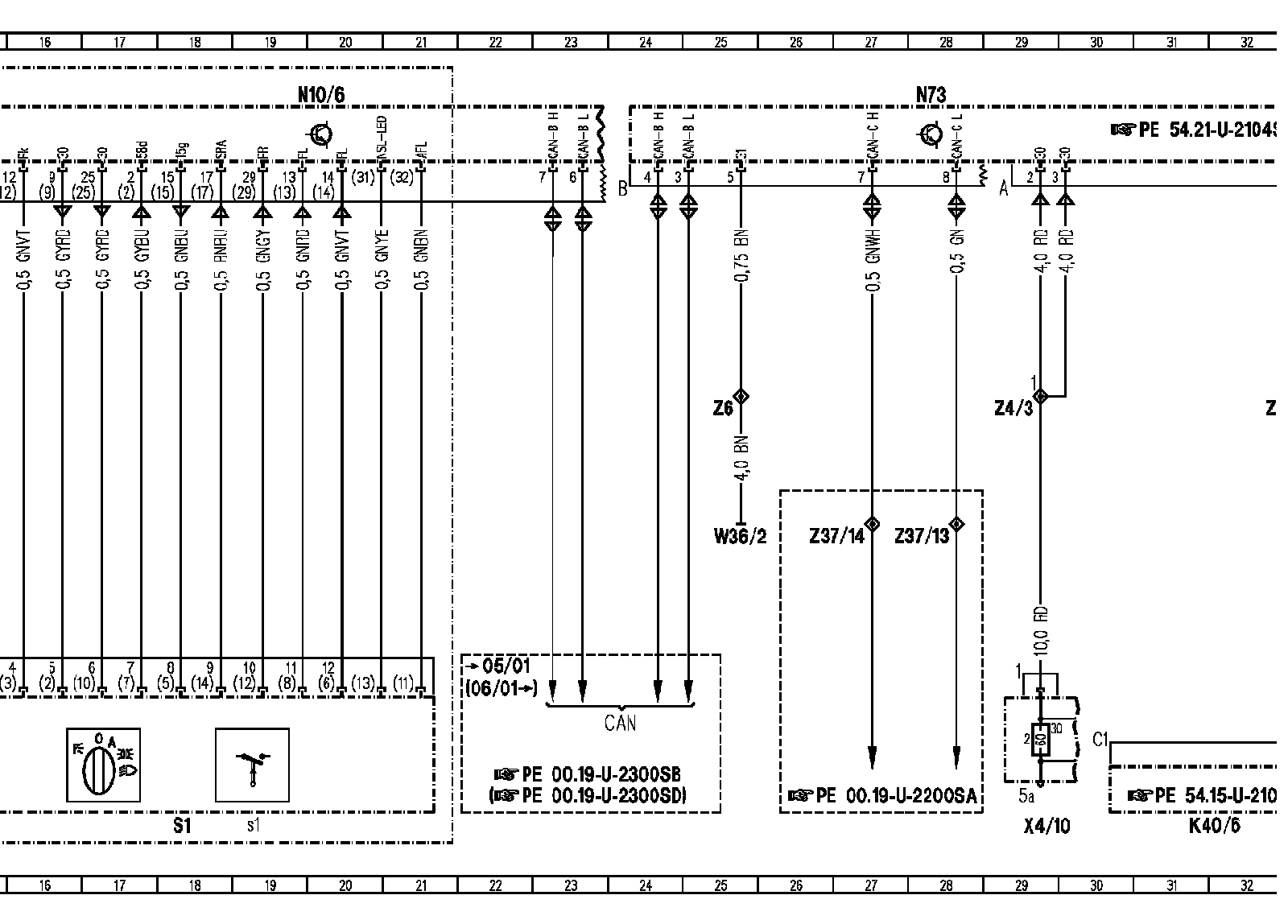

Wiring Diagram, Part 2:

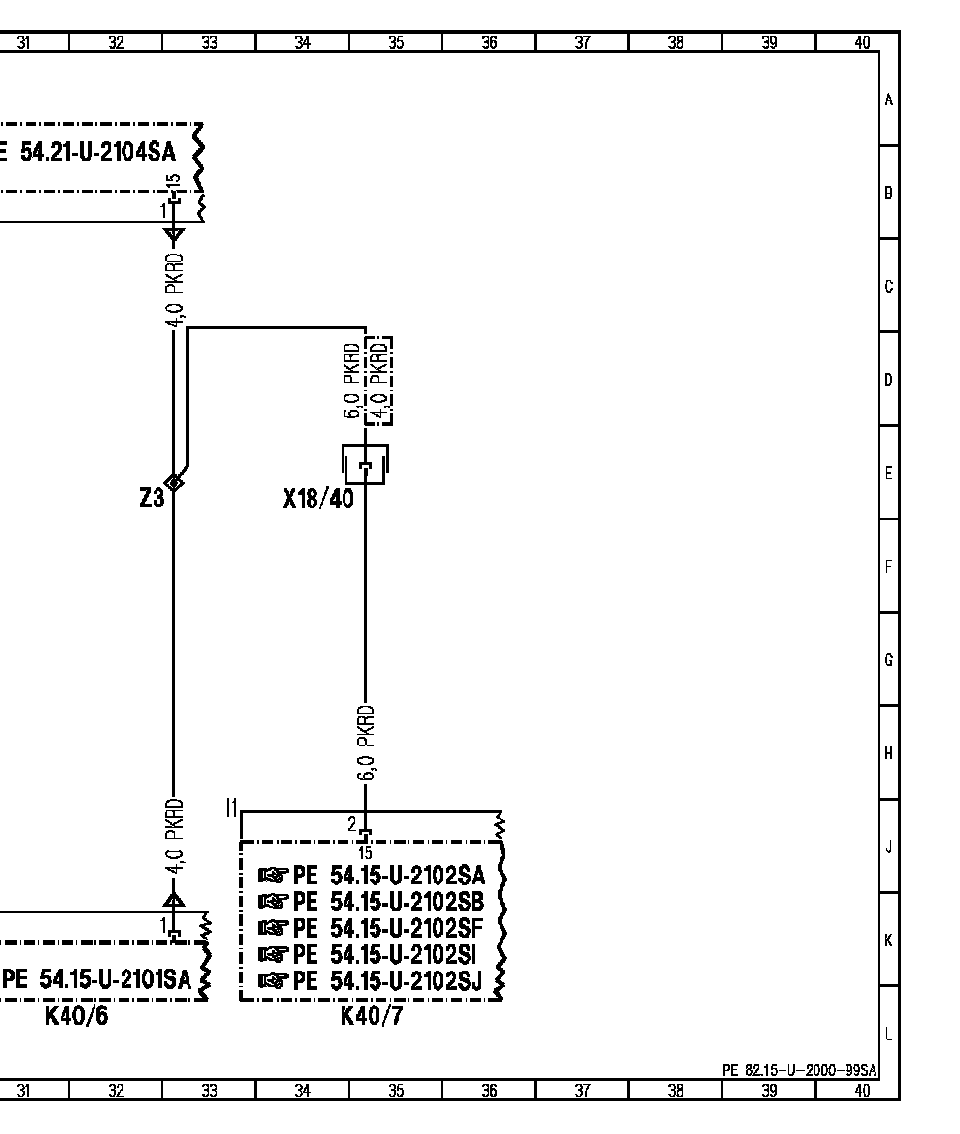

Wiring Diagram, Part 3:





Component Description/Coordinates, G1 to Z37/14:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
