Battery, Power Supply PE54.10-U-2000SA (Sheet 1)

Battery, Power Supply PE54.10-U-2000SA
- Circuit 30 terminal block and fuse box, X4/10

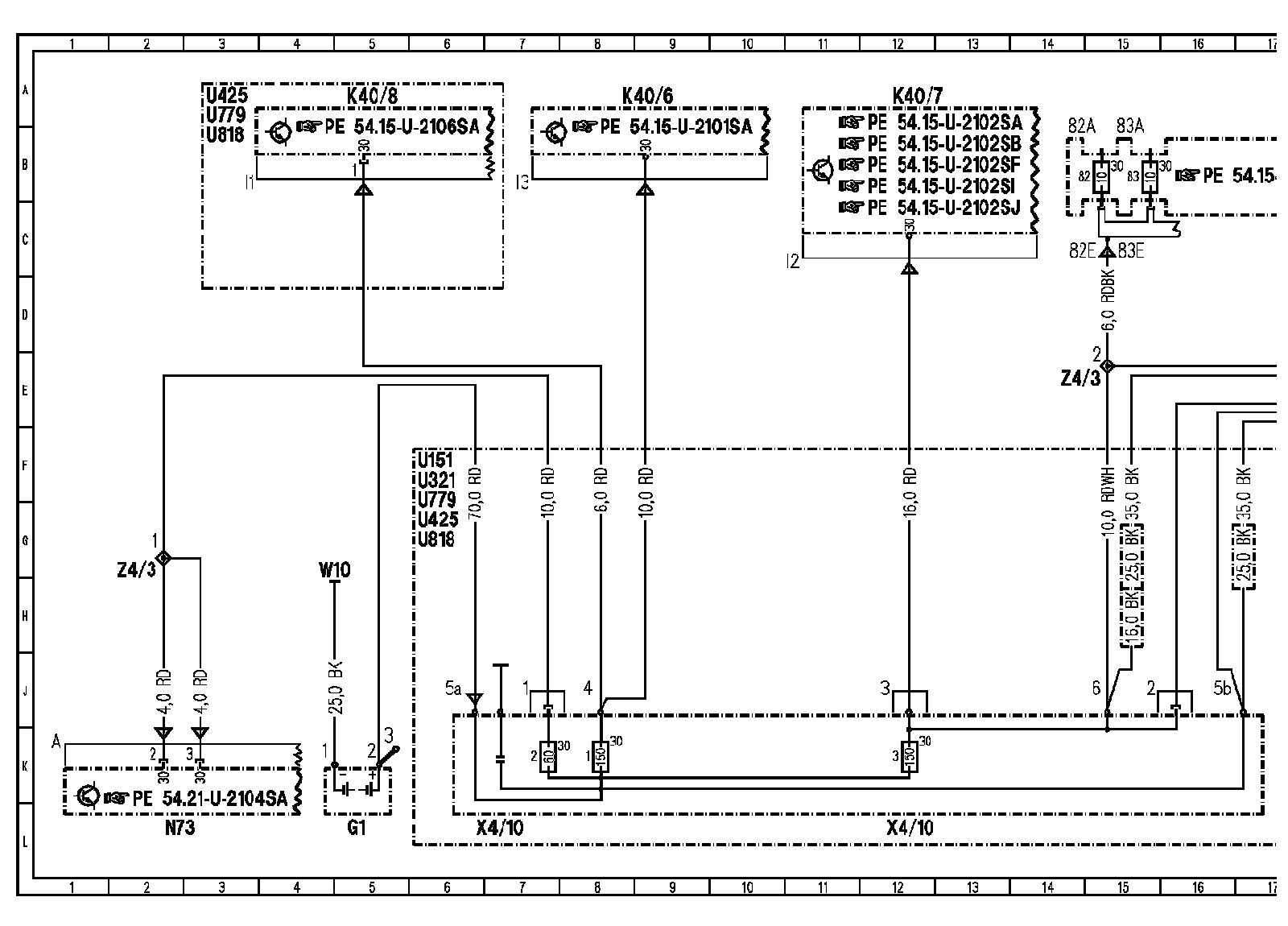

Wiring Diagram, Part 1:

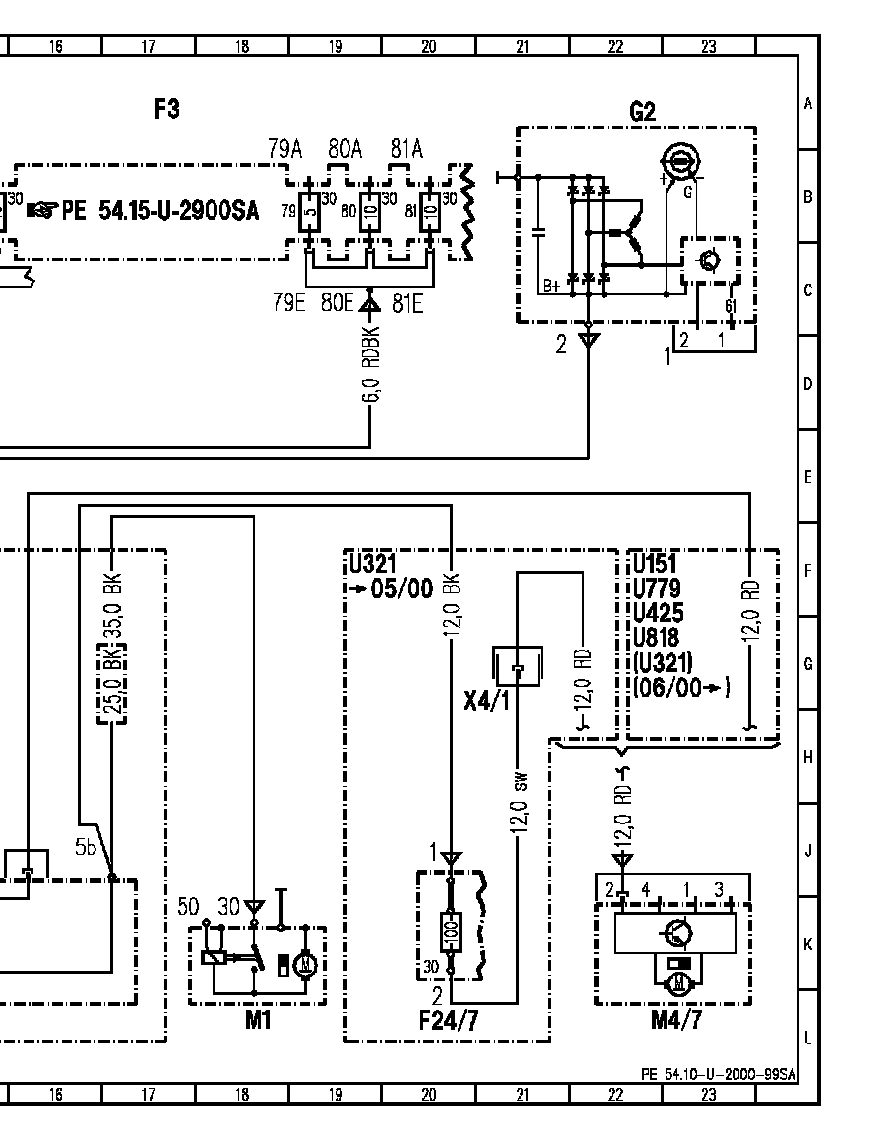

Wiring Diagram, Part 2:

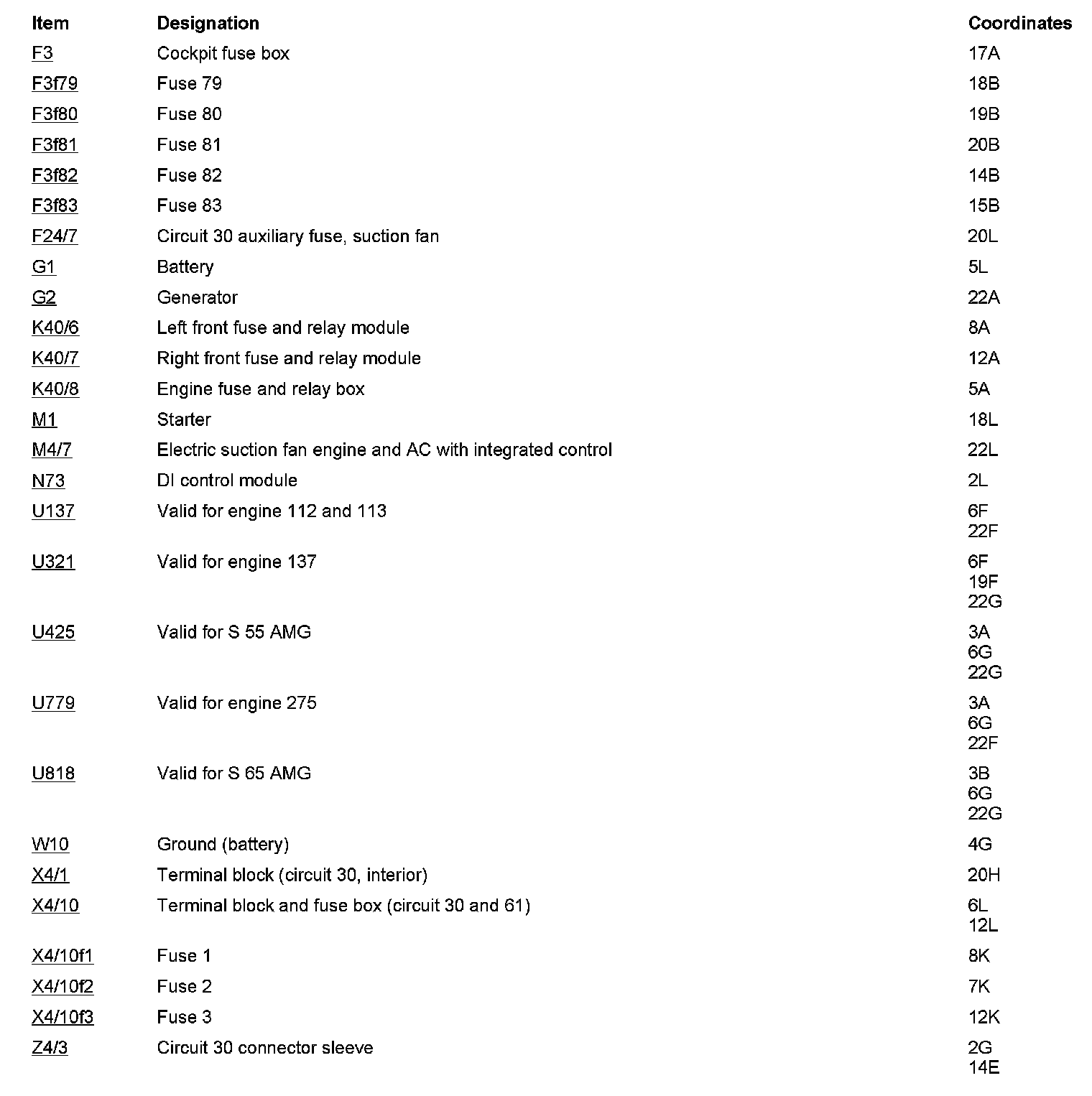

Component Description/Coordinates, F3 to Z4/3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
