S 500 (220.175) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Ignition Switch
Ignition Switch

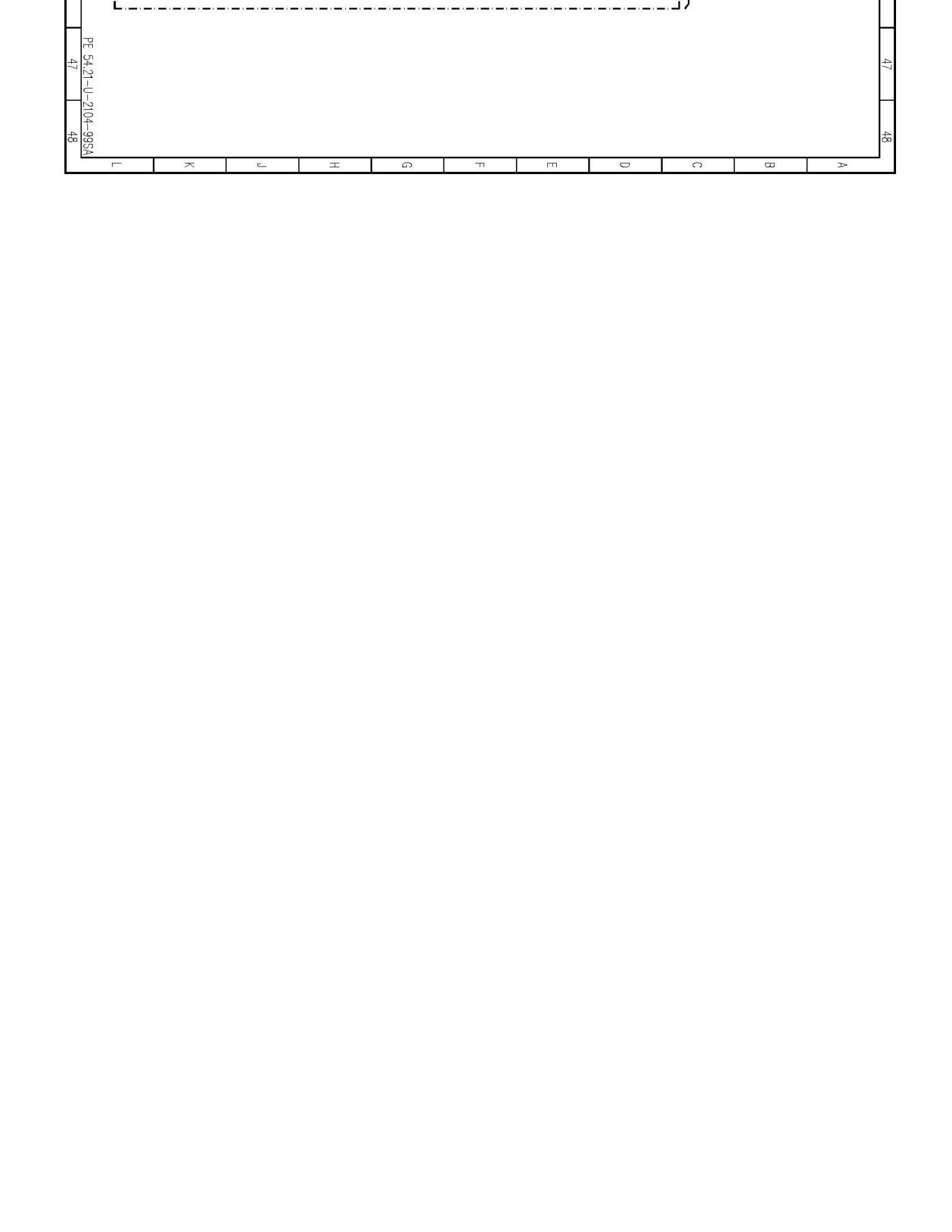

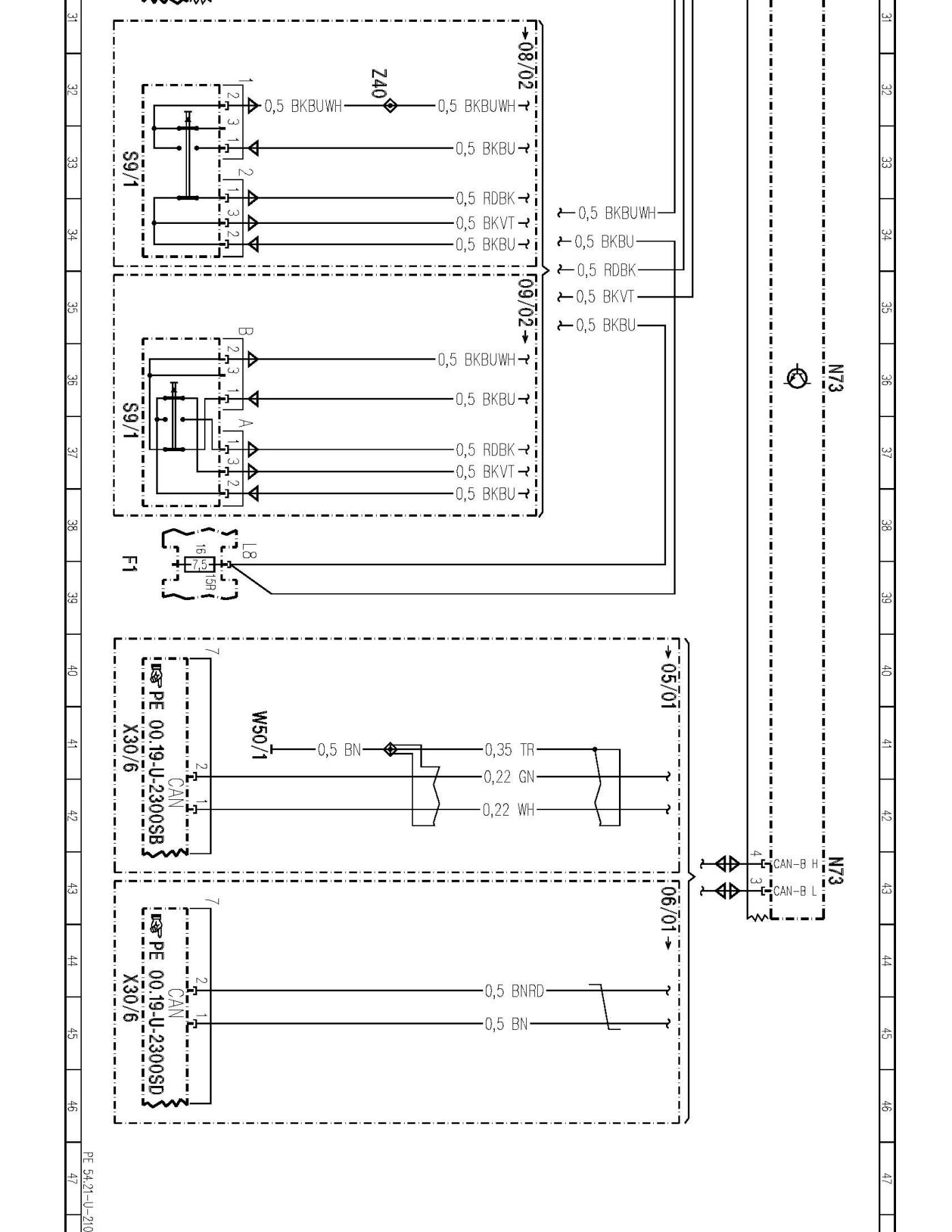

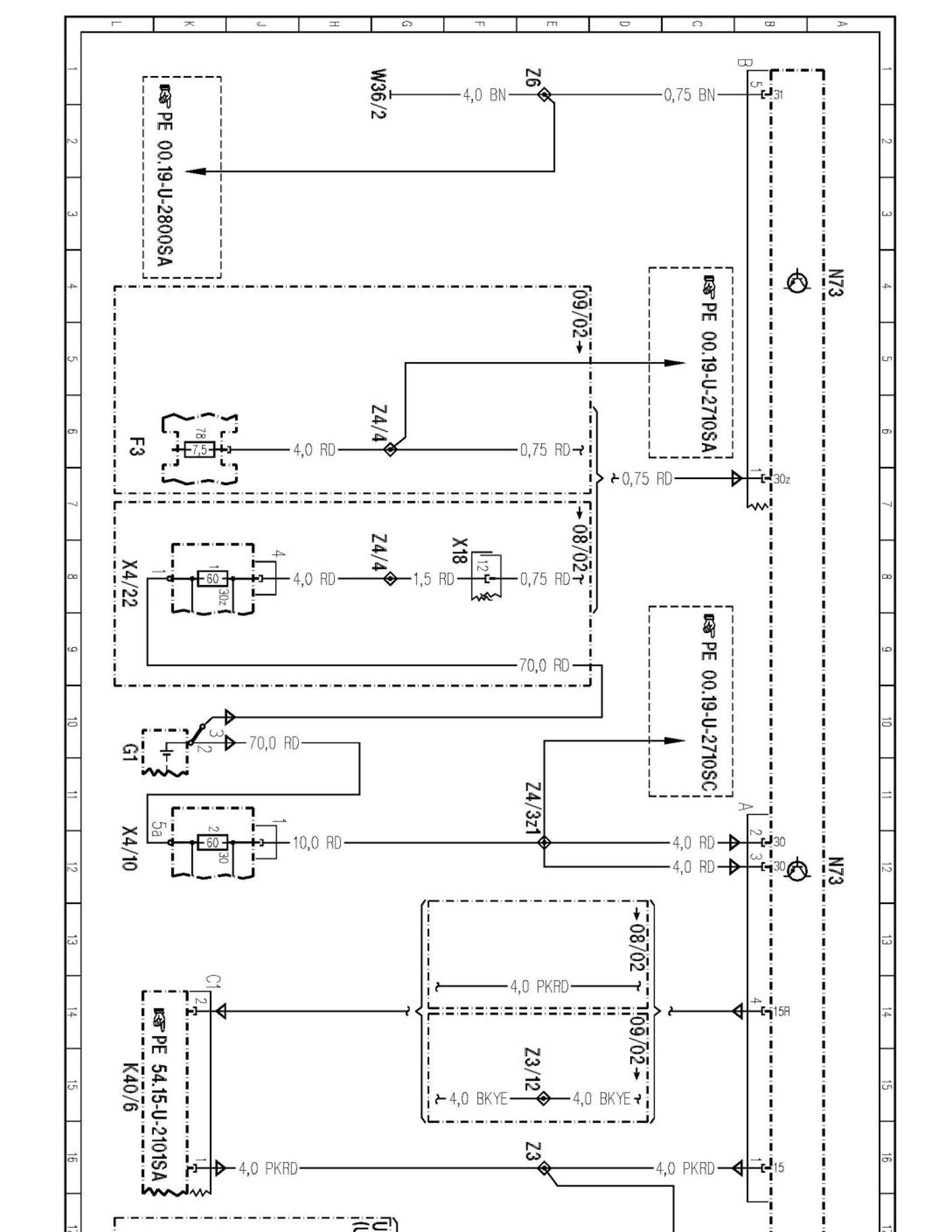

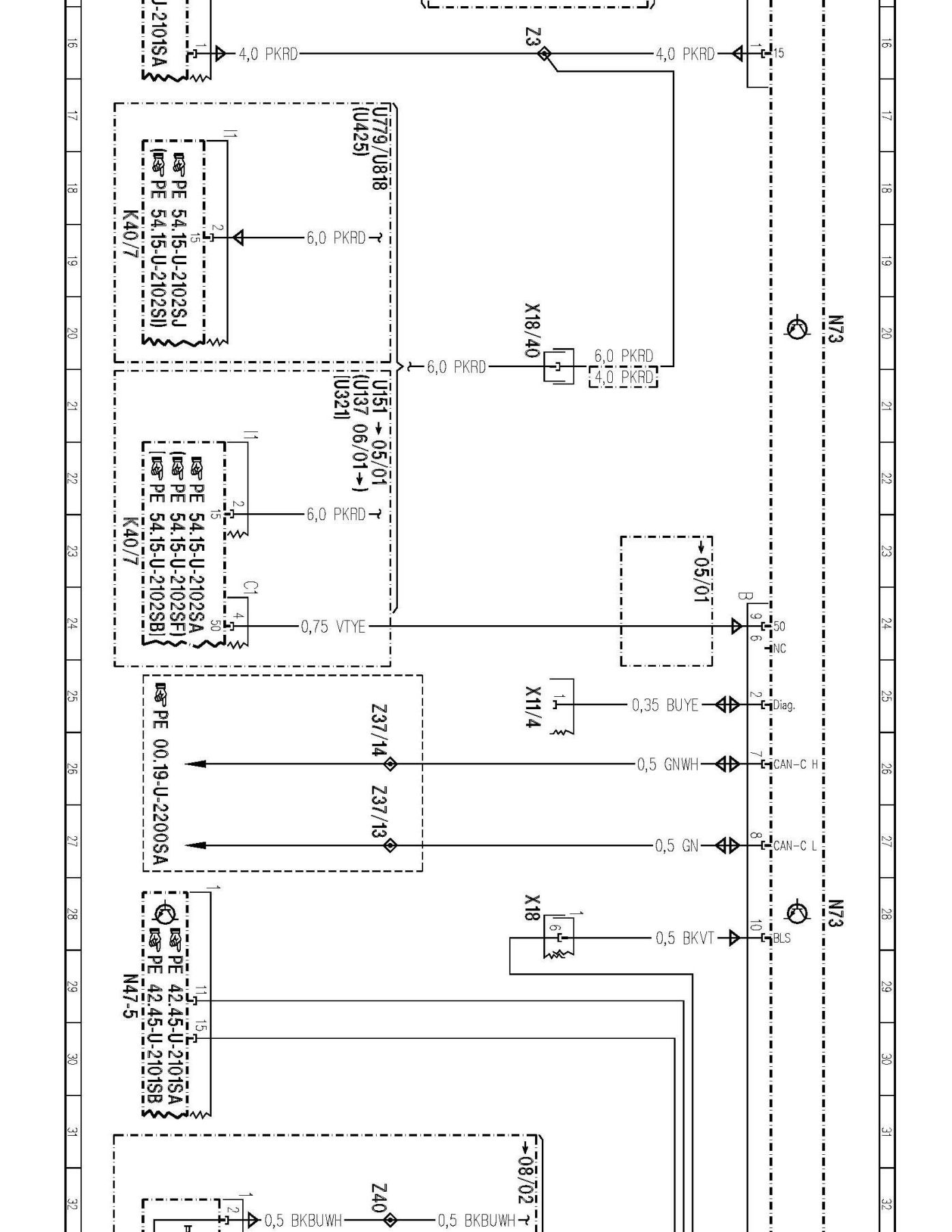

Electronic Ignition Switch (EIS) PE54.21-U-2104SA

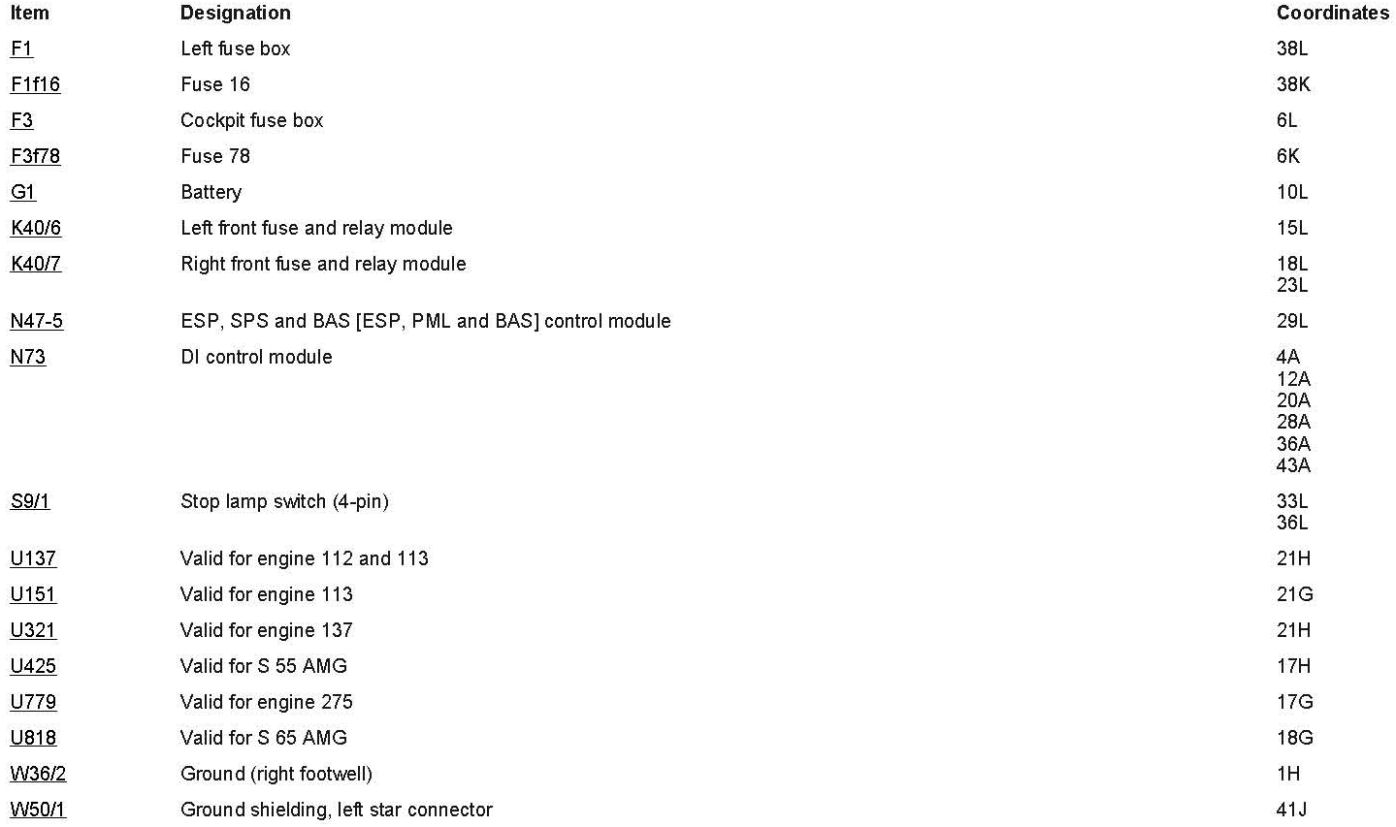

- control module N73
F1 - W50/1:

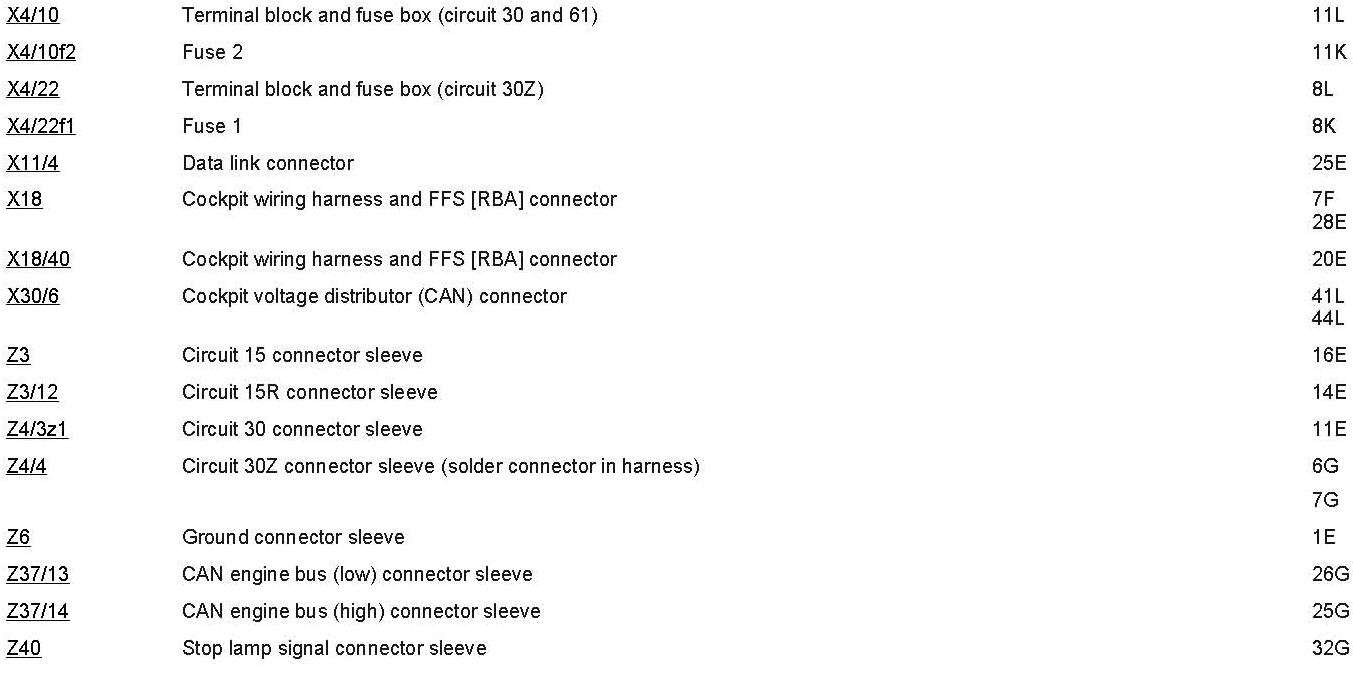

X4/10 - Z40:
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Component Locations
