Electrical Diagrams

Fuel Pump PE47.20-U-2100SA

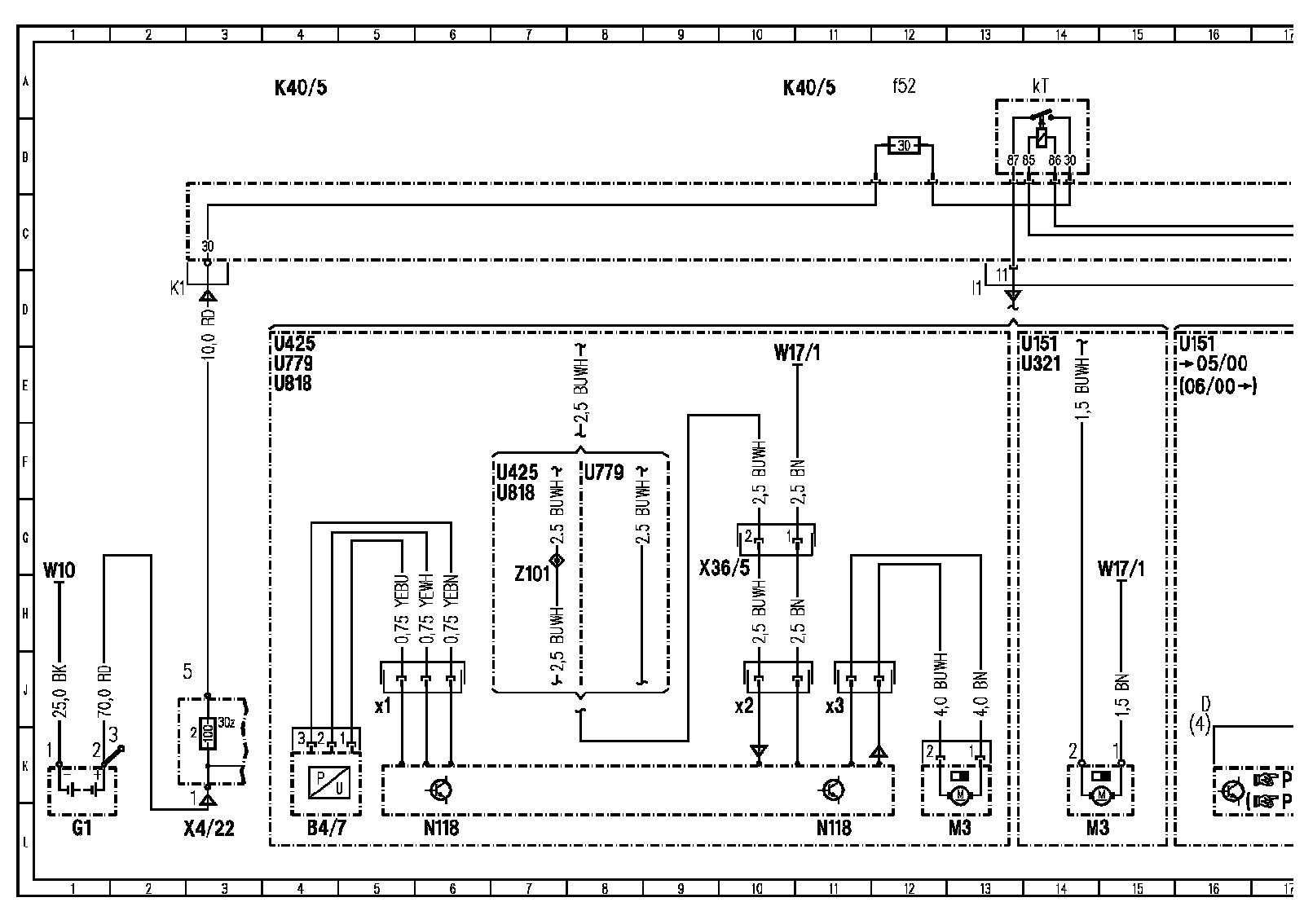

Wiring Diagram, Part 1:

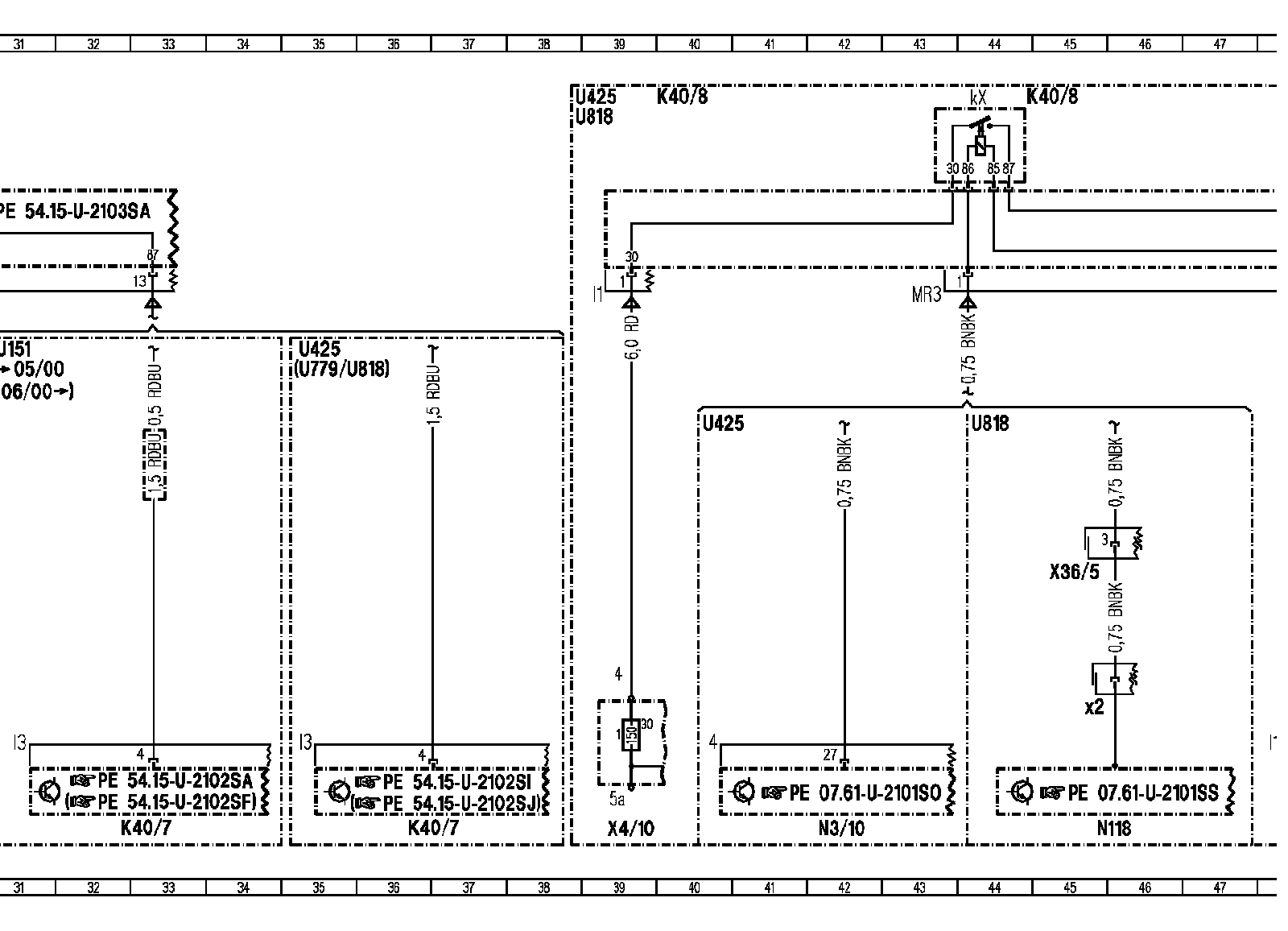

Wiring Diagram, Part 2:

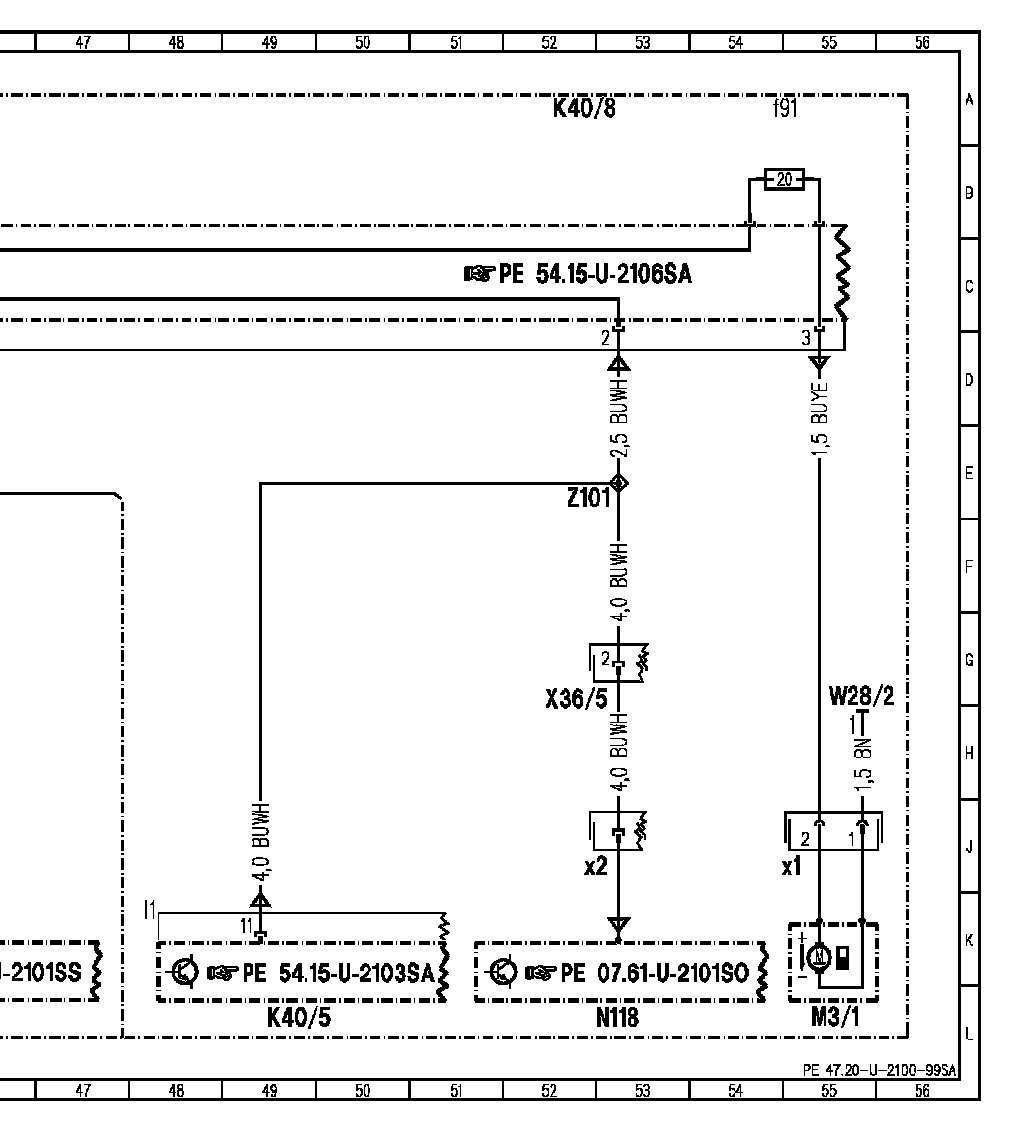

Wiring Diagram, Part 3:

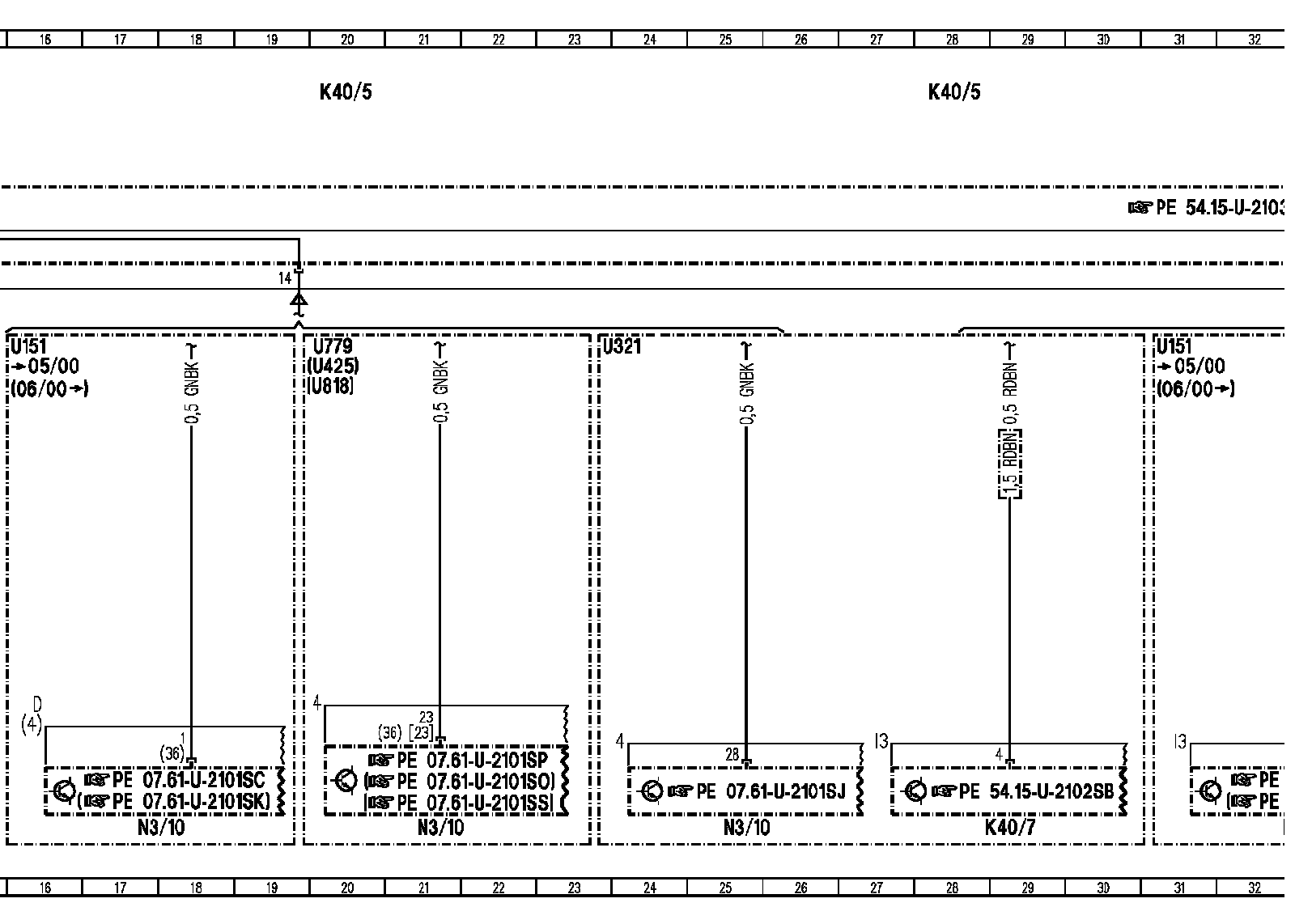

Wiring Diagram, Part 4:

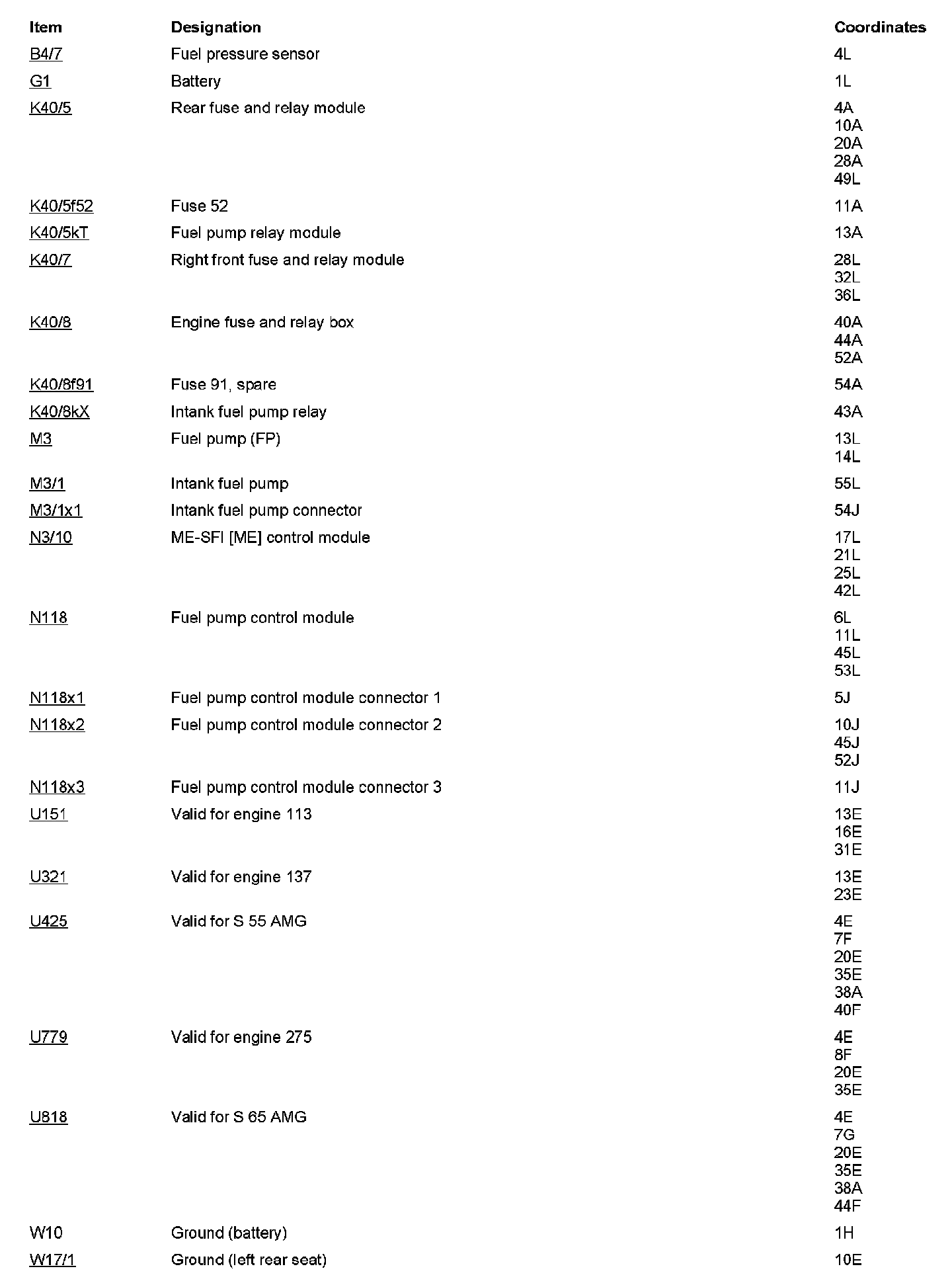

Component Description/Coordinates, B4/7 to W17/1:

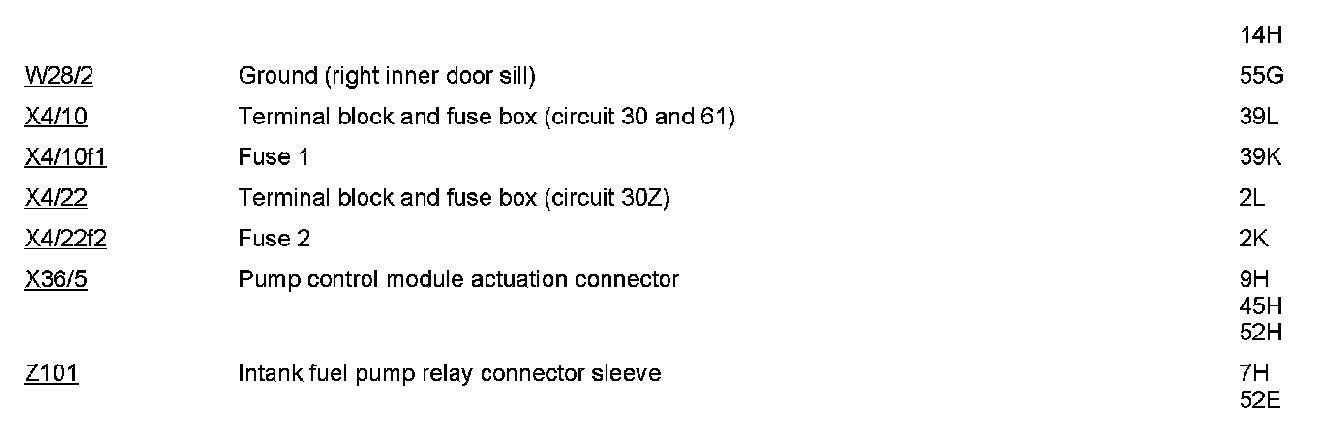

Component Description/Coordinates, W28/2 to Z101:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
