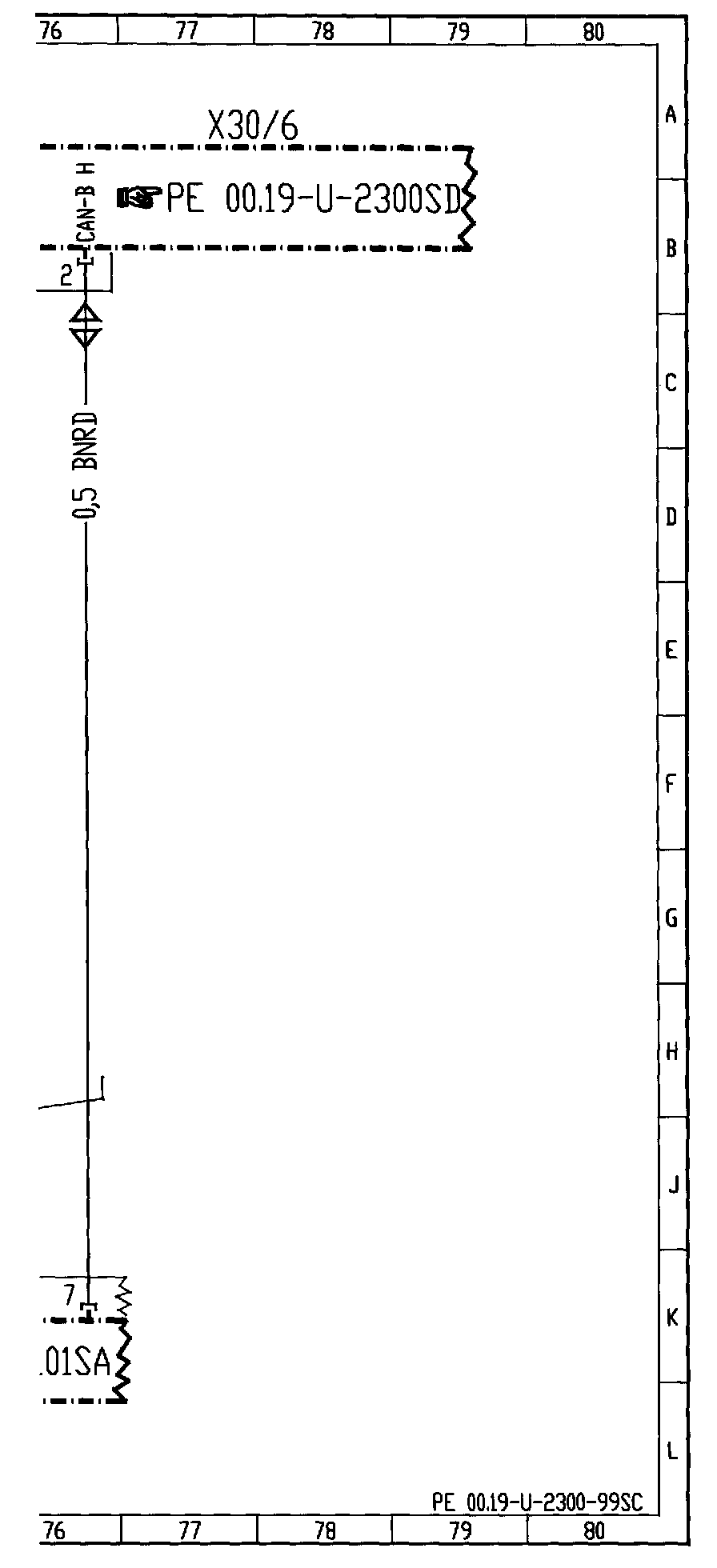

CAN Bus - Interior Compartment PE00.19-U-2300SC (Part 1)

CAN Bus - Interior Compartment PE00.19-U-2300SC (Part 1)

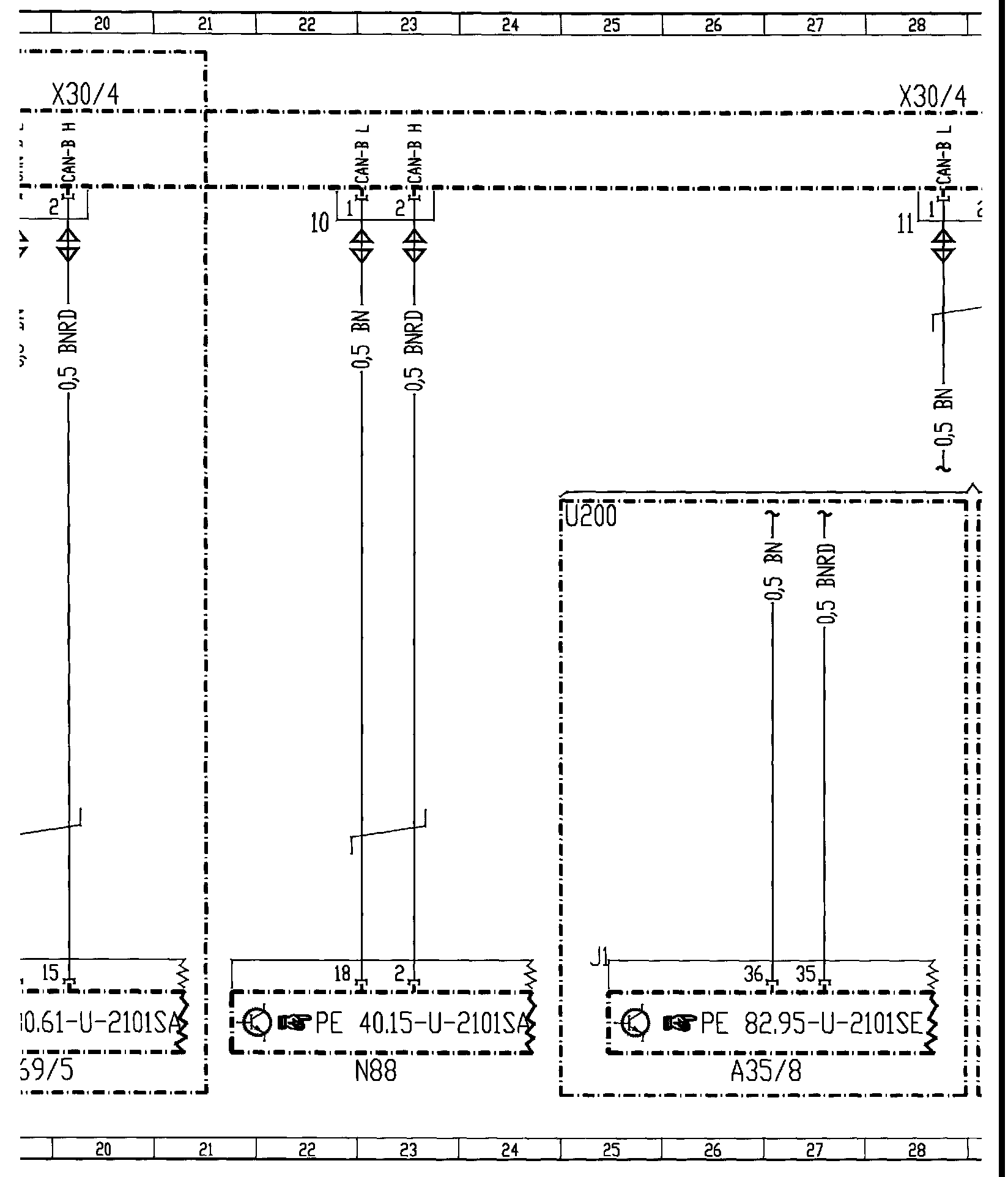

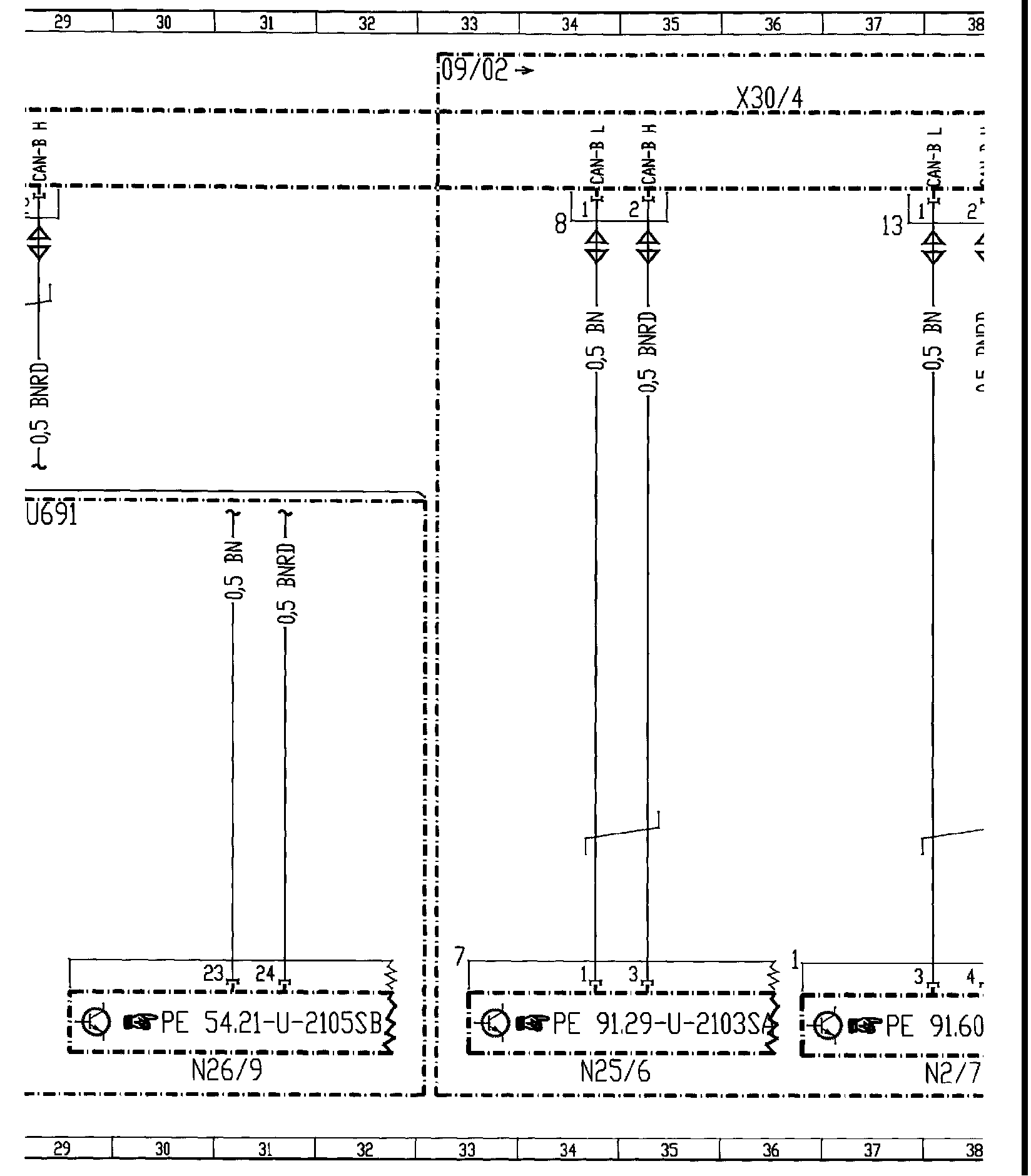

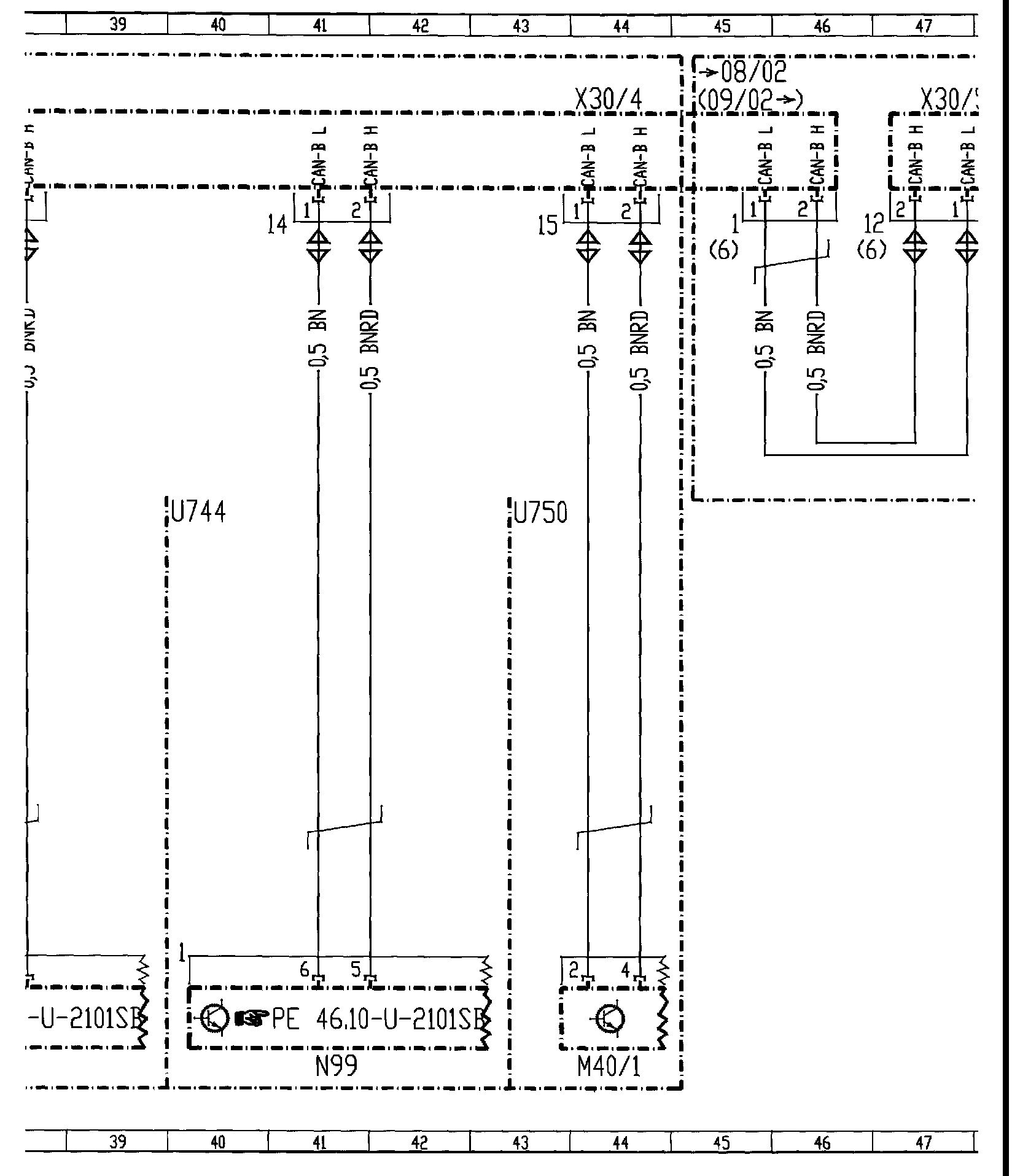

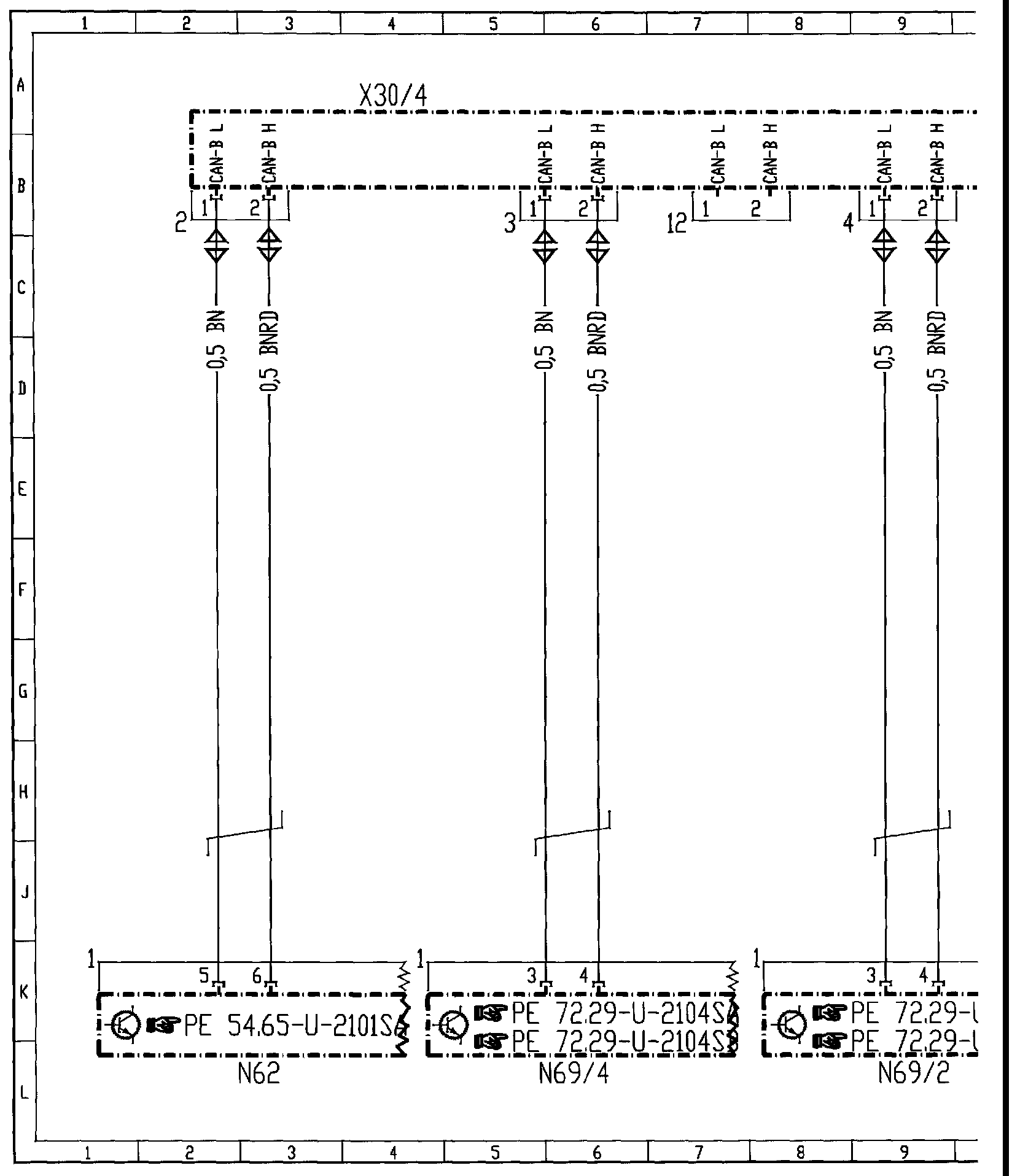

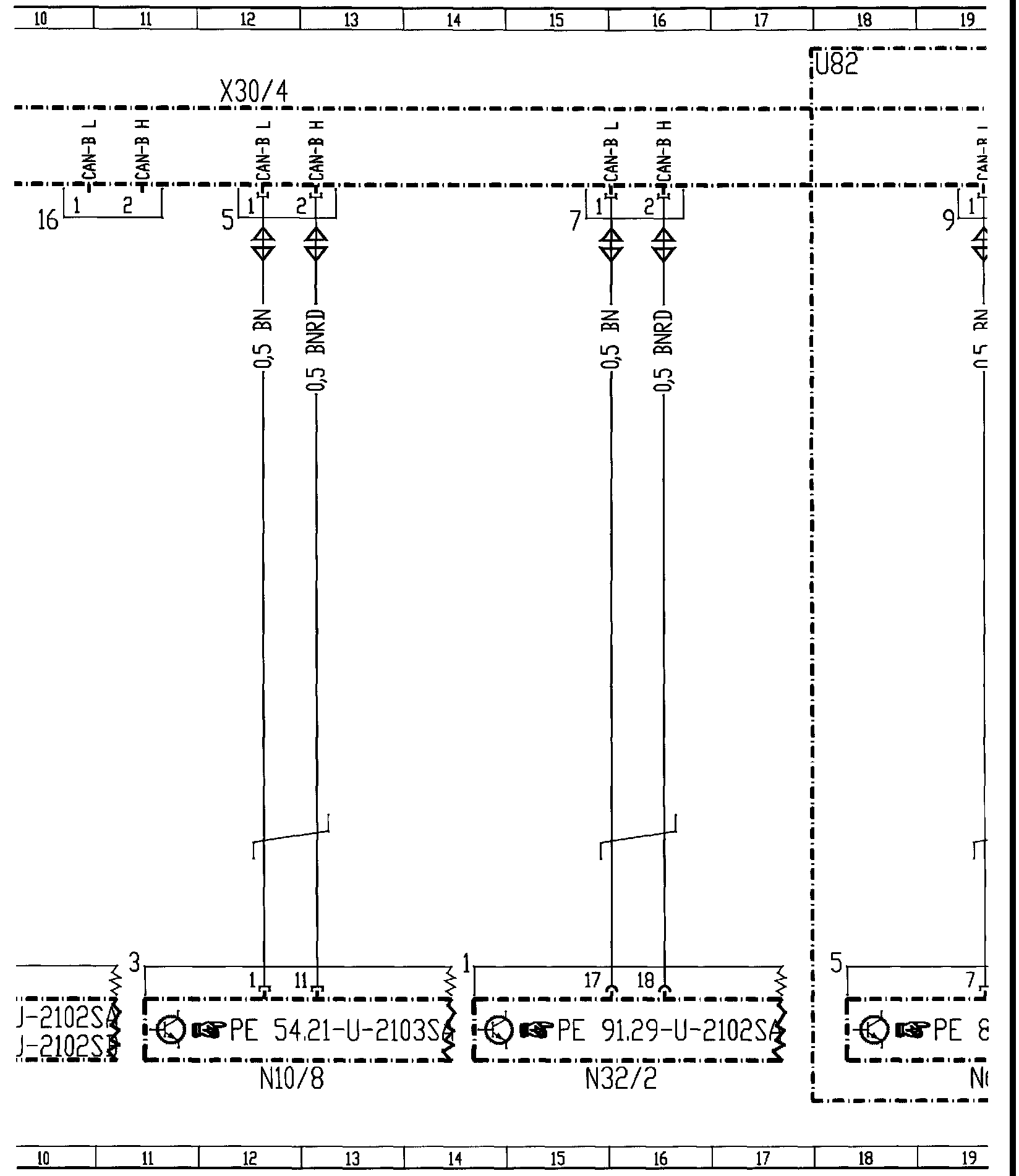

- CAN voltage distributor (X30/4)

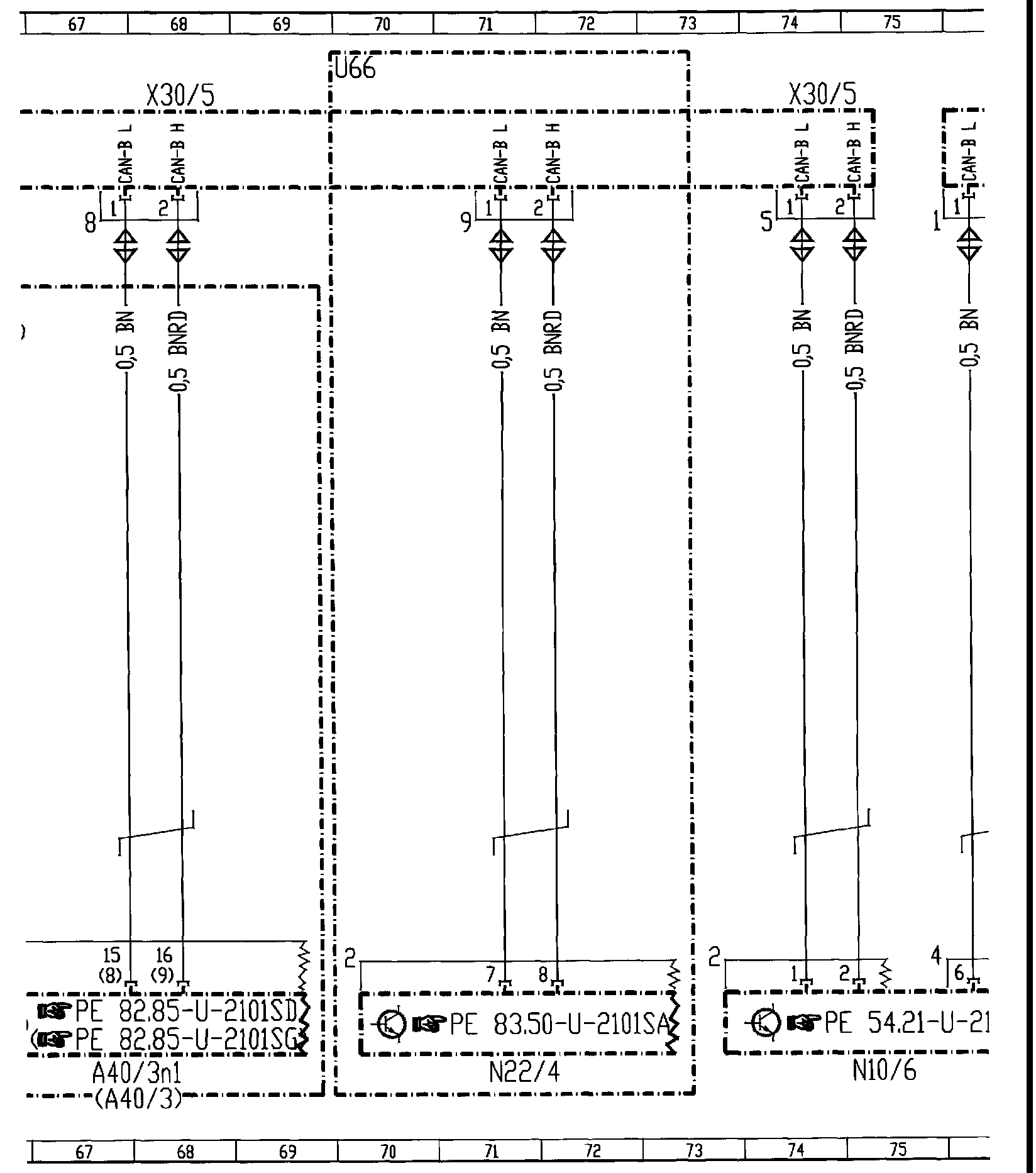

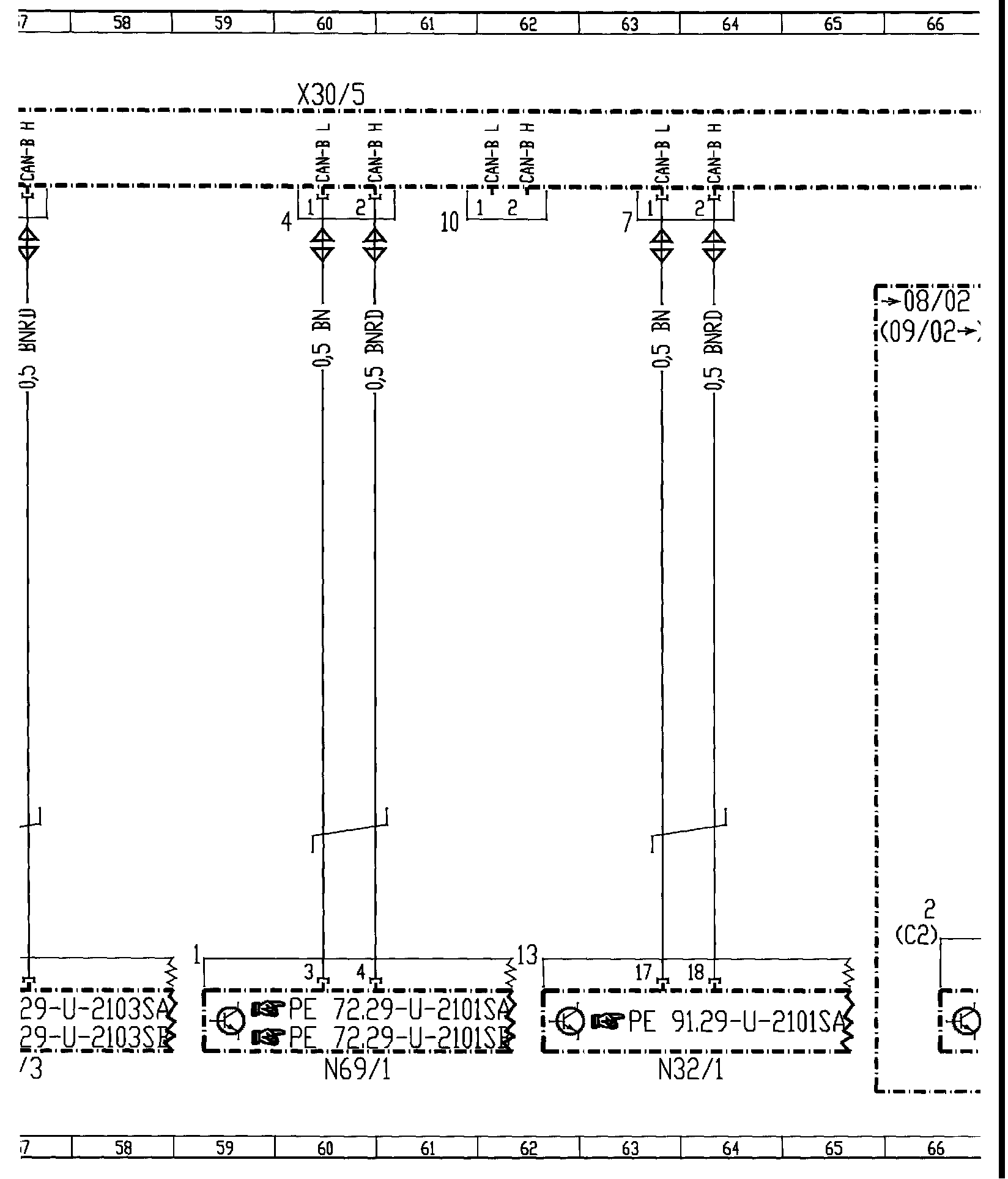

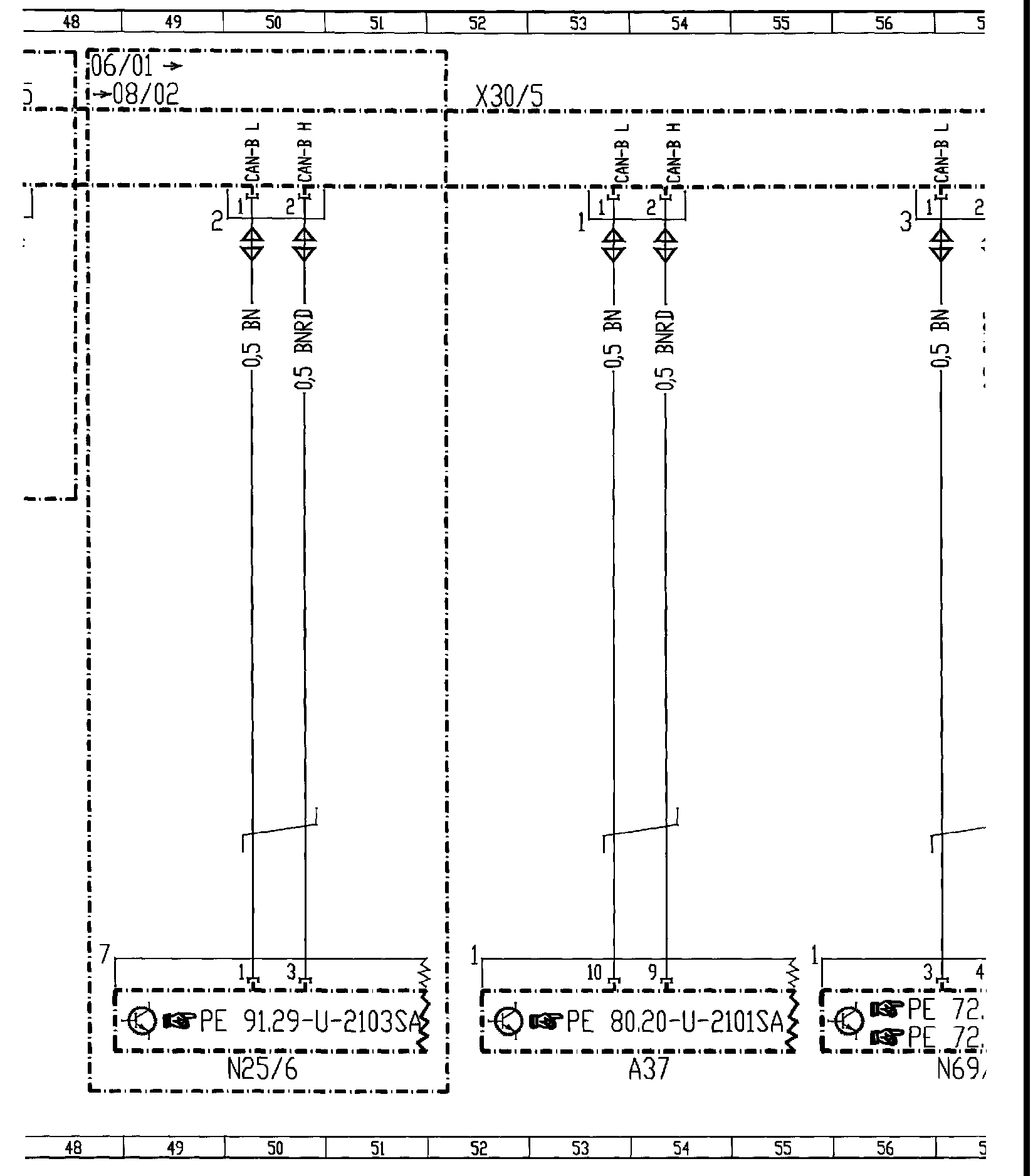

- CAN connector (X30/5)

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

CAN Bus - Interior Compartment:

(PART 1) Legend For CAN Bus - Interior Compartment:

(PART 2) Legend For CAN Bus - Interior Compartment:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
