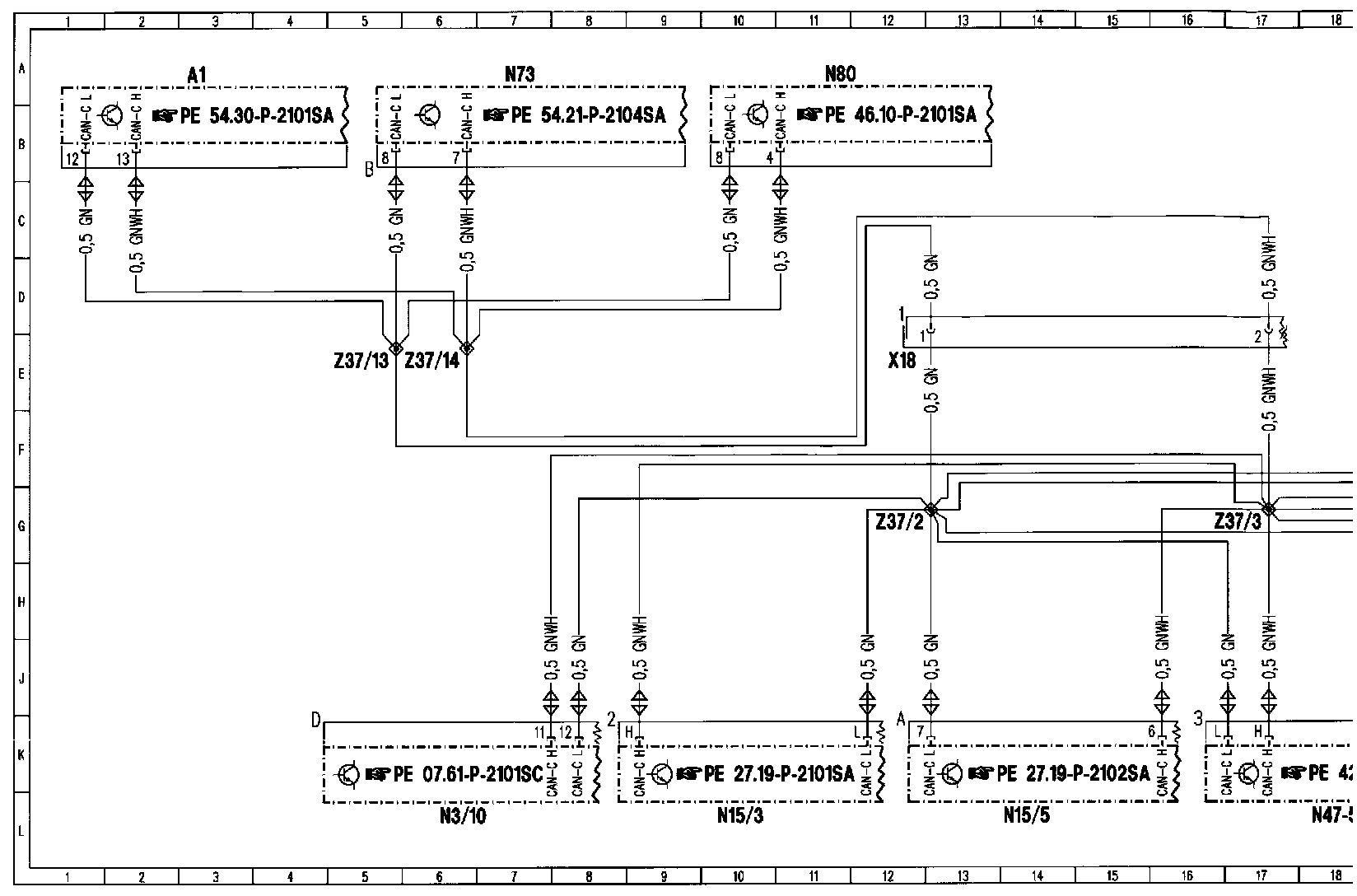

CAN Bus - Engine Compartment PE00.19-U-2200SA

PE00.19-U-2200SA CAN Bus - Engine

�:

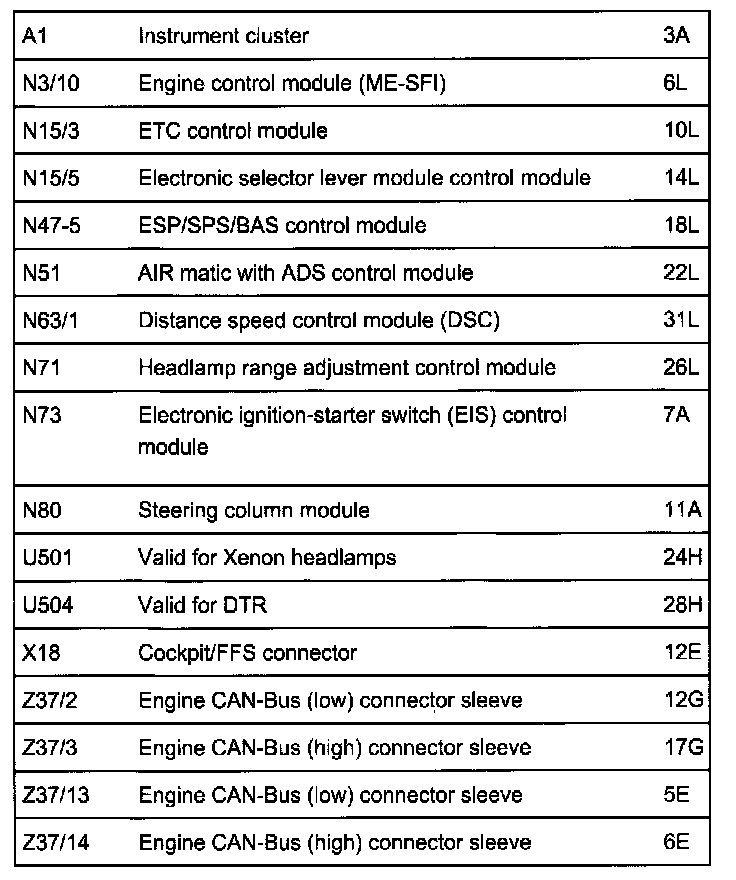

Component Grid Location:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
